hot sell small scale Peanut shell pellet production plant
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai Dalian
- T/T L/C D/P D/A Credit Card PayPal
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | BSM brand |
Model Number: | BSM series | Voltage: | Customized | Power(W): | 90kw |
Dimension(L*W*H): | 2600*1300*2300mm | Weight: | based on capacity | Certification: | CE Certificate |
Warranty: | 3 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
hot sell small scale Peanut shell pellet production plant

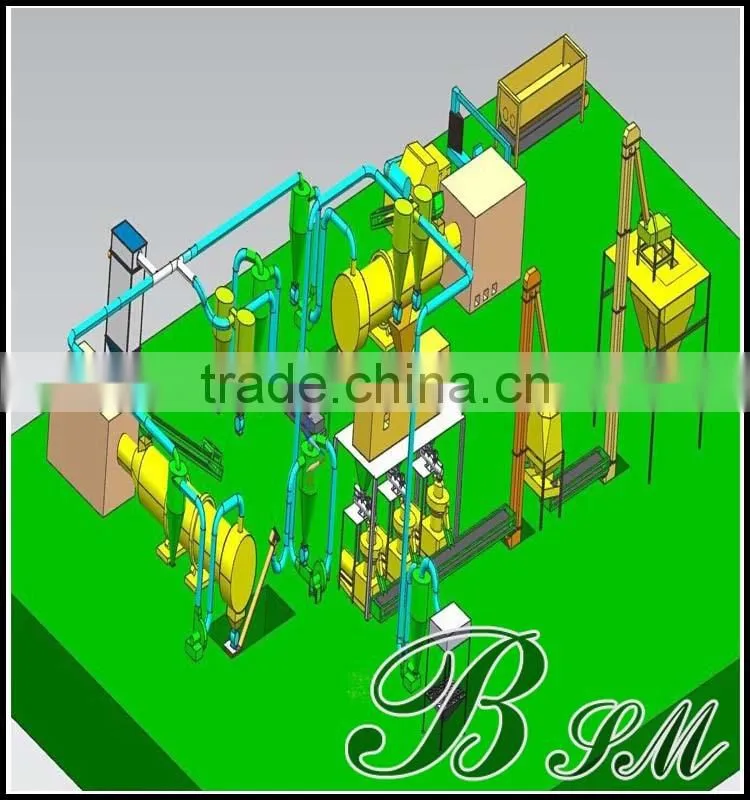

Brief introduction of complete pellet plant:
Crushing- drying - pelleting - cooling - packing
Detailed processing of pellet plant:

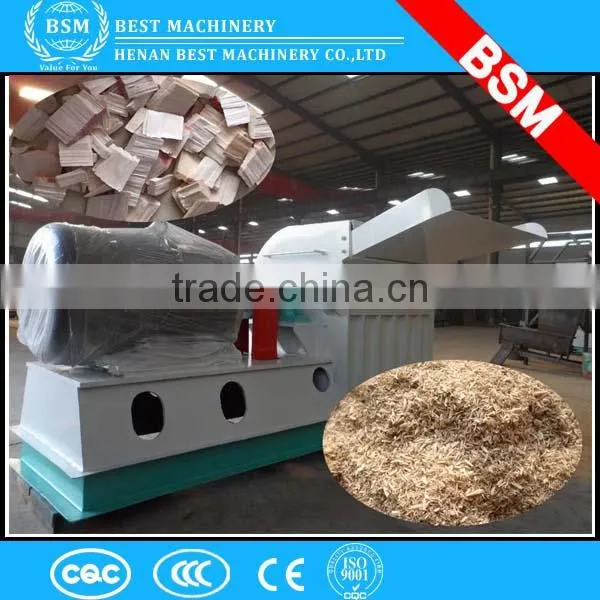

1. Crushing Process:

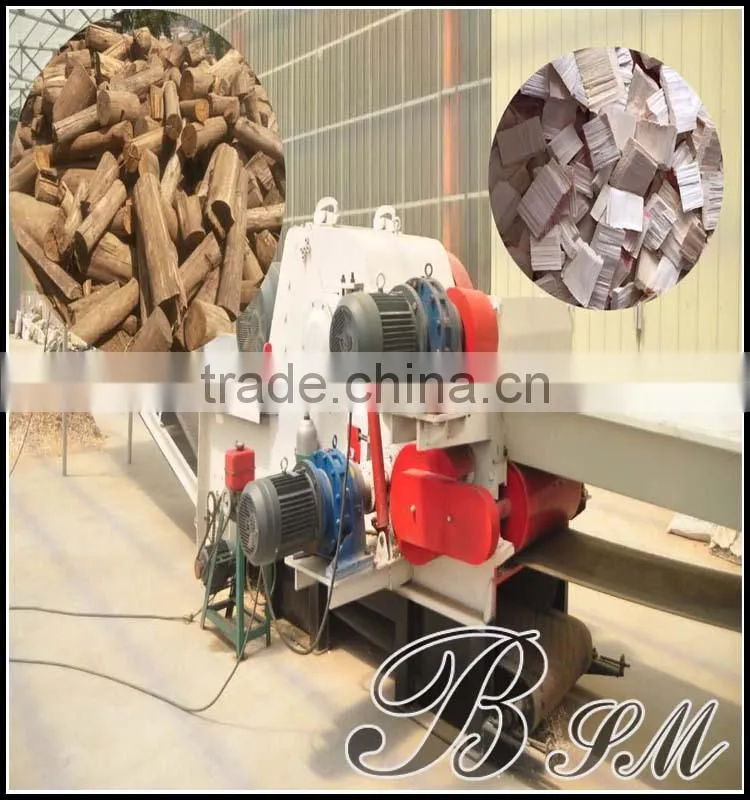

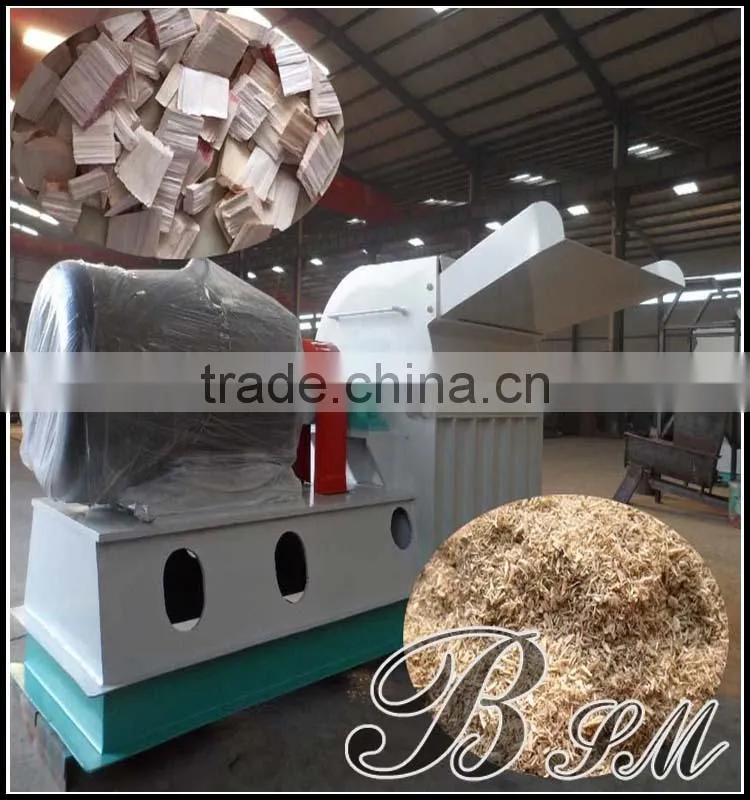

When the thickness of raw wood material is wood log, we need use the Wood Chipper to chip them into small pieces, then use hammer mill to crush the small pieces into wood powder with diameter less 5mm

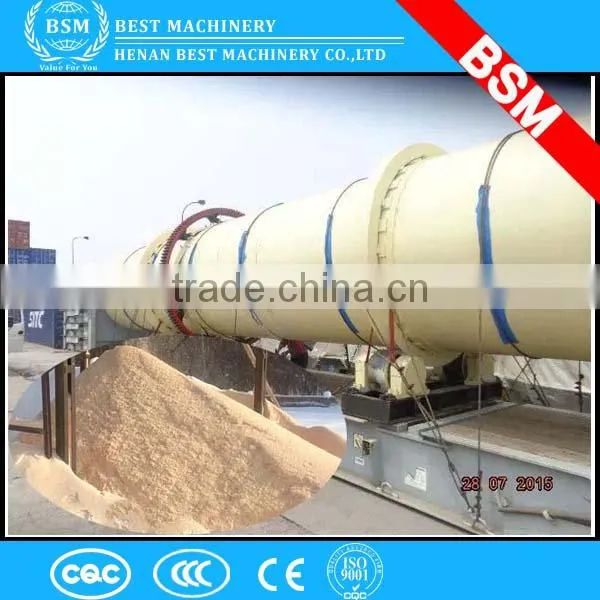

2. Drying Process:
1).The best moisture content to pelletizing is about 10-15%.

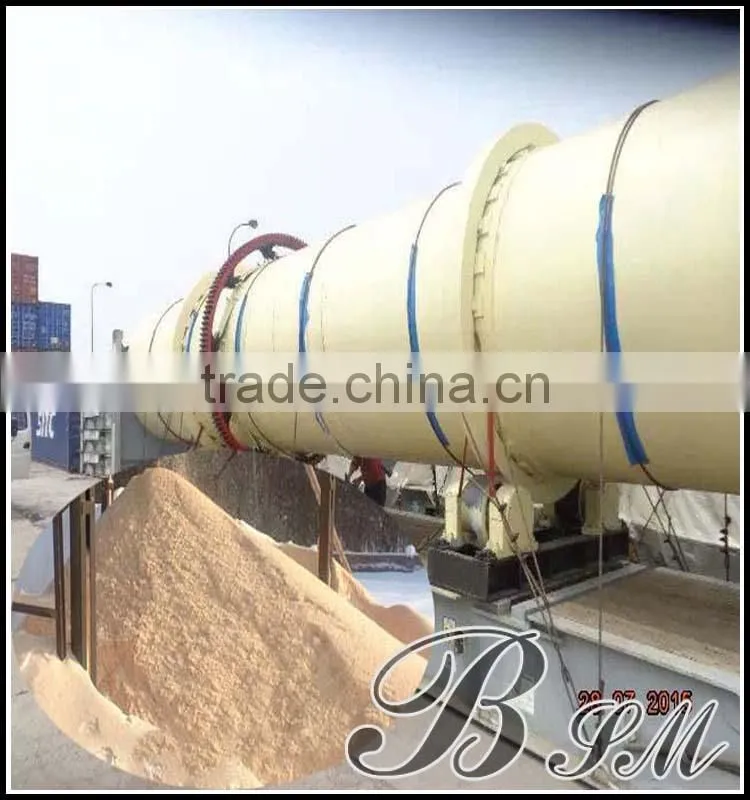

2).Our Rotary Dryer is made up of Stove and Main Rotary Dryer, which can realize to reduce the moisture from 50% to 10%.
3).Our stove is fueled by coal or biomass products, which can save electricity consumption largely.

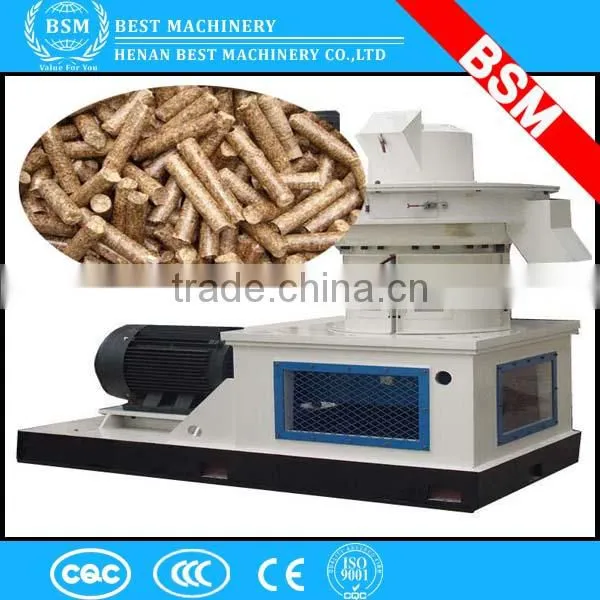

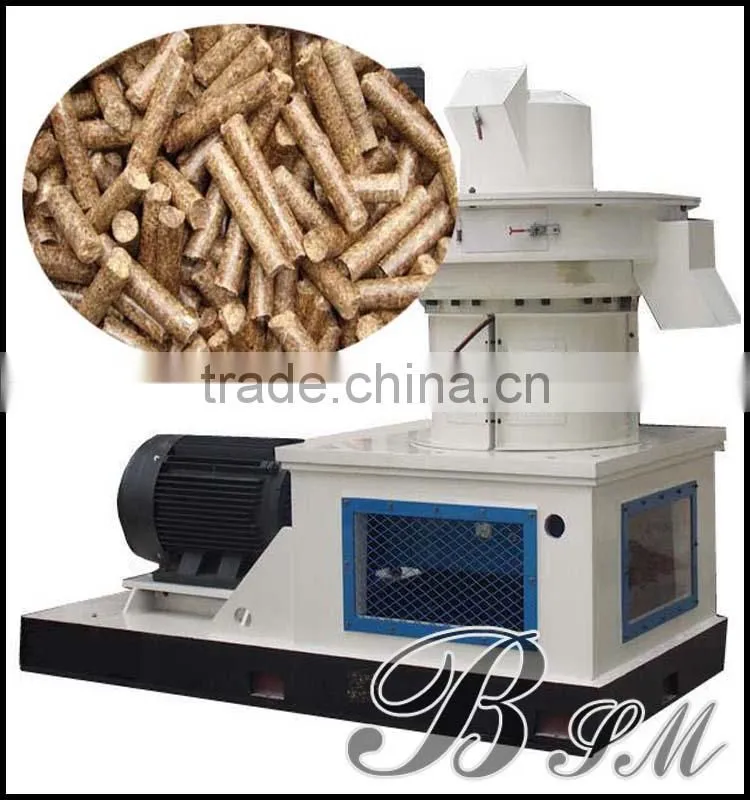

3. Pelletizing Process:
Wood Pellet Mill is the most important equipment, which have the following features:
1). Gearbox: Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period;
2). Vertical motor: Mounting hole with output shaft as the center, Equidistant distribution around, More powerful and running stability;
3). Blower system: Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam
4). Working parts: Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, improved capacity, Meanwhile assure hardness and density, The special design is 3pcs-rollers working, Increase press rate then increase capacity.
4. Cooling Process:
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 14%, so we need use Cooler to reduce about 3-4% moisture, such this the wood pellet is easy to store.

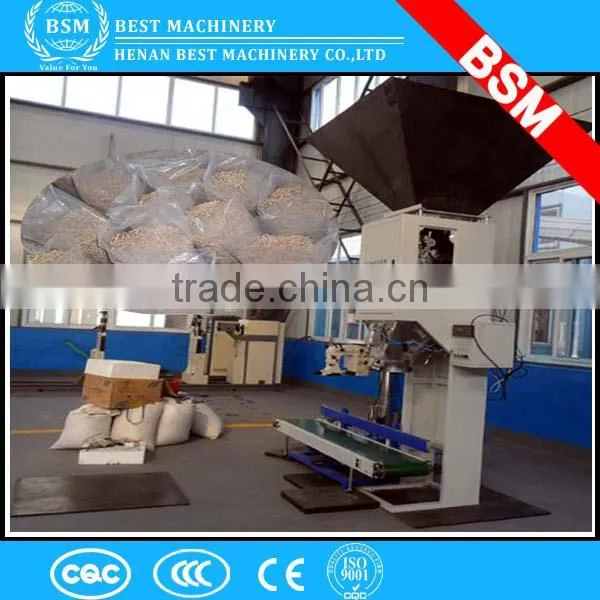

5. Packing Process:
After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic best Fully-Auto Packing Machine to you.
The following are several successful cases for your reference:
1TPH Sawdust Drying Line( Latvia)
2TPH Woodchips Drying Line( Suzhou)
2TPH Grass Drying Line (Russia)
3-4TPH Straw Pellet Line (malaysia)
3-4TPH Wood waste Pellet Line (malaysia)
3-4TPH Straw Grinding Line (Romania)
3TPH Sawdust Drying Line (Malaysia)
6-8TPH Rice Husk Pellet Line (Philippines)
10TPH Wood Chipping Line (Colombia)
Why choose BSM brand?
1.Experienced biomass and feed pellet line related supplier for over 20 years.
2.Professional sales and engineers team for your service.
3.High quality as all of the products have approved CE&ISO9001&SGS certifications
4.Use most up-to-date CNC Machine Center to ensure the quality standards.
5.Already supplied over 1,000 turn-key projects with great satisfaction.
Contact Us
- Henan Best Machinery Co., Ltd.
- Contact nameDevina Wang
- Phone86-371-60976076
- AddressWest Nongye Road and Qinling Road, Zhongyuan District, Zhengzhou, China Zhengzhou,Henan
