1.Significant features of drum rotary dryer
² High efficiency;
² Large capacity;
² Excellent motor;
² Low consumption;
² Low operating cost;
² Reasonable structure;
² Convenient for transportation.
2.Brief introduction of drum rotary dryer
v Drum rotary dryer machine is widely used for drying materials in industries like cement, mine, building materials, chemistry, food and fertilizer, etc.
v Drum rotary dryer machine comes with thermoplastic on the feeding and discharging device to control the temperature.
v Drum rotary dryer machine is mainly composed of cylinder, under frame, feeding and discharging devices, transmission device, gear cover, etc.
v Drum rotary dryer machine's manufactured by us adopts new lifting plate, which is of functions like guiding, current-sharing, and material rising.
v Drum rotary dryer machine's materials are raised and evenly drop so that they are in full contact with heat for better drying efficiency.
3.Scientific parameters of drum rotary dryer
Specification | Obliquity | Diameter (mm) | Length (mm) | Power (kw) | Capacity (t/h) | Dimensions (LxWxH, mm) | Weight (T) |
BSM1212 | 2.0-2.5 | 1200 | 12000 | 7.5 | 1-2 | 13350×1600×2200 | 8 |
BSM1515 | 2.0--2.5 | 1500 | 15000 | 15 | 2-5 | 16350×1900×2500 | 20 |
BSM1818 | 2.0--2.5 | 1800 | 18000 | 22 | 5-8 | 19350×2200×2800 | 28.8 |
BSM2020 | 2.0--2.5 | 2000 | 20000 | 30 | 8-10 | 21350×2600×3200 | 40 |
BSM2222 | 2.0--2.5 | 2200 | 22000 | 45 | 10-14 | 23350×2800×3400 | 45 |
BSM2424 | 2.0--2.5 | 2400 | 24000 | 55 | 14-16 | 25600×3220×3900 | 52 |
BSM2828 | 2.0--2.5 | 2800 | 28000 | 110 | 16-20 | 29700×3500×4800 | 80 |
4.Working Principle of drum rotary dryer
Ø The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder.
Ø Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere.
Ø Then the materials would be dried. Rotary dryer is used to dry slag, clay, limestone,
Ø It is mainly used for cement, chemical, metallurgical, building materials industries.
Ø Its advantages are as follows: high dry capacity, smooth rotation, low energy consumption, easy operation, high output and so on.
5.Detailed picture description of drum rotary dryer

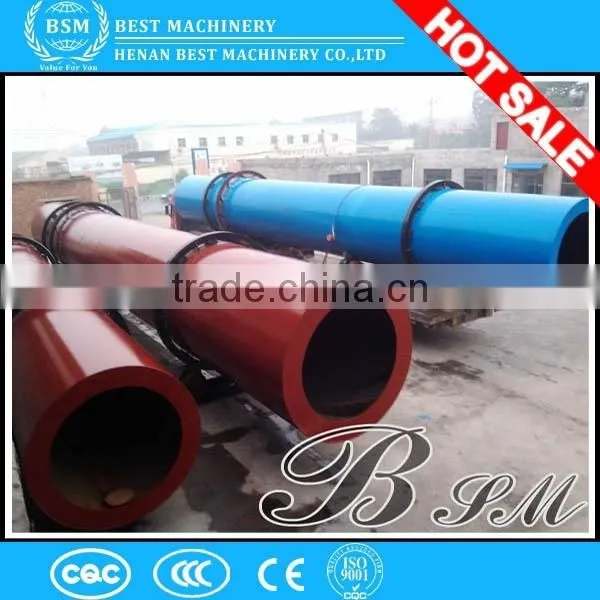

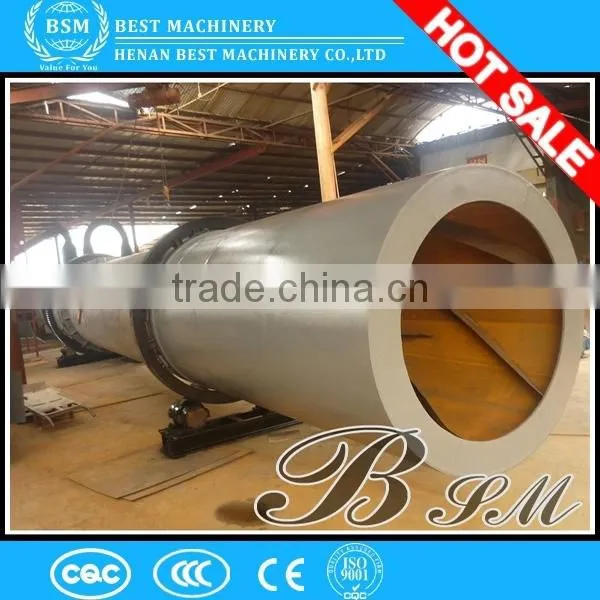

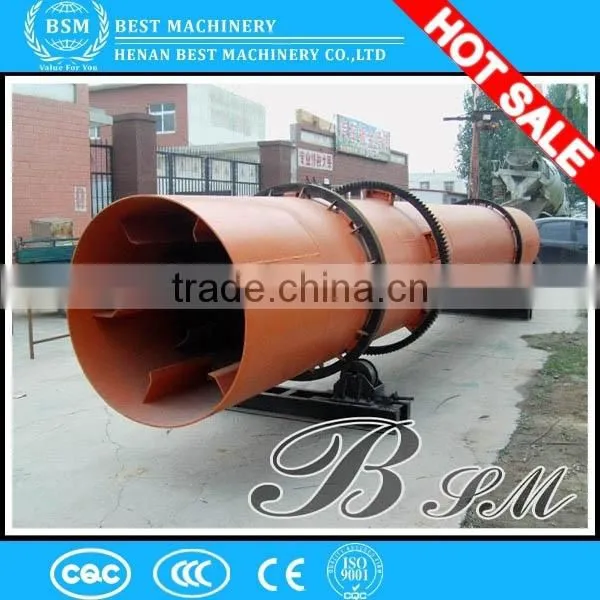

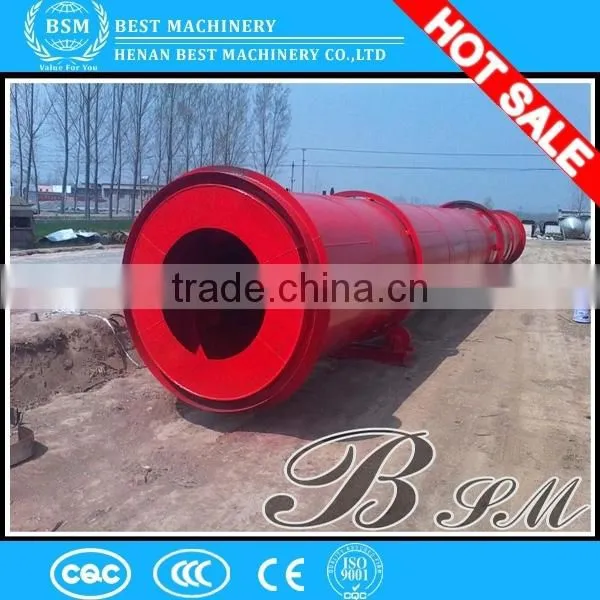

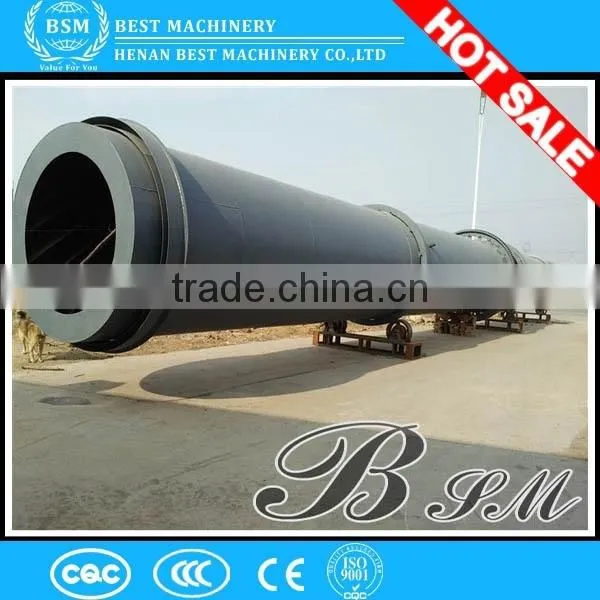

l Picture of drum rotary dryer machine
l Picture of drum rotary dryer inner structure
l Picture of drum rotary dryer working principle
l Picture of drum rotary dryer raw material
l Picture of drum rotary dryer final product
6.Convenient transportation of drum rotary dryer
♦ Export standard wooden case for a single machine
♦ Shipping mark on the wooden case
♦ Packed in wooden box and then load on the container
7.Best service for you
♥ 24 hours on-line service for you;
♥ Professional person reply your questions;
♥ Perfect and careful after-sale service;
♥ Fast delivery for you;
♥ Two years warranty for you;
8.Qusetion you may ask
1. How about engineers service oversea?
Engineers available to service machinery overseas;
2. How to use the machine?
We will supply customer the installation catalogue or video online;
3. How about the sample machines for testing?
Sample sending for testing is welcomed, but the freight of the sample should taken by the consignee.
4. How about the guarantee period?
Two years.
