Help CenterBio-fuel Cheap Price Biomass Industrial Sawdust Dryer Drying Machine
Related Products
-
Thailand Widely Used Sawdust Air Flow Dyer Machine for SaleUS$ 10,000 - 15,000MOQ: 1 Set -
BSM Brand Good Quality Biomass Dryer, Air Dry Machine, Hot Air Drying MachineUS$ 8,000 - 12,000MOQ: 1 Set
-
Air-flowing Wood Sawdust Dryer/ Sawdust Flash Dryer MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
CE Approved High Efficiency Best Price Air Flow Type Dryer for SawdustUS$ 10,000 - 15,000MOQ: 1 Set
-
Small Capacity Sawdust Drying Machine for Making PelletUS$ 8,000 - 12,000MOQ: 1 Set
bio-fuel cheap price biomass industrial sawdust dryer drying machine

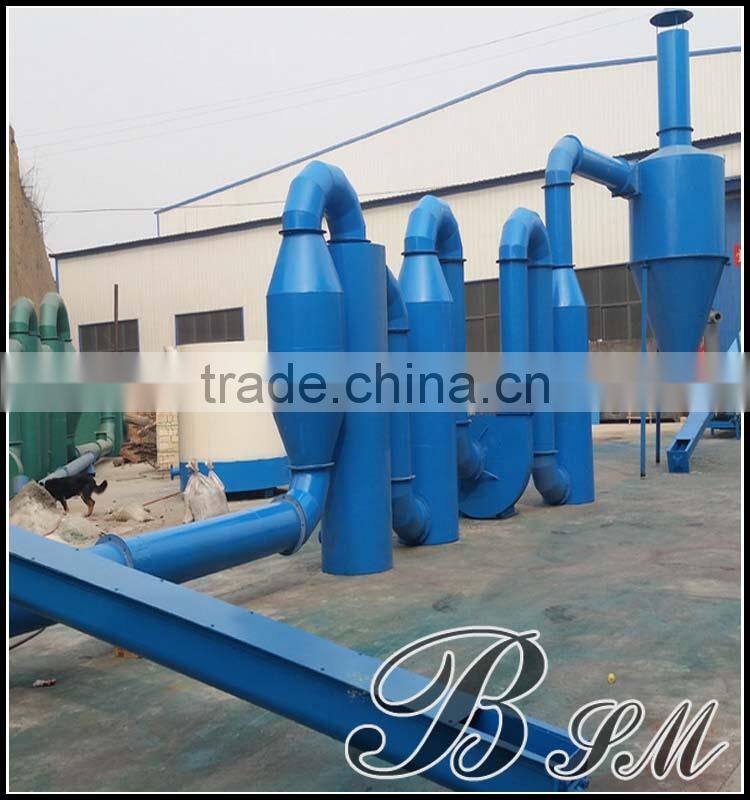

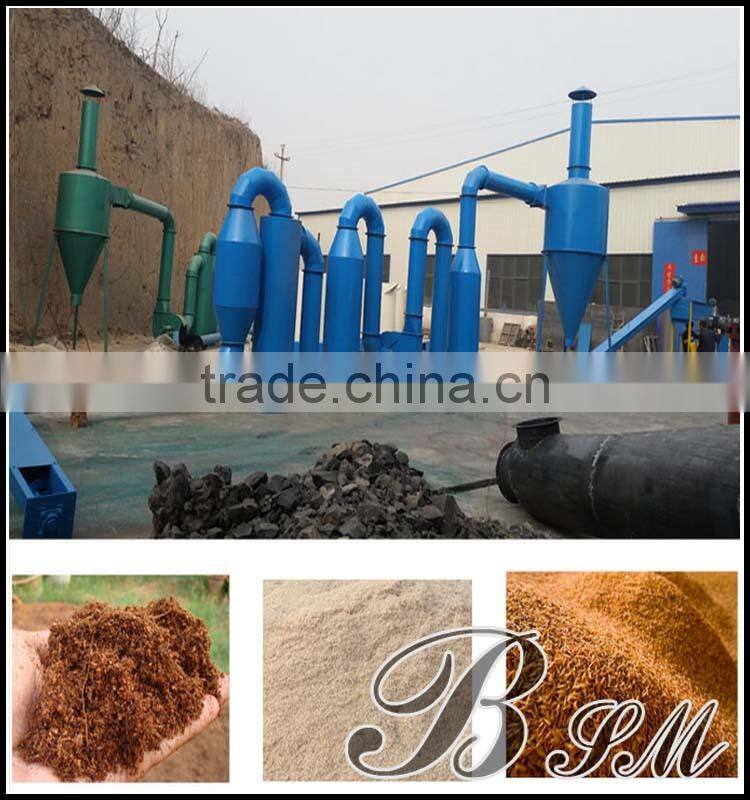

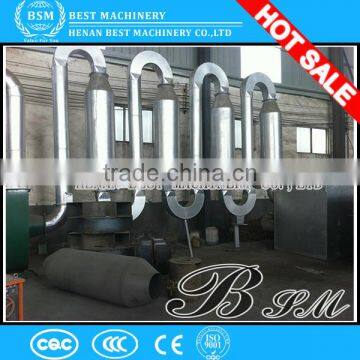

Main structure of Airflow Dryer
Main parts:
1. Stove 2. Inlet / Hopper 3. Cleaning hole 4. Drying Tank / Buffer 5. Drying pipe 6. Fan 7. cyclone separator 8. exhaust pipe.
Other accessory equipments:
Moisture tester, Conveyor, Temperature tester, Air lock, Electric control cabinet.
Brief Introduction of Airflow Dryer
1. Saw dust Air steam dryer also knows as flash dryer/airflow dryer.
2. it is applied for the solid raw material which has flow ability.
3. We have the special design for drying high moisture fiber raw material. Application Initial moisture below 50% .
Working principle of airflow dryer machine:
1.Wet materials are input into the hopper.

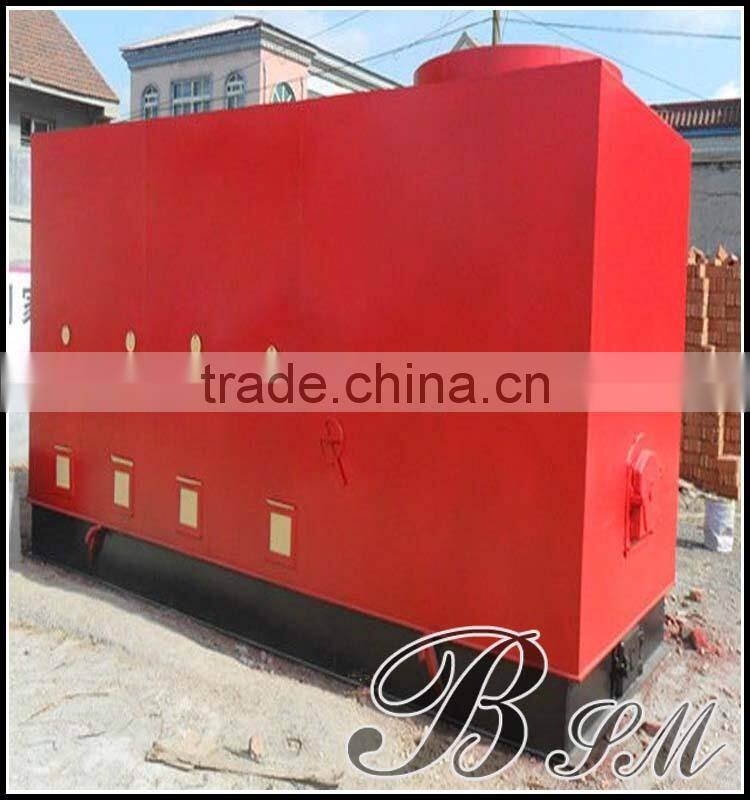

2.The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly.
3.And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer.
Machine advantages of airflow dryer:
1).For raw materials with heavy humidity which it is above 12%,you need to install a dryer before further processing.
2).It is professionally designed for drying different kinds of wood sawdust.It has advantaes of low cost,low consumption,high capacity ,easy operation and maintenance.
3).Regarding BHG-100 series,it is suitable to process materials which moisture content between 35%-55%.
4).All of round places can be adjusted to any angle of 360 degree,according to operation request. The clients can change the angle of dryers base on the production field.
Technical parameters of airflow dryer machine
Model |
Motor |
Capacity t/h |
remark |
BHG400 |
11kw |
1-2 |
Contain stove and burning room for free |
BHG500 |
15kw |
2-3 |
|
BHG600 |
18.5kw |
3-4 |
|
BHG700 |
22kw |
3.5-4 |
|
BHG800 |
30kw |
4-6 |
|
BHG1000 |
55kw |
7-10 |
Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully;
2.Make the suitabe project as the customer requirement and make sure the machine is suitable for the material;
Sale service:
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
