India High density wood sawdust processing briquette making machine
1.Detail introduction of briquette machine
1) Our machines is newly developed energy saving equipment.
2) The finished products are smooth in surface and shapely in posture.
3) Its hardness is closely to European standard. Pellet fuel is convenient in the process of manufacturing, packing, storing and transporting as a clean renewable energy.
4) This is a kind of pellet making machine is easy to operate and maintain with lower price.
5) With the fast development of feeding animals industry and biomass energy saving project, this kind machine becomes very popular.
6) Since it not only can process the feed stuff for animals, such as feed for fish,chicken and pig, but also can process the waste biomass materials to wood pellet. The final wood pellet can be as green fuel in pellet stove or boiler.
2.Picture show of briquette machine
3.Standard accessories of briquette machine
4.Technical parameter of briquette machine
Model |
BSM800 |
BSM1000 |
BSM1500 |
BSM2000 |
Power(Kw) |
30 |
37 |
45 |
55 |
Capacity (t/h) |
0.5~0.8 |
0.7~1.0 |
1.0~1.5 |
1.5~2 |
Finished product size |
ø30 |
|||
Models quantity |
26holes |
58holes |
52holes |
60holes |
Forming density(g/cm3) |
0.8~1.4 |
|||
Hearting power (Kw) |
2 |
4 |
||
Vibrator power(Kw) |
0.25 |
|||
Rate of material moisture |
20~35% |
|||
Length of the material(mm) |
2~60 |
|||
Rate of the finished products moisture |
≤15% |
|||
Size (mm) |
1600*1300*1900mm |
2450*1400*2000mm |
||
Weight |
1.3T |
1.5T |
2.4T |
2.6T |
5. Working theory of briquette machine
Sawdust Briquette machine uses a large screw to grind, compress and extrude the biomass /fiber raw material into briquettes. The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature The fiber raw material contains a large amount of lignin and fibrin. As the lignin doesn’t have dissolving point but only softening point, when temperature reaches 70 to 110°C, the hot water soluble substance in lignin begins to dissolve and at 200 to 300°C, it begins to soften. At this point, when posed pressure, the lignin can stick together with fibers and cement with adjacent particles. The briquette making technique is to use this features of the plants and through compression to mold.
6.Benifits of choosing our briquette machine
1) Easy to transport and store as densified product
2) Better solution to the problem of residue disposal
3) Uniform in size and quality as a kind of biofuel briquette
4) Reduce excess deforestation by providing a substitute for fuel wood
5) After wood briquette carbonization could get charcoal for BBQ

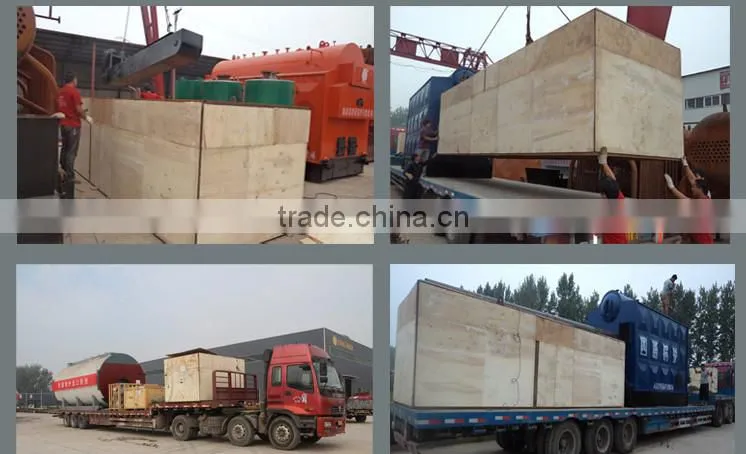

7.Our delivery service
we will pack all machines with wooden case and iron case with international standard.
8.Our company brief introduction
Who we are?
Henan Best Machinery Co,Ltd is a professional manufacturing of fertilizer machinery, we have years of experience of exporting in this field.
What we do?
Our business scope covers the equipment manufacture, installation, commission and personal training.We can offer various kinds of machine such as pellet mill, animal feed pellet mill, turn-key production line,pellet packing machine,crush machine,pellet making production line,wood hammer crusher mill, drum wood chipper, wood log chipper and so on. All of these include the large-scale and the household type.
How do we do?
Requirements from customer---design---produce---shipping---installation---test and train your workers,we can make turn-key project to save your time and investment.
We insist on the idea of “Quality first, credibility oriented, service highest” to take the leading position in this field. Our products has already exported to many countries including Peru, Russia, South Africa, Canada, Greece, Sweden, Indonesia, Thailand, Vietnam, Dubai, Malaysia etc. We are willing to set up a good relationship with customer all over the world.
9.Our first-rated sale service
Are you confusing as below?
Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A:We are alibaba legitimate certification company (VIP), and we support payment terms: L/C.Escrow, to ensure your safety.
Q:There are too many models, i don't know which one to choose.
A: Welcome to contact us through TradeManager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours.
Q: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before sign in, please cfm product undamaged, otherwise, pls contact with us within 2days, we've bought insurance for you, we or shipping company will be responsible!
