Help CenterBestselling! High Quality Hexsteel Wire Mesh
Related Products

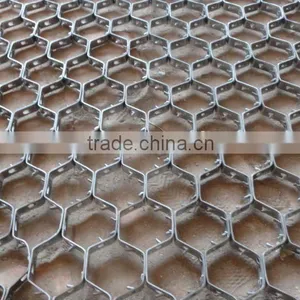

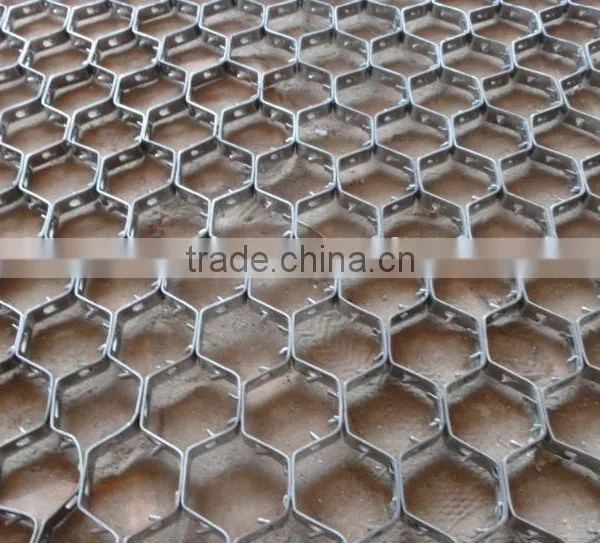

Hexsteel is a an unique honeycombed steel designed to provide excellent retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion.
Since Hesteel’s flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration.
Application
Process plant which is subject to the passage of erosive gas streams, especially at high temperature, benefit by cladding with Hexmetal infilled with erosion resistant refractories. Typical applications include Cyclones, Flue Gas Lines, Reactor Vessels, Windboxes, Fan Casings, Burner Quarls: in fact any vessel or section that is subject to erosion or abrasion.
Specification
Material |
A3F 0Cr13 1Cr13 1Cr17 0Cr18Ni9 SS321 SS316L SS310S |
Material thickness |
1.0mm/1.2mm/1.5mm/1.8mm/2.0mm/2.5mm/3.0mm |
Product thickness |
10mm-60mm |
Mesh size |
40mm,48mm,50mm,60mm,80mm,100mm |
Panel size |
0.96mx1.05m(according to the raw material size) |
Note |
Customers’ other requirement is available for us |
