Home > Construction & Decoration > Decoration Materials > Sandwich Panel > Produce Slope Stabilization Mesh

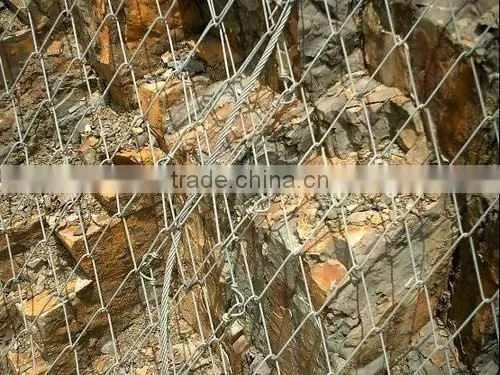

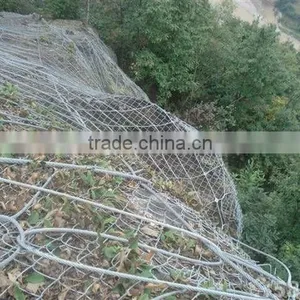

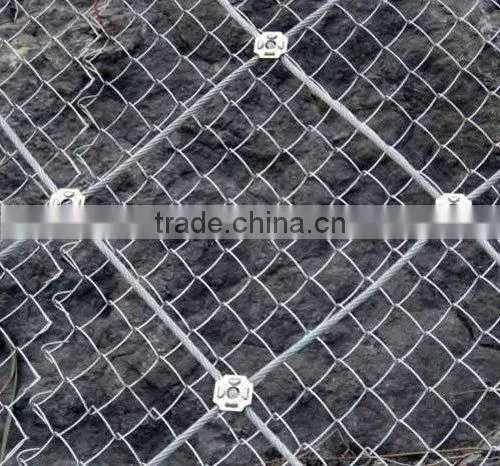

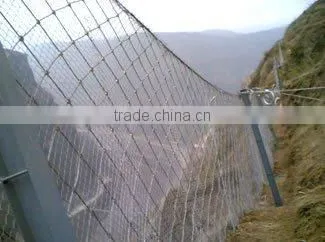

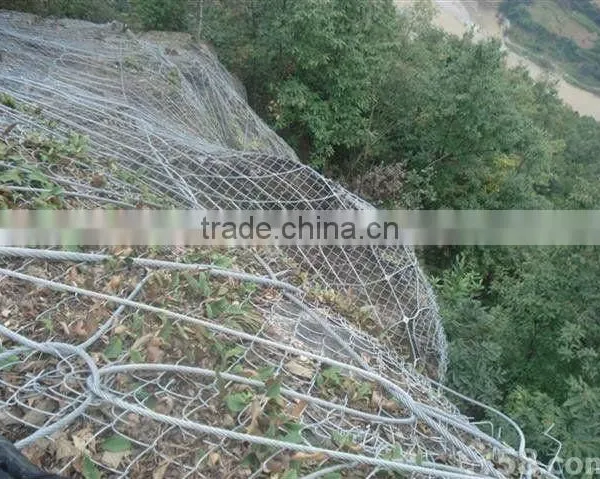

Produce Slope Stabilization Mesh

Name: Produce Slope Stabilization Mesh
Brand: yahot
SKU: 140360012

Produce Slope Stabilization Mesh thumbnail-1

Produce Slope Stabilization Mesh photo-1

US$ 1 - 10 MOQ: 100 Rolls

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

yahot

Model Number:

YH-112

Contact Supplier Request Quote Chat Now

Hebei Yahot Import & Export Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tian jin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name yahot

Model Number YH-112

Material Zinc Alloy

SNS Flexible Protection System, Slope Stabilization Mesh System

Flexible high-strength steel wire netting (diamond-shaped steel wire mesh, ring mesh, high-strength steel wire grid) as a major component of protection system is against the rock slope collapsed, dropped, such as flyrock blasting. With the technology development and application, improving the usage of construction technology, standard modular operation, Slope Stabilization Mesh System have been applied Slope Stabilization Mesh System is designed by the latest international standard of rock slope protection system. Compared with traditional construction methods, the system has overcomed many rigid construction defects, and is shorten the duration and cost of construction. The whole system is composed of high-strength steel wire, bolt and other installation components.

Slope Stabilization Mesh System Component & Characteristic
Type	Mesh Type	Structure Configure	Function
GAR1 Common Simple Type	Steel Wire Netting	Edge Steel Wire Anchor Rope+ Support Rope t + Oversewed Rope(D0/08/300 Steel netting + Anchor Rope+ Horizontal Supported Rope	Protection, Restriction on the slope of rocks movement,Against the collapse
GAR2 Common Type	Steel Wire Netting	System Steel Anchor Rope+ Support Rope + Oversewed Rope,Concave Orifice+ Anchor fixed + Horizontal Support Rope (2-?16)+Steel Wire Netting(?08/300/4*4)+Oversewed Rope(8)	Slope Reinforcement,Protect from collapse and weathering.
GPS1 Common Use	Steel Wire Netting+ Steel Wire Grid	Same to GAR1+ Steel Wire Grid (GAR1+SO/2.2/50 Iron Grid)	Same To GAR1, When there are small rocks.
GPS2 Common Use	Steel Wire Netting+Steel Wire Grid	Same To GAR2+Iron Grid + Fixed Anchor + Horizontal Support Rope(2-16)+ Steel Wire Netting(?08/300/4*4)+ SO/2.2/50 Steel Wire Grid+System Anchor]	Same To GAR2, With small unstable rocks or terrene slope.
GER1	Steel Wire Grid	Same To GAR1, But Steel Wire Oversewed Along The Support Rope.	Same To GAR2, With small unstable rocks or terrene slope.
GER2	Steel Wire Grid	Same To GAR2, But Steel Wire Oversewed Along The Support Rope.	Same To GAR2,But the fall rock is small.
GTC-65A	High-Strength Steel Wire Grid	Prestressed Reinforcing Steel Bar+ Concave Orifice + Oversew Rope	Same To GPS2,Guaranteed more than 100 years, but it is not suitable that the vol. of fallrock is bigger than 1 m3.
GTC-65B	High-Strength Grid	Reinforcing Steel Bar Anchor Rope	Same To GAR1, Guaranteed more than 100 years,But it is not suiable that the Vol. Of fallrock is bigger than 1m3.
MG-GPS2	Steel Wire Netting+Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope	Same To GPS2, Steel Wire Grid+ Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope + Horizontal Support Rope (16/12)+Steel Wire Netting(?08/300/4*4?)+Oversewed Rope(8)+SO/2.2/50 Iron Wire Grid + System Anchor fixing	Slope Reinforcement,Protect from collapse and weathering, Restrict the coast and local fallrock.It can be used for small unsafe rock or soil or soil mixed rock.
MG-GPS2-L	Same to MG-GPS2	Same To MG-GPS2+Landscaping of Slope	Same To MG-GPS2+ Landscaping of Slope
