Specifications
1.Wire drawing Machine2. Easy to handle
3. High capacity
4. 6.5mm--2mm--0.6mm
5. One Year Guarantee
Wire Drawing machine

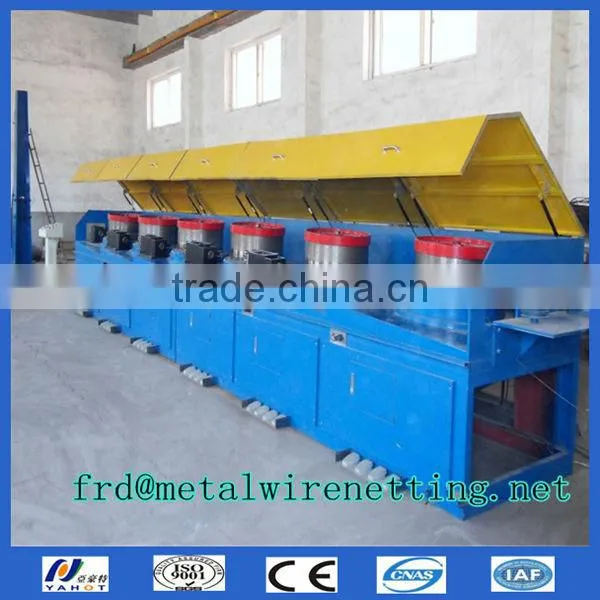

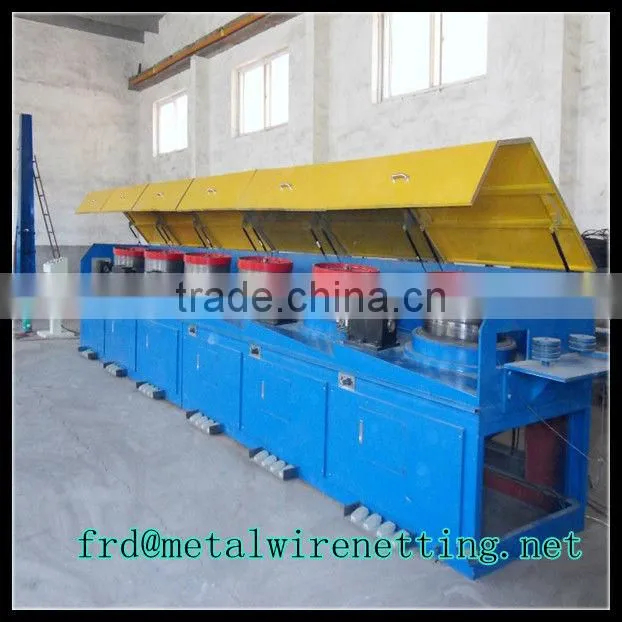

Pully Type Continuous Wire Drawing Machine
Our pully type continuous wire drawing machine has the characteristics of simply structure ,low cost ,and easy operation,and it is suitable for drawing a variety of medium and thin fiber material,especially for mild steel wire ,galvanized iron wire ,steel head wire,stainless steel wire ,rubber hose steel wire ,spring steel wire,ro application:gas-protection welding wire ,welding electrode,stainless steel wid welding wire and copper wire aluminum rod,etc.
Scope ofre ,galvanized iron wire,bullet and hard wire ,copper wire,and metal product wire,etc.
Main technical parameter:
Specifictions Model |
800 |
560 |
450 |
350 |
|
dia of takeup wheel (mm) |
800 |
560 |
450 |
350 |
|
Draw die |
1--8 dies |
1--6 dies |
1--7 dies |
1--6 dies |
|
Max.incoming diameter (mm) |
10--14 |
6.5 |
3.4 |
2.5 |
|
Outgoing diameter (mm) |
6 |
2 |
1 |
0.75 |
|
Total compressibili (%) |
/ |
78--88.5 |
78 |
78 |
|
Average partial compressibility (%) |
25 |
30 |
20 |
21 |
|
Drawing speed (m/m) |
/ |
245 |
346 |
200 |
|
Motor power (kw) |
132 |
60-80 |
30-45 |
18.5-22 |
|
Overall dimensionssss (mm) |
9730x3340x2020 |
1700x1150x1750 |
1520x810x1700 |
1400x800x1500 |
|
Weight (kg) |
4500 |
2000 |
1500 |
1000 |
Water Tank Type Wire Drawing Machine
Our water tank type wire drawing machine is used for drawing mild,bullet,and hard wires,stainless steel wires,prestressed concrete wires,and alloy wires,etc.,as well as cord yarn steel wire,rubber hose steel wire ,spring steel wire ,temper steel head wire ,gas-protection welding wire ,and stainless steel wire .
Max inlet wire diameter |
6.5mm |
Min outlet wire diameter |
3.5mm |
Unit motor power |
90Kw |
Weight |
6T |
Drawing Path |
8 |
Speed |
5m/second |
Total compressing rate |
80% |
Average partial compressing rate |
15% |
Welcome you to learn more details from us about Wire drawing Machine !
