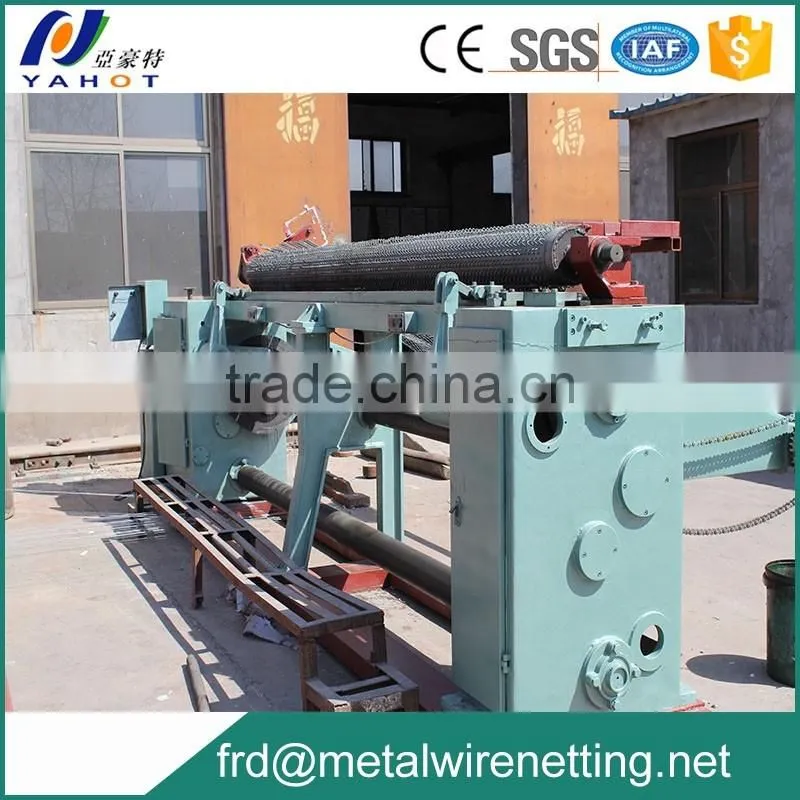

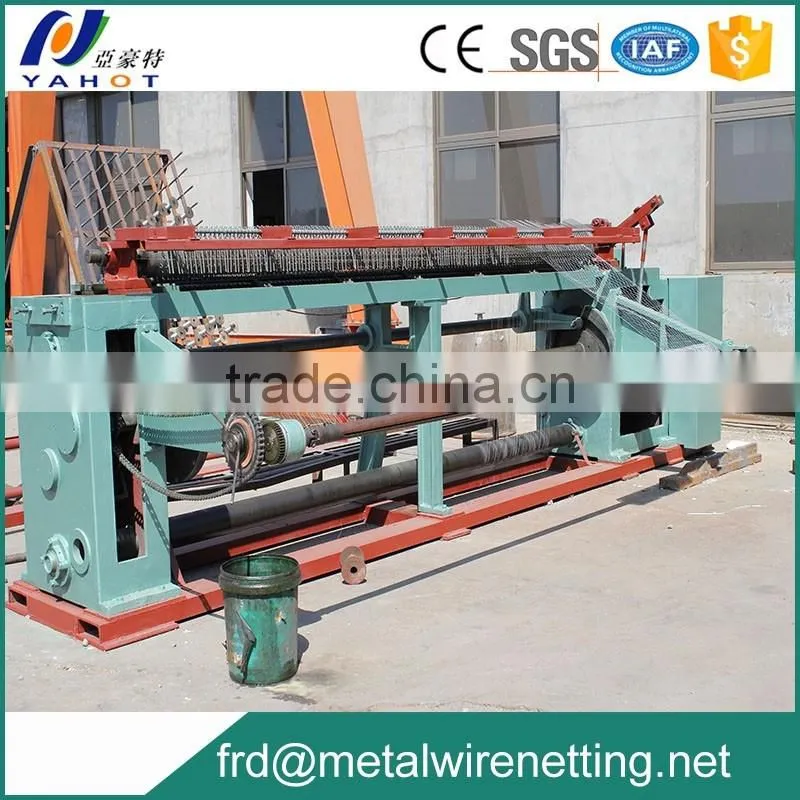

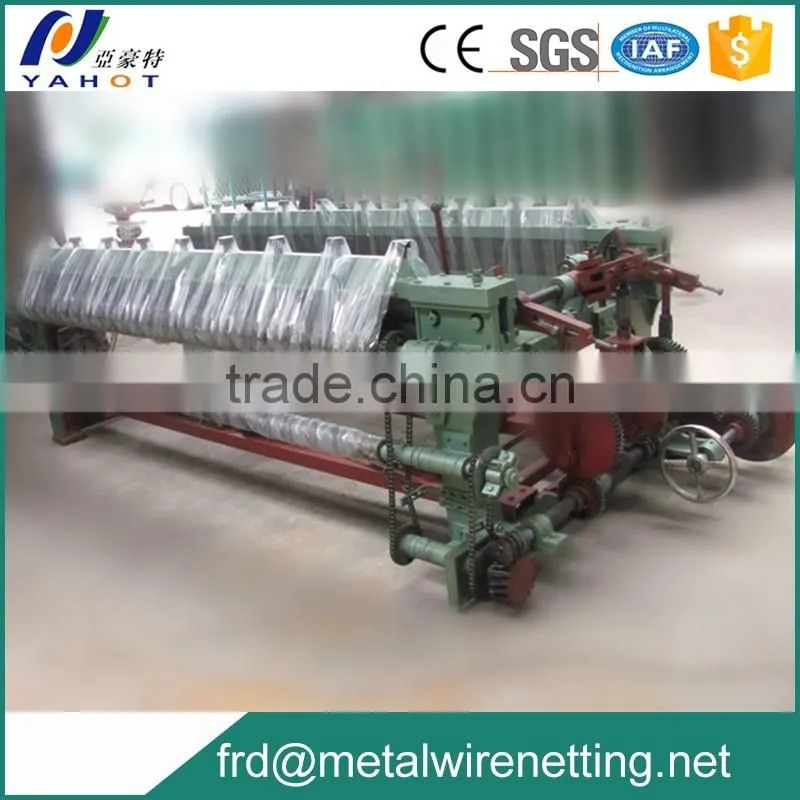

Hexagonal Wire Mesh Fence Netting Machine
Hexagonal Wire Mesh Fence Netting Machine, Hexagonal wire netting weaving machines adopt straight-reverse twisted principle, do not need to make the iron wire into spring type, so work fficiency is increased so that can work continuously. The models such as: 1/2", 5/8", 3/4", 1", 11/4", 11/2", 2", 3", 80x100mm or at the customer's requirement.
It also has characteristics as follows:
1, Max. speed can be 65 mesh per minute, speed can be adjusted with different raw materials.
2, Smooth operation, low noise. It will give an alarm at broken wire, broken mesh or at preset length.
3, Big width. It can weave double 1.25 m or single 2.5 m width.
4, Even and flat openings, wire can be added at any spot when weaving.
5, It has clutch brake device, can move by spot, flexible operation and has no high demand for operating personnel.
6, Reliable lubrication and convenient use.
7, Durable and strong, convenient maintenance.

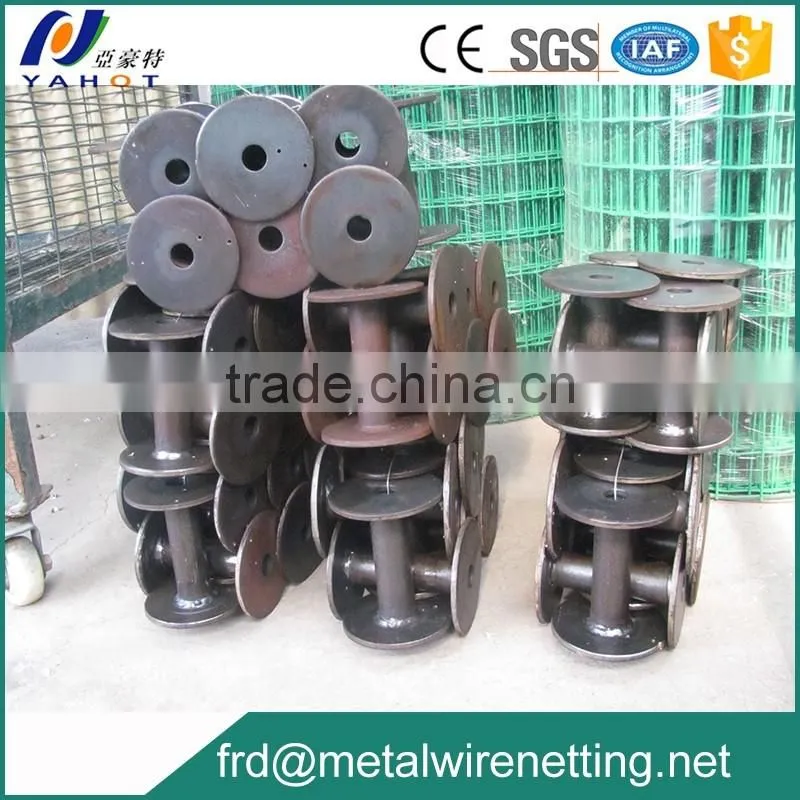

Regarding Hexagonal Wire Mesh Fence Netting Machine, We also provide fittings for weaving machines and thread spool machine.We may also design machines according to customers' particular requirements. Timely delivery & guaranteed quality
Reversed type
Type |
Theoretic produce speed |
Outer size(mm) |
Gross weight(T) |
|
mesh/minute |
meter/hour |
|||
3/4" |
38 |
62 |
4500x2200x1450 |
4.6 |
5/8" |
38 |
62 |
4500x2200x1450 |
4.6 |
1/2" |
38 |
62 |
4500x2200x1450 |
4.6 |
1" |
38 |
62 |
4500x2200x1450 |
4.6 |
1 1/4"" |
38 |
66 |
4500x2200x1450 |
4.6 |
1 1/2" |
38 |
99 |
4500x2200x1450 |
4.6 |
2" |
38 |
131 |
4500x2200x1450 |
4.6 |
3" |
38 |
169 |
4500x2200x1450 |
4.6 |
Type |
Mesh opening |
Max. width (mm) |
Woven Max. wire dia.(mm) |
|
single width |
double width |
|||
3/4" |
19 |
2440 |
1200 |
1.2 |
5/8" |
16 |
2440 |
1200 |
1.2 |
1/2" |
13 |
2440 |
1200 |
1.2 |
1" |
27 |
2440 |
1200 |
1.2 |
1 1/4"" |
32 |
2440 |
1200 |
1.2 |
1 1/2" |
44 |
2440 |
1200 |
1.4 |
2" |
56 |
2440 |
1200 |
1.4 |
3" |
76 |
2440 |
1200 |
1.8 |
Normal Type
Types |
widthmm |
meshinch |
diametermm |
Number of twist |
weightT |
Power KW |
NW15 |
1200--2200 |
1/2 |
≤0.6 |
3-5 |
2.5 |
2.2 |
NW20 |
1200--2200 |
3/4 |
≤0.8 |
3-5 |
2.5 |
2.2 |
NW18 |
1200--2200 |
5/8 |
≤0.7 |
3-5 |
2.5 |
2.2 |
NW25 |
1200--2200 |
1 |
≤0.9 |
3-5 |
2.5 |
3.0 |
NW40 |
1200--2200 |
1.5 |
≤1.0 |
3-5 |
2.5 |
3.0 |
NW50 |
1200--2200 |
2 |
≤1.6 |
3-5 |
2.5 |
3.0 |
NW60 |
1200--2200 |
2.5 |
≤1.8 |
3-5 |
2.5 |
3.0 |
Welcome you to contact us to lean more details about our hexagonal wire mesh fence netting machine!
