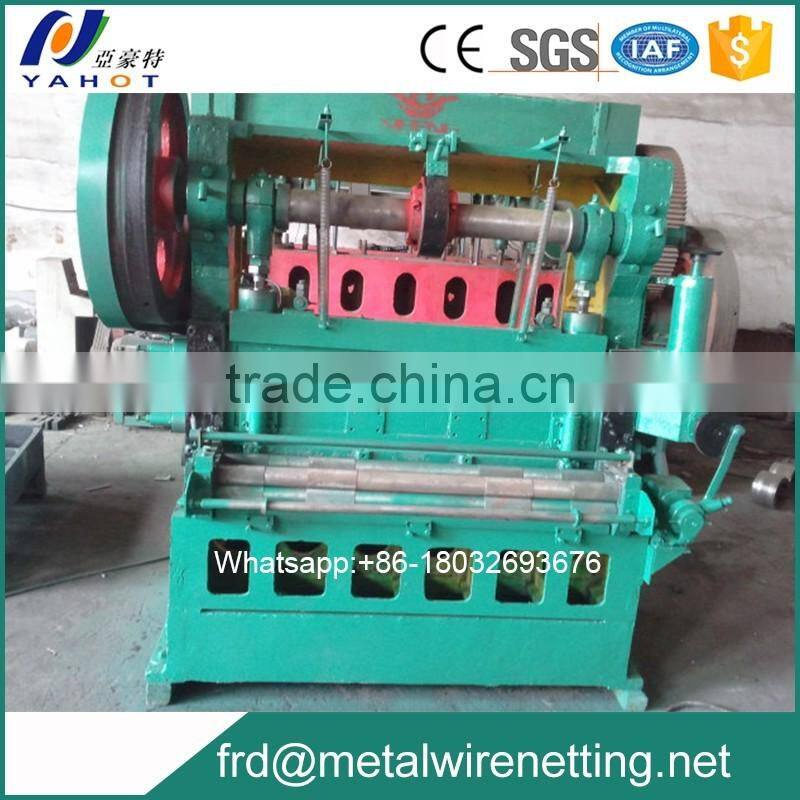

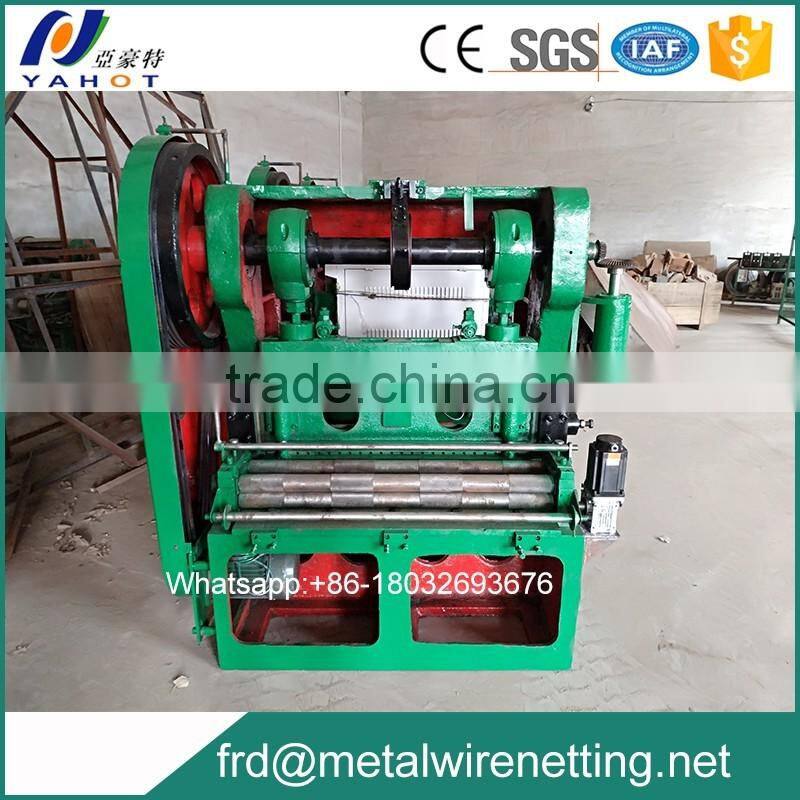

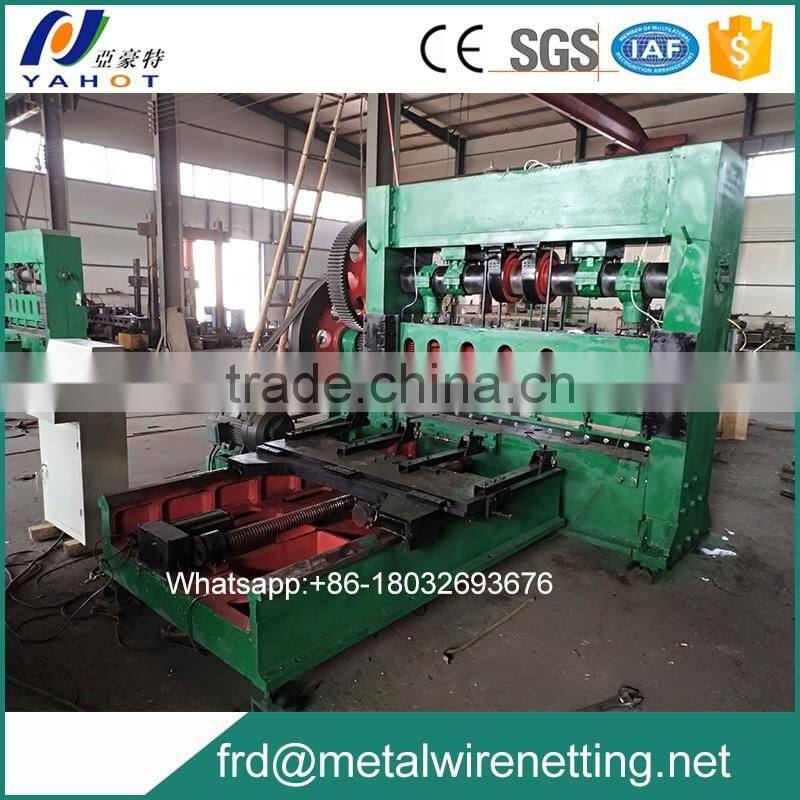

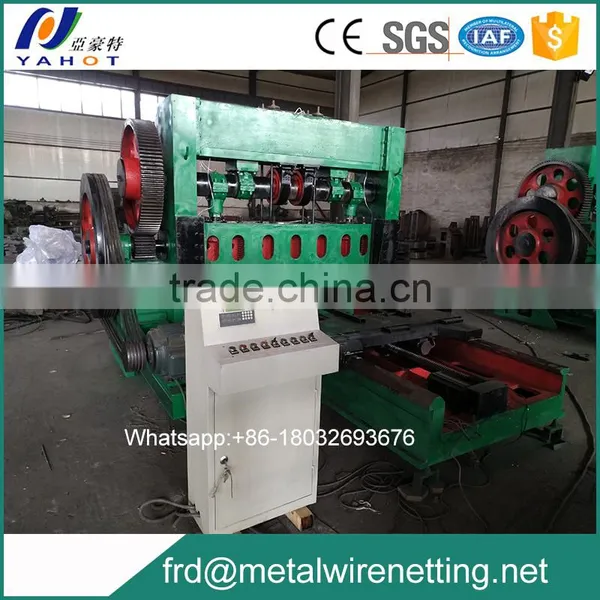

(1)Introduction of our expanded metal mesh machine
Expanded metal mesh machine can be separated two kinds which are stretch net and perforated metal. We can also call it fence machine stretch net machine Machine hole and shaped punching machine..
Expanded metal mesh machine can expand all kinds of steel and iron plate. Then stretch it to fence mesh, this machine can be called fence machine.
(2)Parameter of our expanded metal mesh machine
| JQ25-6.3 | JQ25-16 | JQ25-16A | JQ25-25 | JQ25-63 | JQ25-100 |
Material Thickness | 0.1-1mm | 0.2-1mm | 0.2-1mm | 0.2-1.5mm | 0.5-2.5mm | 0.5-4mm |
Material max width | 500mm | 1000mm | 1000mm | ≤1250mm | 2000mm | 2000mm |
Stroke per min | 180/min | 150/min | 300/min | 150/min | 70/min | 60/min |
Distance of feed | 0-1.2mm | 0-1.2mm | 0-4mm | 0-1.2mm | 0-4mm | 0-4mm |
Mesh size of SW | 20mm | ≤25mm | 25mm | ≤30mm | 100mm | 150mm |
Motor | 2.2kw | 3kw | 5.5kw | 4kw | 11kw | 18kw |
Net weight | 0.95T | 2T | 2.05T | 3T | 11T | 12T |
Overall dimensions | 1090*710*1450mm | 1740*1400*1500mm | 1470*850*1630mm | 1940*1600*2010mm | 2400*3500*2300mm | 3600*2500*3000MM |
