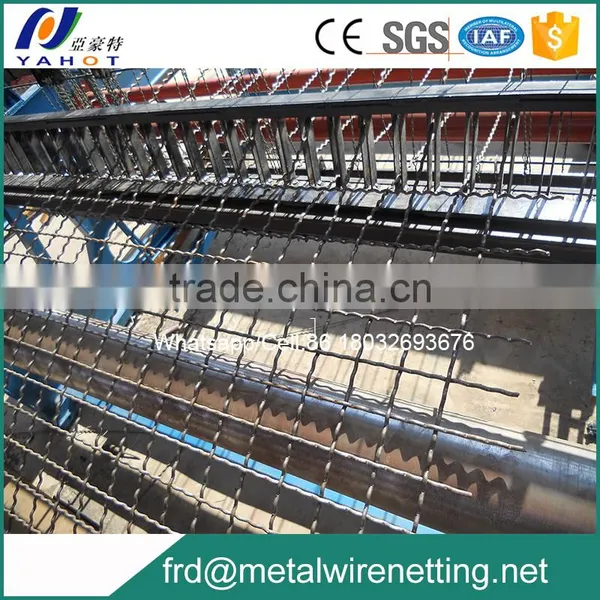

We are specialized in producing different types of crimepd wire mesh machine
Our machines could produce wire diameter range from 0.4 to 12 mm and width 1000 – 2500 mm 3series,10kinds specifications crimped wire mesh machine .
Our machines could produce every kind of high quality common curl type, plain crimped, intermediate crimped, lock crimped, flat top crimped.
This series of machine widely used for every technical-net, warehouse fence mesh, vibrating screen, wall net building etc.
Main technical parameter:
1. Outside size (L.W.H): 3200*3100*1200mm
2. The mesh of weaving: 2*2mm--80*80mm
3. Production: 9m2--72m2/hour (different according to the mesh)
The width of mesh(mm) |
Dimension(mm) |
Motor(kw) |
Weight(kg) |
1000 |
2500*2500*1500 |
0.75 |
1000 |
1200 |
2800*2500*1500 |
1.1 |
1200 |
1300 |
3500*2500*1700 |
1.1 |
1300 |
1500 |
4000*3000*1700 |
1.5 |
1400 |
1800 |
4000*3000*1700 |
1.5 |
1500 |
2000 |
4200*3000*1800 |
2.2 |
1800 |
2300 |
4500*3000*1800 |
2.2 |
2000 |
Mesh width |
2m |
Mesh opening |
10-100mm |
Wire diameter |
5-12mm |
Capacity |
10 rods/min |
Dimension |
2.8*2.1*1.5M |
Weight |
1.3 Ton |
Shipping |
one 20 feet container |
Mesh width |
2.5m |
Mesh opening |
2-50mm |
Wire diameter |
2-6m |
Capacity |
15 rods/min |
Dimension |
2.9*2.05*1.7 M |
Shipping |
one 20 feet container |
