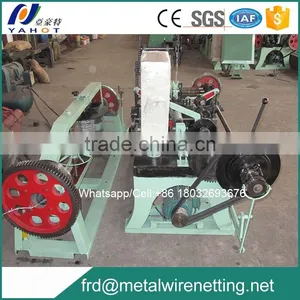

CS-C reverse twisted barbed wire machine
- 50 Set / Sets per Month
- Xingang Port Of China
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Hebei, China | Brand Name: | YHT | Model Number: | Razor barbed wire making machine machinery |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Description of Barbed Wire Making Machine
Barbed Wire Making Machinery For making 2-strand 4 barbed points barbed wire, high speed in output, rach to 33 linear meters / minute around 140kgs / per hour. Easy operate and maintenance. Same machine for making different wire materials, including stainless steel wires.
Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.
The machine is compose of spool wire and twist wire two parts. And the machine is fitted with four disks for wire rewinding. The machine is coordination of various components ,gentle movement.
The machine is mainly applicable to the production of a variety of multistrand barbed rope. The usage materials should be consistent with stable, flexible operation and reliable.
Item | CS-A | CS-B | CS-C
|
Motor power(kw) | 3 | 2.2 | 2.2 |
Main drive shaft speed(r/min) | 402 | 355 | 355 |
Strand wire diameter (mm) | 2.2-3.0 | 2.2-3.0 | 1.6-2.8 |
Barbed wire diameter (mm) | 1.8-2.2 | 1.8-2.2 | 1.6-2.2 |
Barbed distance(mm) | 76(3")102(4")127(5") | 102(4")127(5") | 102(4")127(5") |
Twist number (pcs) | 3-5 |
| 7 |
Theoretical output(kg/h) | 70 | 40 | 40 |
Total weight (kg) | 1200 | 1000 | 1000 |
Dimension of main part(mm) | 1950*950*1300 |
| |
Dimension of take- twisting part(mm) | 1760*550*760 |
| |
Dimension(mm) |
| 3100*1100*1150 | 3100*1100*1150 |
