manual wireless remote control Exposure high frequency 3.5kw cheap mobile x ray equipment price
Model: YSX70GM-A
Application
Not only applied in wards, isolation areas, emergency rooms,etc. for X-ray photographic inspection of the patients who are inconvenient to move or in serious condition, but also can be used as the back-up of mobile X-ray inspection of Radiology.
Features for x ray machine high frequency:
With three-dimensional design of the body, the machine is made elaborately with full high-quality steel and high-precision CNC craft. It is elegant in appearance, advanced in structure, user-friendly in design and easy to operate.

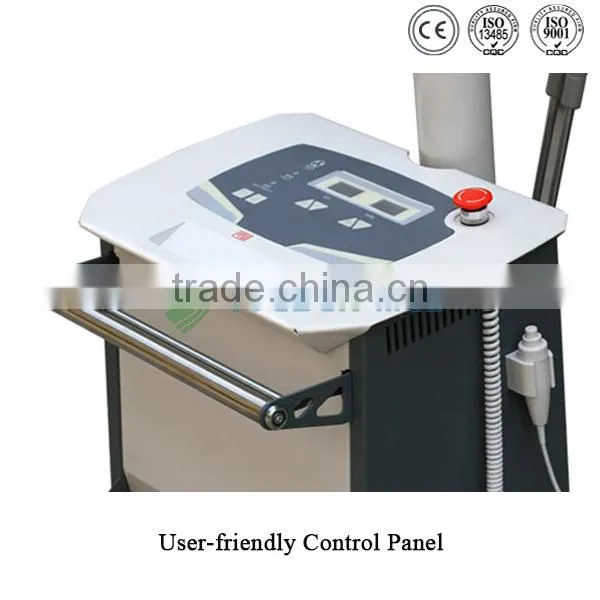

With double-parameter settings, the equipment is easy to set conditions. Controlled by the computer, it has the function of fault self-diagnosis and code real-time display.
With compact and reasonable structure design, the machine is sturdy, durable and flexible.
Structure of rigid connecting-rod brake guarantees longer serving time and better security and reliability
Retractable entirely within the body of the machine, the head has been effectively protected.

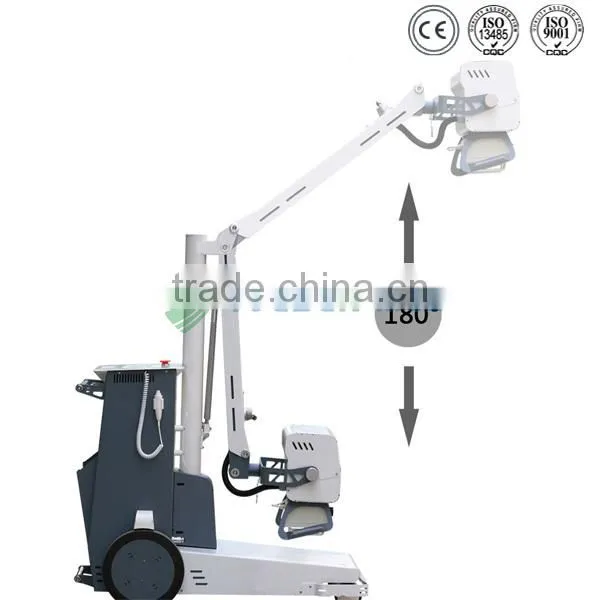

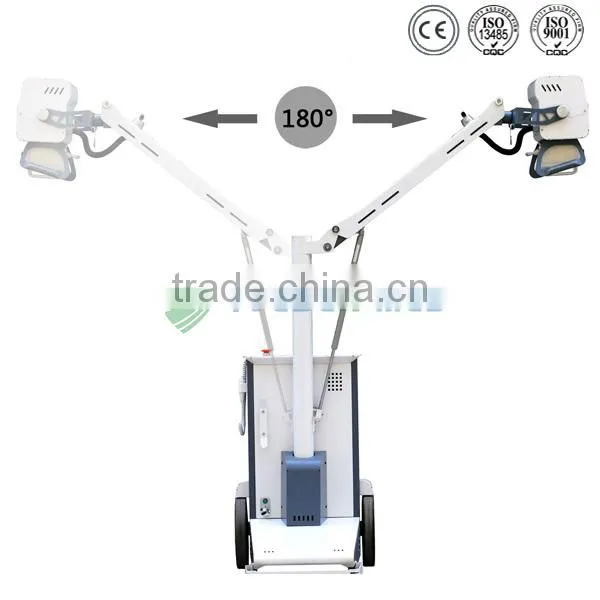

Pillar can be rotated ± 90° around, which makes the bedside operation more flexible and convenient. Arm’s height and left-and-right rotating are controlled by one button. It is supported and locked by the air springs.
Technical parameters:
1. Power supply
Power voltage:a.c220±22V.
Power frequency:50Hz±1Hz.
Power Capacity:3.5kVA
Power internal resistance≤0.6
2. Core Unit
Standard output power: 3.5kW.
Inverting frequency: 30kHz
Maximum tube current:70mA
Maximum tube voltage:110kV.
Tube Voltage: 40-110kV,1kv step-by-step
Accumulate of current: 0.5mAs~160mAs , 26 grades Adjustable
3. X-ray tube

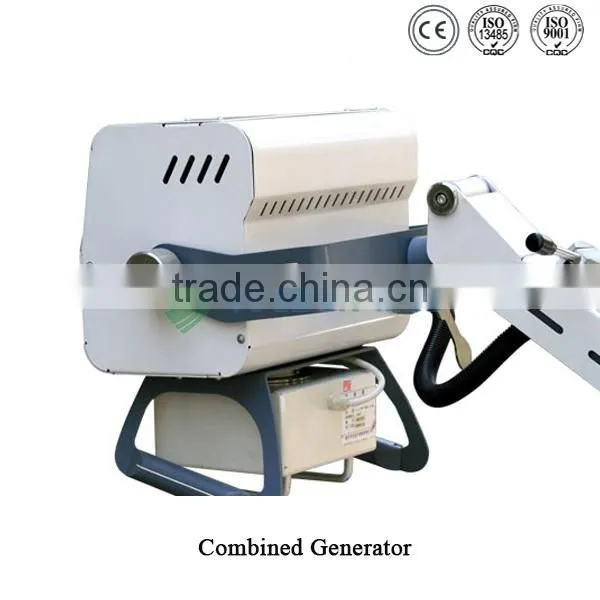

High-voltage combined head of the machine.
X-ray tube type: X782D .
Focus: 0.6/1.5mm.
Maximum heating capacity of anode:5 7 k J ( 7 6 k H U ).
±90° rotation in the same surface,
±90° rotation along x-axis,
+90°~-35° rotation along Y-axis.
Vertical moving range of tube: 525-1796mm.
Vertical stroke of x-ray tube head: 1271mm.
4. Mobile frame.
Arm: ±90° rotation around.
Stand With omni-directional wheel.
5. collimator: photoelectricity positioning.

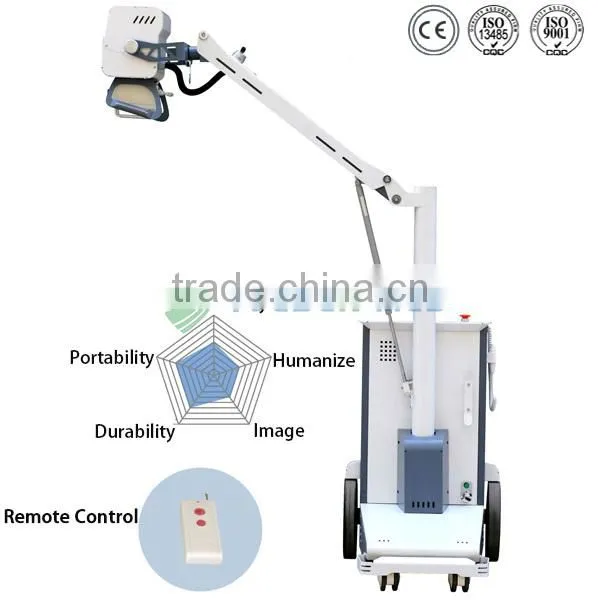

6. Exposure mode: manual and wireless remote control.
70mA x ray machine high frequency
medical x ray machine high frequency
mobile x ray machine high frequency
Easy install and operate Good selling YSX70GM-A 3.5kw x ray machine high frequency
