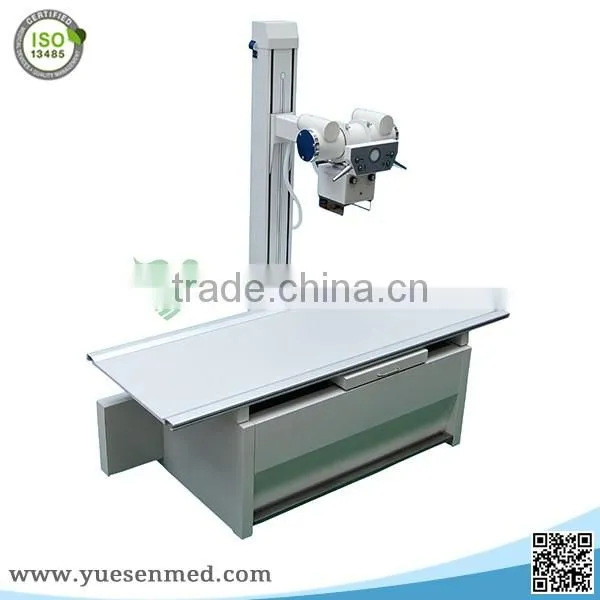

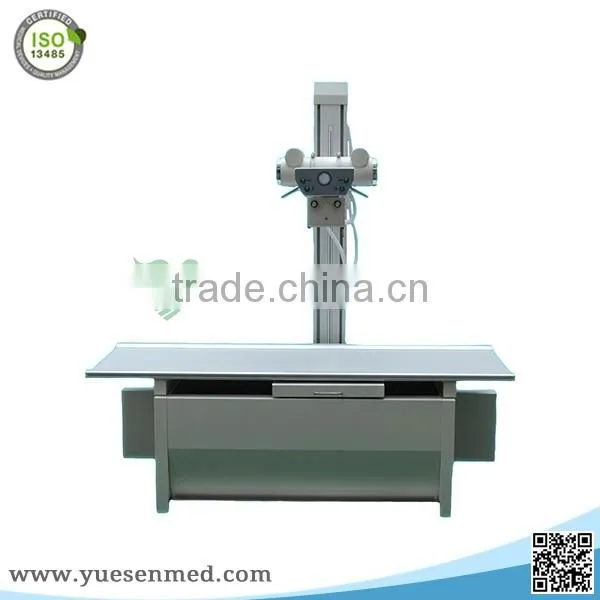

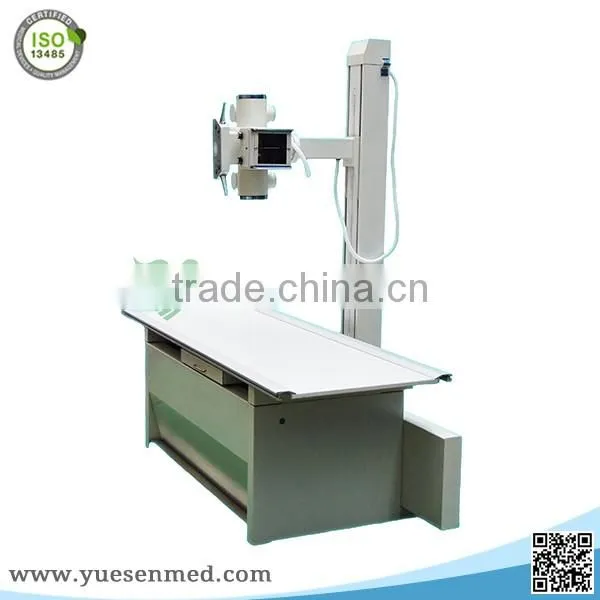

500mA Diagnosis Radiology X-ray Machine

Name: 500mA Diagnosis Radiology X-ray Machine
Brand: Ysenmed
SKU: 140352148
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Properties:

Other, Medical X-ray Equipments & Accessories

Brand Name:

Ysenmed

Model Number:

YSX500G

Guangzhou Yueshen Medical Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Properties Other, Medical X-ray Equipments & Accessories

Brand Name Ysenmed

Model Number YSX500G

Place of Origin Guangdong, China

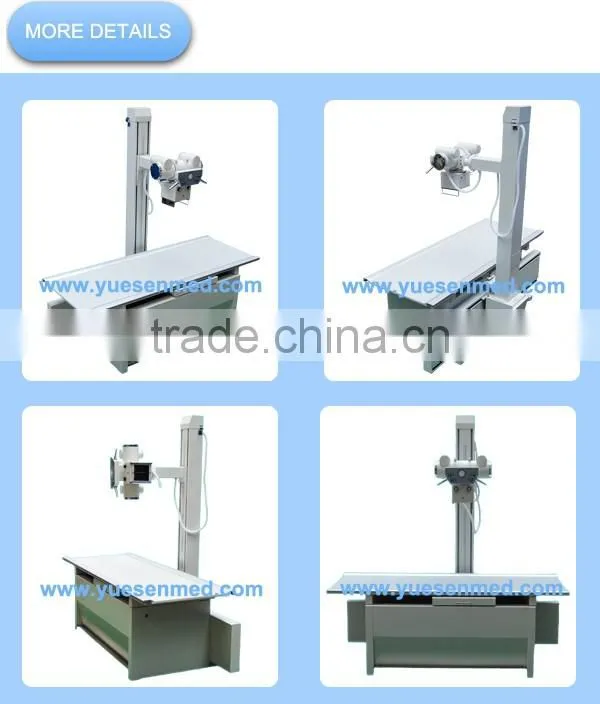

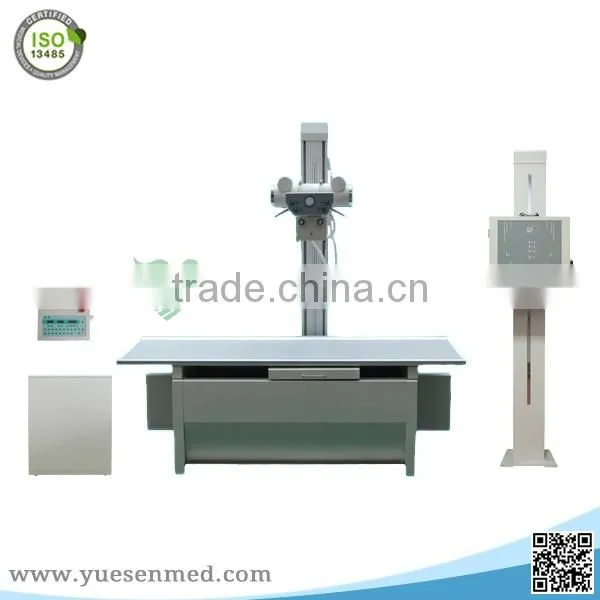

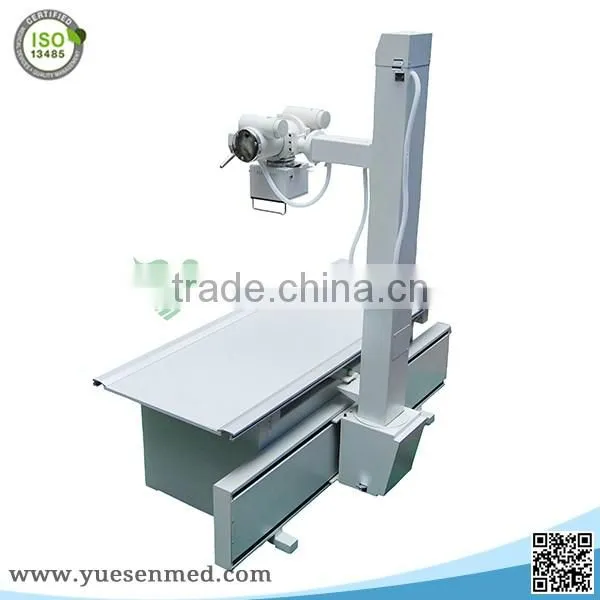

500mA Diagnosis Radiology x-ray machine

Features:

1. 50KW//30KHz: High frequency machine can cover all body parts, undertake general radiography and obtain clear images.

2. There is no other x-ray machine more cost-effective in the world. Moreover, you will sure be pleasantly surprised by the ultra-low price.

3. If you have mobile DR flat, that will be fantastic! A slight upgrade can help you realize direct digital imaging.

4. Its solid & streamline shape, as well as its ultra-long service life, make it well worth the cost.

5. With microcomputer control program and auto-generation of radiography conditions, it’s easy to operate and has good repeatability.

Technical parameters

CONTENTS	YSX200G	YSX500G
Intermittent mode	100kV ,200mA,20kW	100kV ,500mA,50kW
Power Voltage	380V±10% 50Hz±10%
tube current	Radiography 16mA~200mA	Radiography32mA~630mA
Output Voltage	Radiography 40-125KV step 1kV;
resistance power	less than 0.5Ω
Output power	20kW	50kw
Exposure Time	Radiography 0.0025s~6.4s adjustable	Radiography 3ms~6s adjustable
Nominal Frequency	30kHz
Speed of anode rotating	2800r/min
Anode heat capacity	140KHU	150KHU
Focus	Small focus:1.0mm Big focus:2.0mm
Lengthwidthheight of bed surface	2000mm×750mm×690mmDeviation:±10mm
Horizontal movement distance of table	≥200mm
Vertical movement range of table	≥900mm
Distance from table surface to film	50mm±2mm
Distance of vertical movement	770mm±10mm;	800mm-1100mm
Moving crosswise (left & right)	+180°~-180°deviation<±2°
Moving lengthways (along ground railway)	≥1300mm	600mm
Fixed beam filtration grid density	≥40 lines/cm.
grid ratio	10:01
Focus Distance	100cm
Cassette size	5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″
