Stationary 20kw/50kw 200ma/500mA Medical X-ray Machine Prices

Name: Stationary 20kw/50kw 200ma/500mA Medical X-ray Machine Prices
Brand: Ysenmed
SKU: 140352102
Availability: InStock

US$ 4,900 - 9,900 MOQ: 1 Set

Key Specifications

Properties:

Other, Medical X-ray Equipments & Accessories

Brand Name:

Ysenmed

Model Number:

YSX200G

Guangzhou Yueshen Medical Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou China

Delivery Detail:

Delivery time depends on order quantity.

Properties Other, Medical X-ray Equipments & Accessories

Brand Name Ysenmed

Model Number YSX200G

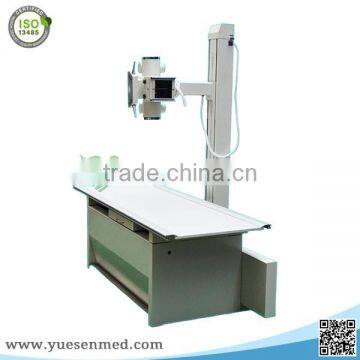

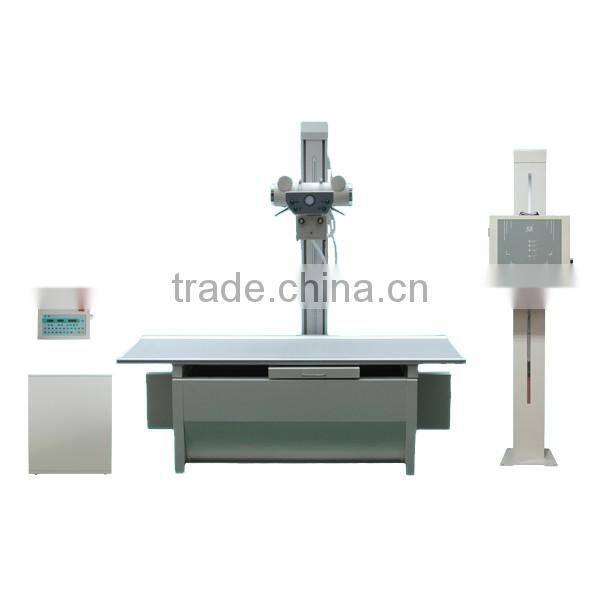

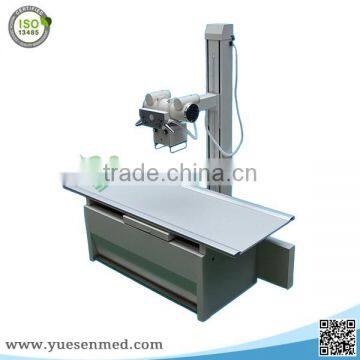

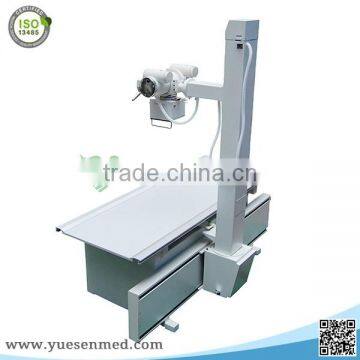

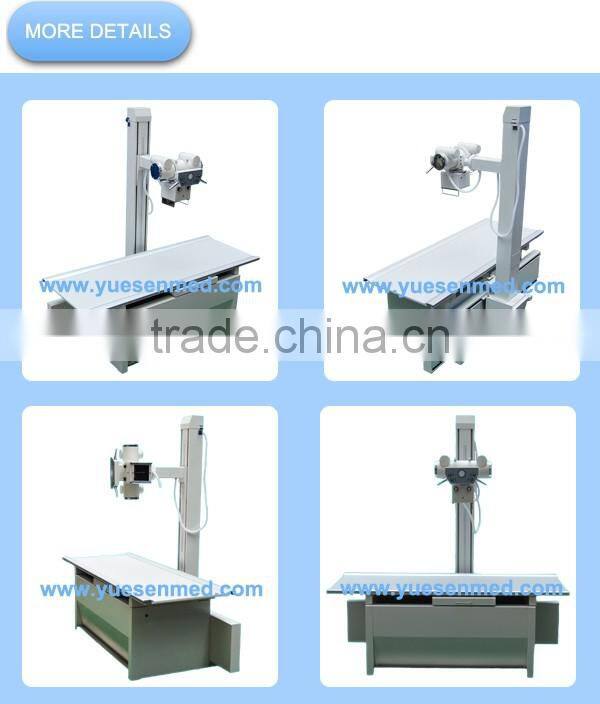

20/50kw high frequency chest x-ray machine

YSX200G/YSX500G

YSX200G/YSX500G x ray machine is ok for all body parts checking.

Product Configuration:

Standard Accessories:

No	Part Name	Qty
1	Lateral cassete holder with clamp	1

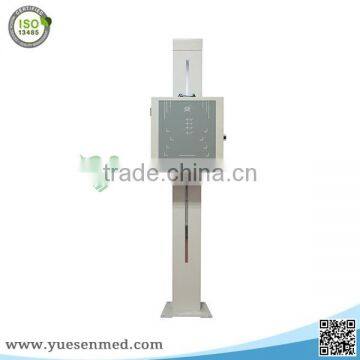

2	Bucky wall stand handgrip	1
3	Compression belt	1
4	Lead screen	1
5	Lead apron	2
6	Cassettes (8” x 10, 10” x 12”, 12” x 15”, 14” x 14”)	4
7	Intensifying screen (8” x 10, 10” x 12”, 12” x 15”, 14” x 14”)	4

Technical parameters of main components:

CONTENTS	YSX200G	YSX500G
Intermittent mode	100kV ,200mA,20kW	100kV ,500mA,50kW
Power Voltage	380V±10% 50Hz±10%
tube current	Radiography 16mA~200mA	Radiography32mA~630mA
Output Voltage	Radiography 40-125KV step 1kV;
resistance power	less than 0.5Ω
Output power	20kW	50kw
Exposure Time	Radiography 0.0025s~6.4s adjustable	Radiography 3ms~6s adjustable
Nominal Frequency	30kHz
Speed of anode rotating	2800r/min
Anode heat capacity	140KHU	150KHU
Focus	Small focus:1.0mm Big focus:2.0mm
Lengthwidthheight of bed surface	2000mm×750mm×690mmDeviation:±10mm
Horizontal movement distance of table	≥200mm
Vertical movement distance of table	≥900mm
Distance from table surface to film	50mm±2mm
Distance of vertical movement	770mm±10mm;	800mm-1100mm
Moving crosswise (left & right)	+180°~-180°deviation<±2°
Moving lengthways (along ground railway)	≥1300mm	600mm
Fixed beam filtration grid density	≥40 lines/cm.
grid ratio	10:01
Focus Distance	100cm
Cassette size	5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″
