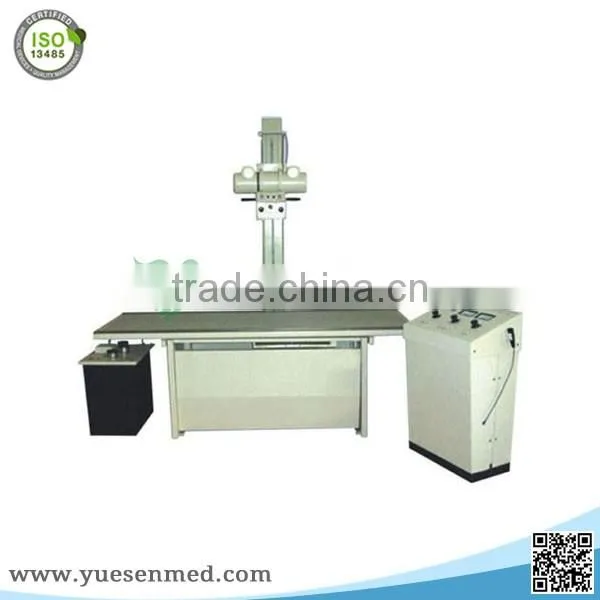

Hot Sale Medical Hospital 200mA Radiology x Ray Equipment
Hot sale medical hospital 200mA radiology x ray equipment
Model:YSX200
Use
General radiography,Filter-ray-filter radiograph
Unit Configuration
Control,HT generator unit,Ht cable,X-ray tube unit,Radiographic table-X-ray source column ,Collimator
Main chatacterastics
1,Single-table/single-tube.
2,Rotary anode X-ray tube unit and tangential annular tube head
3,Single-phase full wave rectification high-voltage generator
4,Power voltage(v) radiograph kilovolt (KV).step-less control electric mechanism
5,Filament stabilizer for X-ray tube unit and space charge compel mentor
6,Radiograph volume KV ,mA and S. grading and interlock protection
7,Adopt digital circuit timer. Grading according to R10 priority coefficient,(for more accurately controlling time
8,HT primary, the zero controlled circuit of silicon-controlled rectifier of heavy powe
9,Radiographic table can move in length an breadth
10,The radiographic table. Column and vibrating grid are in a whole without ceiling and floorh rails bottom.
Main technical index
ITEM |
CONTENTS |
INDEX |
Demand of power supply |
Capacity |
Two-phase 30KVA |
Voltage,Frequency |
380V/220V ±10%50HZ ±0.5Hz |
|
Intemal resistance |
2Ω(380V) 0.6 Ω(220V) |
|
power supply |
Adjustable range |
380±10% at220V being adjustable continuously |
Radiograph |
Voltage |
50-90KV being adjustable continuously |
current |
Small focus:50mA100mA,Big focus:50mA 100mA 200mA 300mA |
|
time |
0.04~6.35s 23grades together grading a according to R10 coefficient |
|
High-voltage generator |
Capacity |
20KVA(instantaneous) |
Max DC output voltage |
125KV |
|
Max DC output current |
300mA |
|
X-Ray tube |
Model |
XD51.20-40/125 |
Focus |
Small focus 1×1mm big focus2×2mm |
|
Radiographic table |
Length×width×height of bed surface |
2000mm×665mm×700mm |
Moving range of bed surface |
640mm in Length,200mmin breadth |
|
Ray-filter of table |
Travel in length ≥500mm |
|
Grid density N=28 | ||
Convergence distance f.=100cm | ||
Grid ratio r=8 | ||
Column of X-ray tube unit |
Moving Longitudinally along Radiographic table |
1000mm or 1800mm |
Distance to friend as moving up and down (along column) |
650~1800mm |
|
Rotary around the center of cross arm |
±180° |
|
|
Rotary around the shaft line of X-ray annular tubes |
-10°~60°~ +120° |
|
Max size of cassette |
356mm×432mm (14″×17″) |
|
Medical Radiography X-ray Unit price
Medical Radiography X-ray Unit price
Medical Radiography X-ray Unit price
Contact Person:Iris Chen
Mob:+0086 13826442089 (whatsapp available)
Skype: ysenmediris
Send Inquiry to This Supplier
