Portable Vet Multi Patient Monitor

Portable Vet Multi Patient Monitor thumbnail-1
Portable Vet Multi Patient Monitor thumbnail-2
Portable Vet Multi Patient Monitor photo-1
Portable Vet Multi Patient Monitor photo-2
US$ 580 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yuesenmed
Model Number:
YSPM500V
Properties:
Other, Diagnosis & Injection
Contact Supplier Request Quote Chat Now
Guangzhou Yueshen Medical Equipment Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yuesenmed
Model Number YSPM500V
Properties Other, Diagnosis & Injection

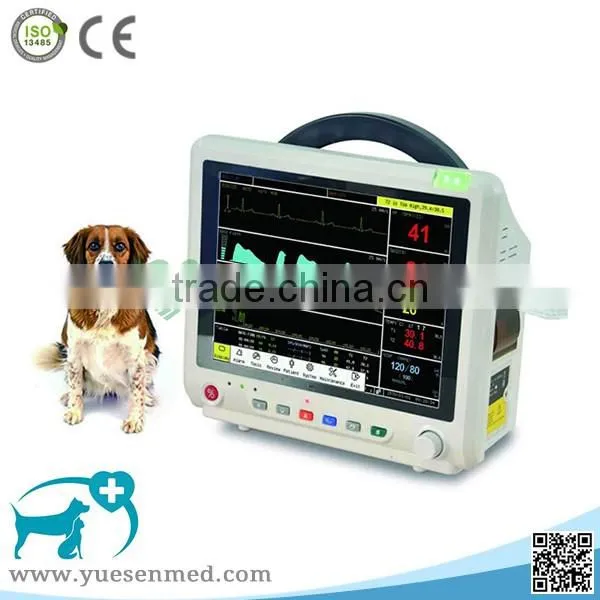

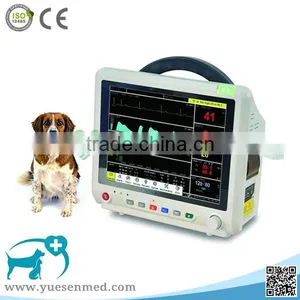

Portable vet multi patient monitor

Model: YSPM500V

portable vet multi patient monitor





portable vet multi patient monitoronitor

Features:

12.1'' inch colored, high definition TFT screen

Lightweight, compact and portable

Parameters: SPO2, ECG, NIBP, TEMP, RESP

Suitable for DOG, CAT and HORSE etc.

72 hours graphic and tabular trends of all parameters

32 seconds full-disclosure waveform review

500 NIBP measurement data can be stored and recalled

Storage and recall of 500 SpO2 measurement data

Built-in rechargeable Lithium battery

Technical Specifications:



1. Parameters

SPO2, ECG, NIBP, TEMP, RESP, PR, RR.

Optional function: ETCO2 and internal printer.



2. Power supply

·AC power adapter, AC 85~265V/ 50Hz/60Hz;

·lithium battery.



3. SpO2

·Range: 0%-100%.

·Accuracy: ±2% at 70-100%;<70%, undefined.



4. Pulse rate

·Range: 30-250bpm.

·Accuracy: ±2bpm at 30-250bpm.



5. NIBP

·Method: Oscillometry

·Modes: Manual/Auto/Comtinuous

·Auto measure time: Adjustable

·Measurement range: 10-270mmHg



6. ECG

·Lead mode:3-lead or 5-lead

·Lead selection:I;II;III,avR;avF;V

·Heart rate range:Adult:15-300bpm;Pediatric/Neonatal:15-300bpm

·ECG waveform:2 channals

·Accuracy: ±1 bpm or ±1%,which is greater

·S-T segment detection;measurement range: -2.0mv~2.0mv  ·Alarm:Yes,audible and  visual alarm,alarm events review



7. Respiration

·Method:RA-LL impedance

·Range:Adult:0-120rpm;pediatric/neonatal:0-150rpm

·Apnca alarm:Yes



8. Temperature

·Range:0-500C

·Accuracy: ± 0.10C

·Channal:Dual-channel

Veterinary Patient Monitor

Environment Specification:

Veterinary Patient Monitor

·Operating Temp.: 0 to 45°c

·Storage Temp.: -20 to +60°c

·Relative Humidity: 30 to 95%(Operating), 10 to 95%(Storage)



Standard Package:

·Main Uint

·Veterinary SpO2 Probe

·5-leads ECG Cable (mini clip)

·NIBP Cuff for VET

·NIBP Extension Tube

·Power cable

·Battery

·User manual



portable vet multi patient monitor



portable vet multi patient monitor

portable vet multi patient monitor



portable vet multi patient monitor

portable vet multi patient monitor

portable vet multi patient monitor

portable vet multi patient monitorportable vet multi patient monitor

multi patient monitormulti patient monitormulti patient monitormulti patient monitor

portable vet multi patient monitor
