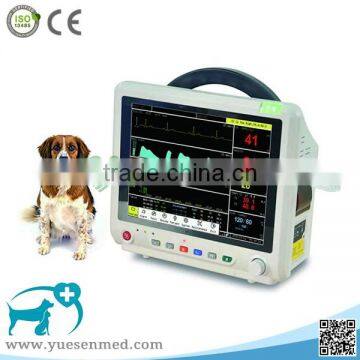

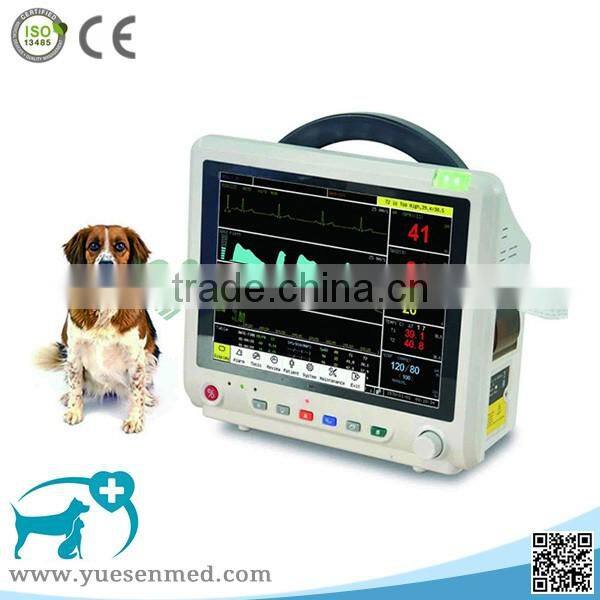

Portable Vet Multi-parameter Patient Monitor Price

Portable vet multi-parameter patient monitor price

Model: YSPM500V

onitor

Features:

12.1'' inch colored, high definition TFT screen

Lightweight, compact and portable

Parameters: SPO2, ECG, NIBP, TEMP, RESP

Suitable for DOG, CAT and HORSE etc.

72 hours graphic and tabular trends of all parameters

32 seconds full-disclosure waveform review

500 NIBP measurement data can be stored and recalled

Storage and recall of 500 SpO2 measurement data

Built-in rechargeable Lithium battery

Technical Specifications:

1. Parameters

SPO2, ECG, NIBP, TEMP, RESP, PR, RR.

Optional function: ETCO2 and internal printer.

2. Power supply

·AC power adapter, AC 85~265V/ 50Hz/60Hz;

·lithium battery.

3. SpO2

·Range: 0%-100%.

·Accuracy: ±2% at 70-100%;<70%, undefined.

4. Pulse rate

·Range: 30-250bpm.

·Accuracy: ±2bpm at 30-250bpm.

5. NIBP

·Method: Oscillometry

·Modes: Manual/Auto/Comtinuous

·Auto measure time: Adjustable

·Measurement range: 10-270mmHg

6. ECG

·Lead mode:3-lead or 5-lead

·Lead selection:I;II;III,avR;avF;V

·Heart rate range:Adult:15-300bpm;Pediatric/Neonatal:15-300bpm

·ECG waveform:2 channals

·Accuracy: ±1 bpm or ±1%,which is greater

·S-T segment detection;measurement range: -2.0mv~2.0mv  ·Alarm:Yes,audible and  visual alarm,alarm events review

7. Respiration

·Method:RA-LL impedance

·Range:Adult:0-120rpm;pediatric/neonatal:0-150rpm

·Apnca alarm:Yes

8. Temperature

·Range:0-500C

·Accuracy: ± 0.10C

·Channal:Dual-channel

Veterinary Patient Monitor

Environment Specification:

Veterinary Patient Monitor

·Operating Temp.: 0 to 45°c

·Storage Temp.: -20 to +60°c

·Relative Humidity: 30 to 95%(Operating), 10 to 95%(Storage)

Standard Package:

·Main Uint

·Veterinary SpO2 Probe

·5-leads ECG Cable (mini clip)

·NIBP Cuff for VET

·NIBP Extension Tube

·Power cable

·Battery

·User manual
