YSODU8 Hopital Ophthalmic A Scanner Eye Ultrasonography

YSODU8 Hopital Ophthalmic A Scanner Eye Ultrasonography thumbnail-1
YSODU8 Hopital Ophthalmic A Scanner Eye Ultrasonography photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Ophthalmic Optical Equipments
Brand Name:
Yuesenmed
Model Number:
YSODU8
Contact Supplier Request Quote Chat Now
Guangzhou Yueshen Medical Equipment Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Ophthalmic Optical Equipments
Brand Name Yuesenmed
Model Number YSODU8
Place of Origin Guangxi, China

YSODU8 Hopital Ophthalmic A Scanner

Eye Ultrasonography

Eye Ultrasonography



YSODU8 Hopital Ophthalmic A Scanner Eye Ultrasonography

Eye Ultrasonography

YSODU8 Hopital Ophthalmic A Scanner Eye Ultrasonography

Eye Ultrasonography

General parameters:

Eye Ultrasonography

1. Adopt ARM9 Embedded Control Systems, FPGA signal processing system and

    elaborate selected ultrasonic hardware system, make the machine more reliable.
2. Menu operation, Language: Chinese/English.

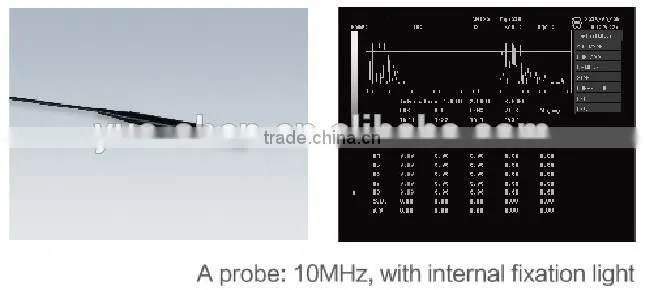

3. Double probe sockets: A mode probe: 10MHz, imported probe with fixation light;

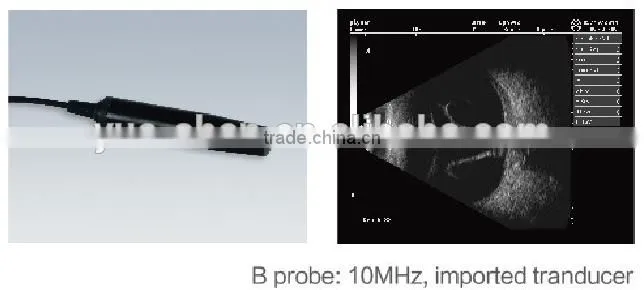

    B mode probe: 10MHz, imported transducer.


4. Preset items:
   a)System setting
    (hospital name, mode selection, date/time and its format, probe protection time,

      help, keyboard sound etc.)
   b)IOL setting
   c)Network setting, DICOM3.0
   d)Password setting
   e)Software upgrade


5 Gains range: 0--120dB.
6. Dynamic range: 30-100dB, visual and adjustable.
7. Gray: 256.


8. Intelligent TGC adjustment: 8 segments.
9.Build-in D disk: 4GB, save mass data, images, reports, etc.
10 Report function: print screen, IOL report, case report with picture, etc.


11 Dual-mode TV output: PAL/NTSC, connecting to video recorder and ultrasonic

     working station.
12. DICOM3.0 network port, realizing network transmission easily.
13. Power supply : AC110/230V -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.


14. Net weight.: 8kg.
15. Dimension: 400x186x385mm(length x width x height).



 A scan parameter:



1. Measuring range:15-35mm.
2. Measuring accuracy: ±0.02mm.
3. Measuring parameter: ACD, LENS, body Length, axial length.


4  Eye mode: normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo

    Phakic eyes.
5. Measuring Mode: Contact and Immersion, automatic and manual.
6.. Calculation: std. deviation, average, automatical measuring 8 groups and average,

     accompany waveform, results correctable.


7. Measurement methods: A single-point measurement(under A mode); five-point

    measurement(under A mode).
8. IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any

    of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc. And long

    term  save 100 groups of measurement results of A scan.


A single point measurement


   Magnification: ×1.0,×2.0,x4.0.
   Display Depth: 0~36mm , delayed depth: 0--36mm.

B scan parameter:



1. Scan mode: High accuracy stepping motor drive sector scan.
2. Scan Angle: 53°.
3. Display Depth: 0~88mm(incl.delayed depth).


4. Delayed depth: 25--32mm.
5.Gray: 256.
6. Frame frequency: 30frames/s.


7. depth seletion:8.
8. Frame correlation: 4.
9. Edge enhancement:4.


10. Compression Curve: 8.
11.Post-processing: 8.
12. Eight Pseudo colors:8 kinds (incl. B/W).


13. 100 frames permanent image storage.
14.Cine loop: 256 frames,can measure the playback image.
15. Disk management.


16. General Measurement:multi-electronic-rule to measure distance, circumference,

      area(trace method, ellipse method),volume (ellipse method), angle , histogram,

      profile , stenosis and curvature etc.





Standard configuration:



1. Main unit: 1 pc
2. 10MHz mechanical sector B probe: 1 pc.
3. 10MHz A probe : 1 pc.
4. Calibration cup: 1 pc





Optional configuration:



1. Prager shell for immersion mode
2. Trolley
3. Video recorder
4. Laser printer
5. Foot switch

Eye Ultrasonography

YSODU8 Hopital Ophthalmic A Scanner Eye Ultrasonography

Eye Ultrasonography

YSODU8 Hopital Ophthalmic A Scanner Eye Ultrasonography

Eye Ultrasonography

YSODU8 Hopital Ophthalmic A Scanner Eye Ultrasonography

Eye Ultrasonography

YSODU8 Hopital Ophthalmic A Scanner Eye Ultrasonography

Eye Ultrasonography
