Ophthalmic Portable Chinese Slit Lamp Microscope

Ophthalmic Portable Chinese Slit Lamp Microscope photo-1
Ophthalmic Portable Chinese Slit Lamp Microscope photo-2
Ophthalmic Portable Chinese Slit Lamp Microscope photo-3
Ophthalmic Portable Chinese Slit Lamp Microscope photo-4

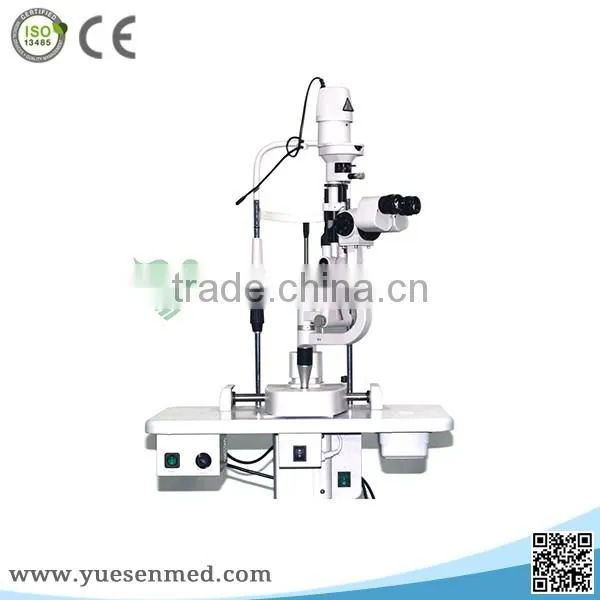

Ophthalmic Portable Chinese Slit Lamp Microscope photo-5

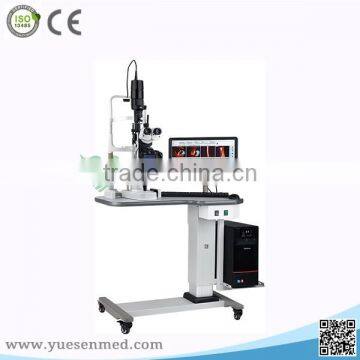

Ophthalmic Portable Chinese Slit Lamp Microscope photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Ophthalmic Optical Equipments
Brand Name:
YSENMED
Model Number:
YSLXD350S
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Type Ophthalmic Optical Equipments
Brand Name YSENMED
Model Number YSLXD350S
Place of Origin Guangdong, China

Ophthalmic Portable chinese slit lamp microscope

Ophthalmic Portable chinese slit lamp microscope



Features:



· The Galilean type microscope system adopts revolving drum
· The excellent optical system can give you a clear and clean image
· The 14mm aperture can help you observe the whole cornea and iris easily, and it is convenient to examine the foreign object
· The German imported 12V30W Osram halogen lamp can fully make use of every beam. It can make sure that you get the clean and clear image effect with the minimum illumination, at the same time can protect the patients’ eye
· The high eyepoint and open field eyepieces design can guarantee the clear image even when you wear glasses
· The modular design can reserve the adapters, this is convenient to connect beam splitter, digital camera adapter and the CCD adapter,  thus can upgrade to the digital camera system or the image capture system
· The adapter function is good, digital single lens reflex camera and the digital vidicon are compatible



Specification:



Microscope type

Galilean-Type

Magnification

3-STEP

Eye piece

12.5×

Total magnification ratio

10×, 16×, 25× (standard configuration)

Adjustment of diopter

±7D

Range of pupil distance

54mm~82mm

Slit lamp illumination adjustment

3-step dimming

Slit width

0 ~14mm adjustable

Slit height

1~14mm adjustable

Slit angle

0º~180º rotatable

Slit inclination

5º, 10º, 15º, 20º

Illumination mode

Upper light source

Light spot diameter

φ14mm, φ10mm, φ5mm,φ3mm, φ2mm, φ1mm, φ0.2mm

Filter

Thermal-isolating, ND, Red-free, Cobalt-blue

Fixation coordinate

Red LED

Illumination bulb

12V30W OSRAM

Power

220V/110V~±10%, 120VA

Output power

30VA (Max)

Output voltage

12V adjustable continuously

Field of view

40× (Ø5.5mm), 25× (Ø8.5mm), 16× (Ø13.5mm), 10×(Ø22mm), 6× (Ø34.7mm)

Dimension

740 x 450 x 500(mm)
