1. Hop Dip Galvanized Wire Rope Steel Wire Rope
1)Standard: GB/T 20118-2006
2)Construction: 6x19+FC, 6x19+IWRC, 6X37+FC, 6X37+IWRC, 7X19, 6X12+7FC, 6X24+7FC
3)Diameter: 6mm-60mm
4)Tensile strength:1570MPA,1670MPA, 1770MPA, 1870MPA,1960MPA
5)Applications:Suitable for hoisting, lifting, binding
6)Packing: In plywood reel, plastic reel, wooden reel, coil packing, also can be palletized.
7)Main Application: for elevator and lifting, also can be used in oil well drilling, blast furnace hoisting, belt conveyer, cableway towing, cable car, ship loading and unloading. The metal core wire rope can be used for heat shift steel rolling and excavator hoisting.
2. Connected Technical Parameter
Nominal Diameter |
|
The total area of broken wire rope metal |
Wire rope elongation |
|
Minimum tension wire rope breakage |
Wire rope meters reference weight
|
steel wirl rope |
steel wirl |
|
elasticity |
permanent
|
|
|
mm |
|
mm2 |
≤,% |
|
KN |
KG/100m |
|
1.0 1.1 1.2 1.4 1.5 1.6 1.8 |
0.12 0.13 0.14 0.16 0.17 0.18 0.20 |
0.58 0.68 0.79 1.02 0.15 0.33 0.63 |
0.9 |
0.2 |
1.00 1.17 1.35 1.76 1.99 2.29 2.81 |
0.50 0.58 0.67 0.87 0.98 1.13 1.39 |
|
2.0 2.5 2.8 3.0 3.5 4.0 4.5 4.8 5.0 5.5 6.0 |
0.22 0.28 0.31 0.33 0.38 0.44 0.50 0.52 0.54 0.60 0.65 |
0.96 3.21 3.92 4.43 6.31 7.87 10.20 11.42 12.71 14.89 18.04 |
1.1 |
0.2 |
3.38 5.45 6.45 7.28 10.37 12.92 15.89 17.79 12.71 14.89 18.04 |
1.67 2.73 3.34 3.77 5.37 6.70 8.69 9.73 10.83 12.68 15.37 |

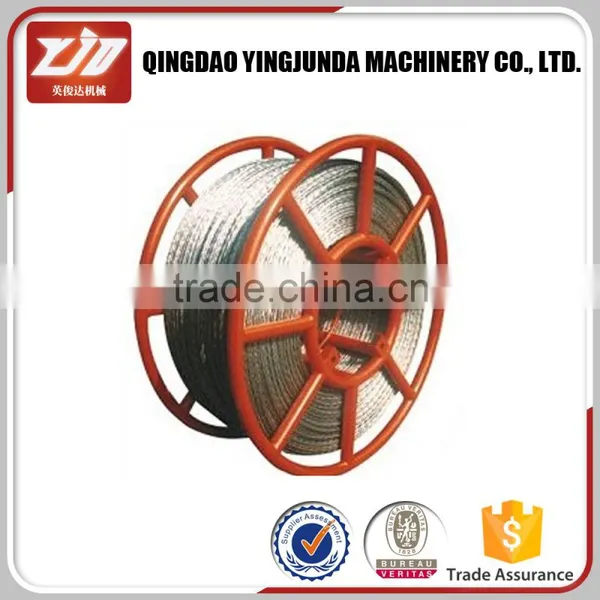

3. Picture Show
Qingdao YING JUNDA Machinery Co., Ltd. is a professional manufacturer of rigging hardware with well-equipped testing equipments and strong technical team. More than thirty five years, the company has been engaged in designing and making in shackles, turnbuckles, swivels, thimbles, hooks, bolt & nut, links, load binders, rings, wire rope clips, chains, winch & winch bar, steel cables and other rigging parts. Meanwhile, JING JUNDA accumulates extensive experience in rigging design and research and can provide OEM and ODM service. So far, the company built the largest scale manufacturing base for rigging hardware in Qingdao, China.
YING JUNDA factory covers an area of 18000 square meters and occupies the most advanced testing equipments and quality-control system. There are about 300 working people and 3 production lines, which can meet bulk orders requirements and can make sure fast delivery time.
Relying on wide variety, good quality, novel designs, reasonable prices, fast delivery time and good service, bulk products have been purchased and extensively used in North America, Europe, Australia, Southeast Asia, South Asia, Central Asia, South America, Africa and other regions, and have been highly praised by customers around the world.
