Specifications

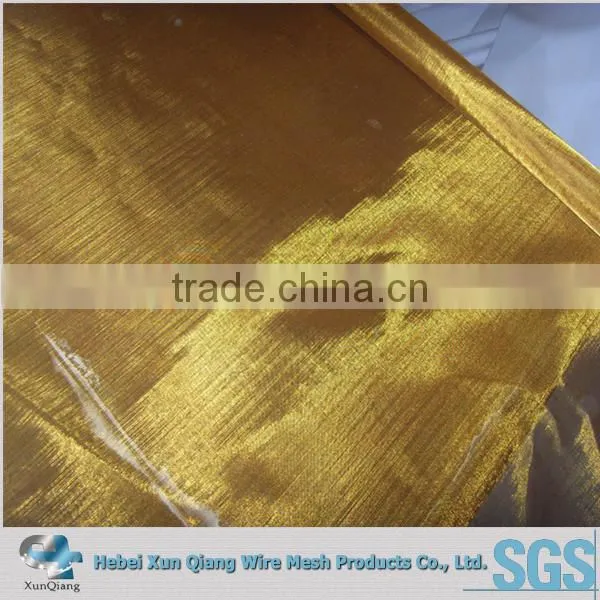

brass mesh fabric1.material:brass wire
sh:8mesh-160mesh
3.woven mesh
4. we are factory
1.Material:
- brass wire--purity--Cu: 65% , Zn:35%
- red copper wire--purity--Cu:99.8%
- phoshpor bronze wire--purity--Cu:85%-90% , Sn:5%-15%
2. Weave type:
Plain weave,twill weave,dutch weave
3.Characteristics:
- non-magnetic, wear resistance
- acid and alkali resistance, good ductility
- good conductivity, good heat transfer performanc
4.Application:
Copper wire mesh frequently utilized in applications requiring shielding of electromagnetic interference (EMI).
The reduction or exclusion of Electro-magnetic interference is dependent upon the signal amplitude and
frequency in relation to the many combinations of mesh count, wire diameter and weaving materials available.
5. Production range:
- wire diameter: 0.04-1mm
- mesh counts: 3-200 mesh
- common roll width:1m, 1.2m, 1.5m, 1.8m, 2m
- common roll length:30m, 50m, 100m
6. Specification:
Mesh/inch |
SWG |
mm |
inch |
Aperture(mm) |
18 |
30 |
0.315 |
0.012 |
1.096 |
20 |
30 |
0.315 |
0.0124 |
0.955 |
22 |
30 |
0.315 |
0.0124 |
0.840 |
24 |
30 |
0.315 |
0.0124 |
0.743 |
26 |
31 |
0.295 |
0.0116 |
0.682 |
28 |
31 |
0.295 |
0.0116 |
0.612 |
30 |
32 |
0.247 |
0.011 |
0.573 |
32 |
33 |
0.254 |
0.010 |
0.540 |
34 |
34 |
0.234 |
0.0092 |
0.513 |
36 |
34 |
0.234 |
0.0092 |
0.472 |
38 |
35 |
0.213 |
0.0084 |
0.455 |
40 |
36 |
0.193 |
0.0076 |
0.442 |
42 |
36 |
0.193 |
0.0076 |
0.421 |
44 |
37 |
0.173 |
0.0068 |
0.404 |
46 |
37 |
0.173 |
0.0068 |
0.379 |
48 |
37 |
0.173 |
0.0068 |
0.356 |
50 |
37 |
0.173 |
0.0068 |
0.335 |
60x50 |
36 |
0.193 |
0.0076 |
- |
60x50 |
37 |
0.173 |
0.0068 |
- |
60 |
37 |
0.173 |
0.0068 |
0.250 |
70 |
39 |
0.132 |
0.0052 |
0.231 |
80 |
40 |
0.122 |
0.0048 |
0.196 |
90 |
41 |
0.112 |
0.0044 |
0.170 |
100 |
42 |
0.012 |
0.004 |
0.152 |
120x108 |
43 |
0.091 |
0.0036 |
- |
120 |
44 |
0.081 |
0.0032 |
0.131 |
140 |
46 |
0.061 |
0.0024 |
0.120 |
150 |
46 |
0.061 |
0.0024 |
0.108 |
160 |
46 |
0.061 |
0.0024 |
0.098 |
180 |
47 |
0.051 |
0.002 |
0.090 |
Other wire mesh products we supply
Welded wire mesh, concrete reinforcement welded mesh, crimped wire mesh, square
wire mesh,stainless steel security window screen, chain link wire mesh, perforated
mesh, expanded wire mesh, wire mesh fece, cattle fence, barbeque wire mesh,brick
wire mesh, etc.
This is our factory
Our after-sales service start immediately after signing the contract.
No matter FOB or CIF the price term . we would try our best to find a lowest freight cost for customers'
Installation, maintenance and repair instructions with full information.
3-8 years warranty depends to different products.
