Masonry reinforcement/block truss wire mesh/block ladder mesh

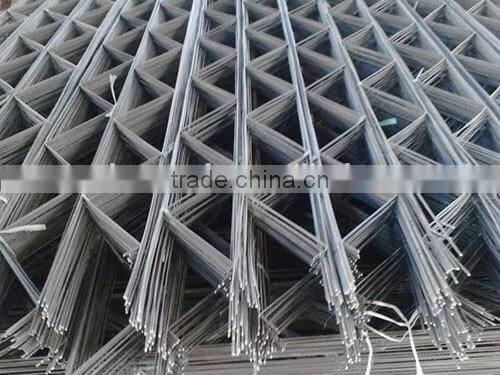

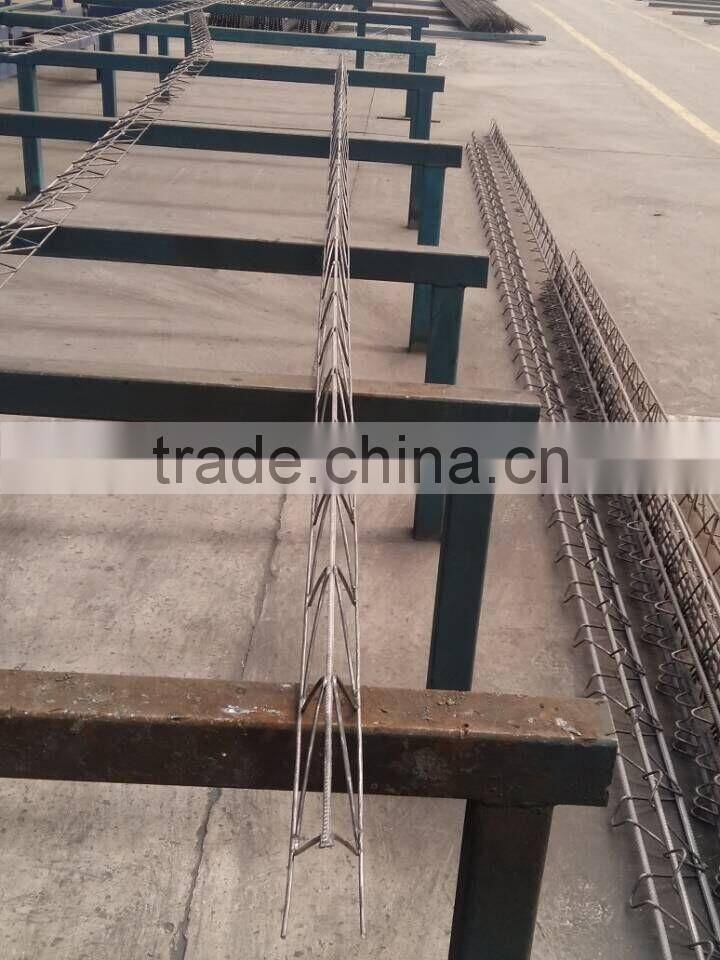

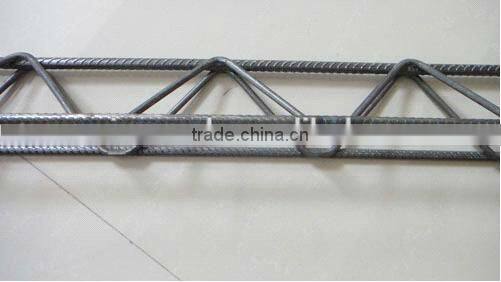

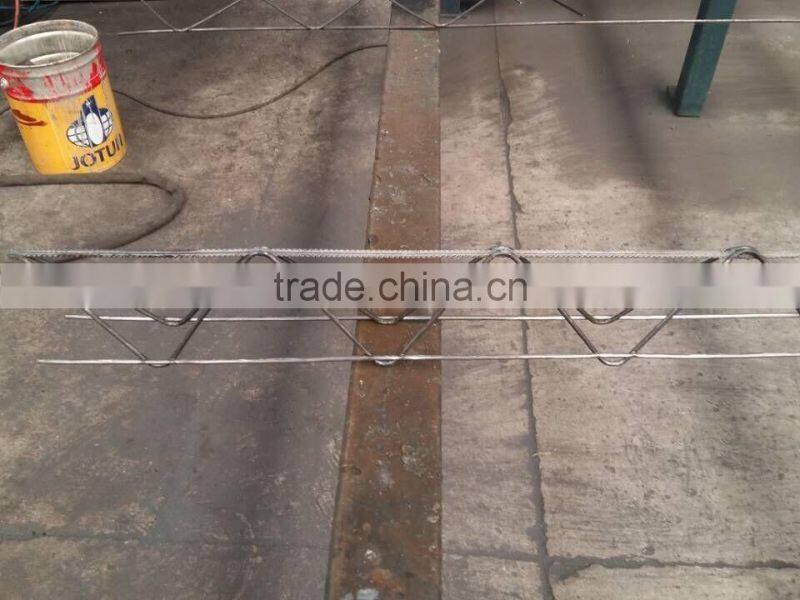

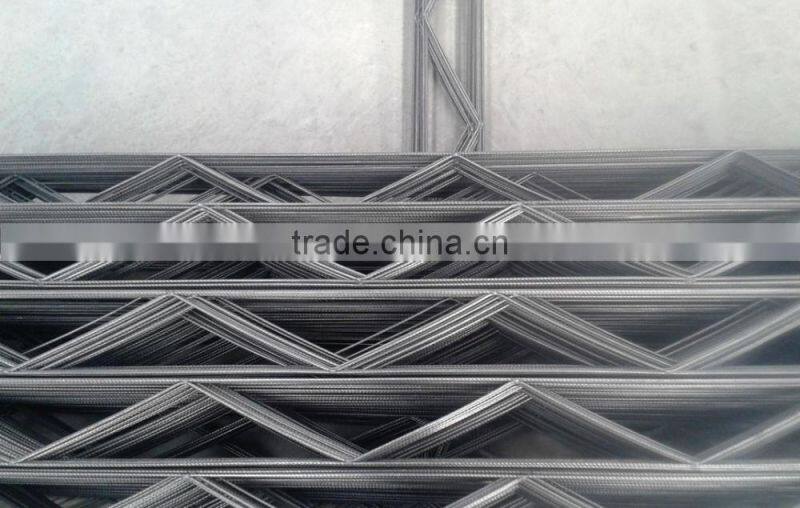

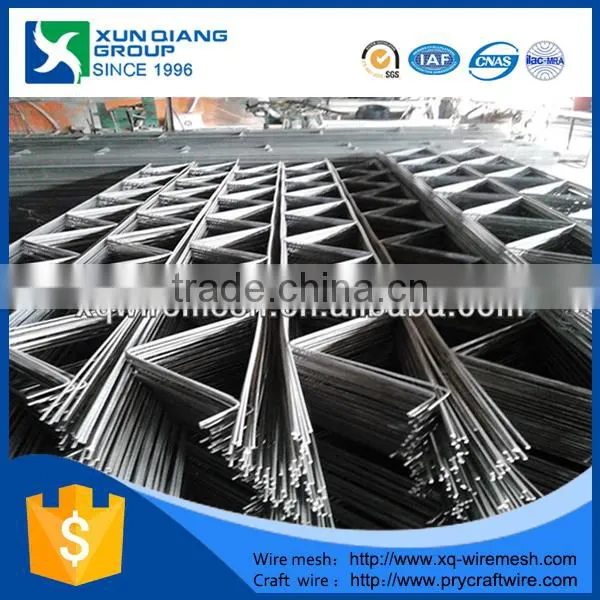

Lattice or Truss Girders are mainly used for the prefabrication of concrete planks, a medullar element in the Hallow Block floor Slab System for constructing concrete slabs. Truss Girders have a triangular shape, are electro-welded and have three deformed longitudinal bars (one upper and two lower). They are joined by a smooth diagonal bar in a zig-zag pattern.

Steel bar Lattice or truss girder is mainly used for the prefabrication of concrete planks,a medullar element in the Hollow Block Floor Slab System for constructing concrete slabs. Truss grider has a triangluar shape, it is welded and it has three defrmed longitudinal bars(one upper and two lower). They are joined by a smooth diagonalbar in a zig-zag pattern.

Upper Rod(mm): 6-12
Lower Rod(mm): 6-12
Diagonal(mm): 4-7
Pitch Distanc(mm): 190-210 or other required
Height(mm): 100-300 or other required
Width(mm): 25-125 or other required
Length: 200-12000

Applications:

1 Applied to precast slabs, pre-high-speed railway sleeper

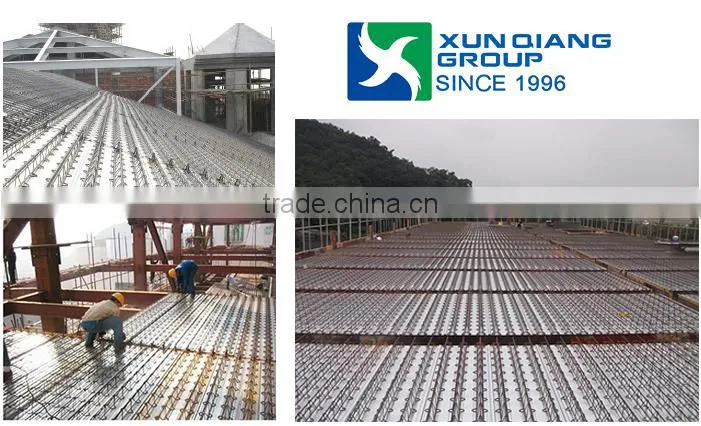

2 Used in many high-rise, ultra- high-rise steel buildings

3 Used for steel building, mezzanine floor of “LOFT”

4 The force applied to the complex, special-shaped structure, building

5 Used in-situ concrete structure(RC) buildings

6 Used in the construction of slope roof structure

Mobile: 0086-15610971700 0086-18632069555

SKYPE: xunqiang6| WhatsApp: 15610971700 | Wechat: 591814752  | Web:

We're not low-end manufacturers!

The low-end producers would not be trusted. The main reason is quality is not stable,

which is the largest problem for many international customers.

There is a small city in China and every family is engaged in welding mesh.

Then these welded mesh are collected by traders and to be OEM sold.

The product quality can not be guaranteed since the supply factory might be to change each time.

Meanwhile, the application process and raw material might be different.

Most customers will come back to us finally.

  ladder mesh/masonry ladder truss mesh/masonry reinforcement/block truss wire mesh/block ladder mesh
1. diameter: 3mm-8mm
2. materials: galvanized steel wire/galvanized iron wire or others

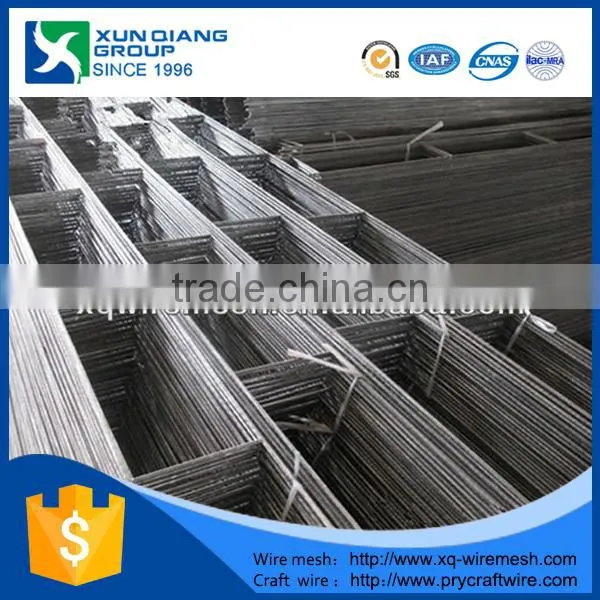

Block work wire mesh and ladder mesh

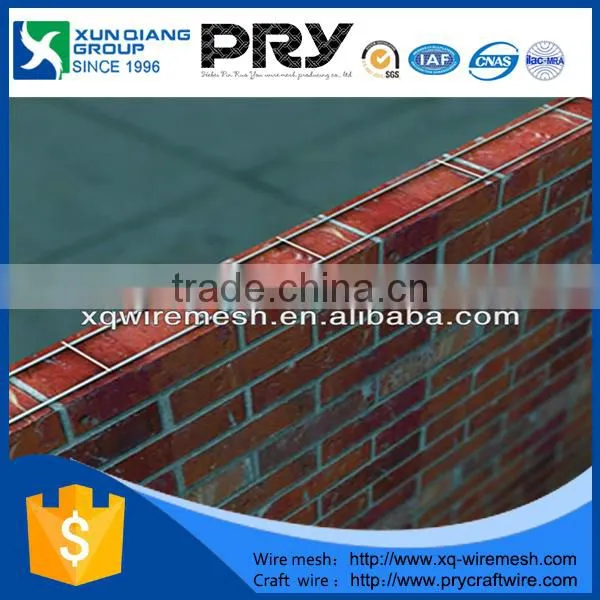

Is widely used in the building construction area, normally used in the wall for reinforcement.

There are several kinds are available:
1. Welded after hot dipped galvanized
2. Welded after electro galvanized
3. Welded before electro galvanized
4. Welded before hot dipped galvanized

Size details: Normally 3 meters long, the space distance is 40cm, and with different
Width 5cm, 10cm, 15cm, 20cm.

We can produce around 5000 pieces per day, with best quality zinc coating - around
400GSM for welded after hot dipped galvanized type.

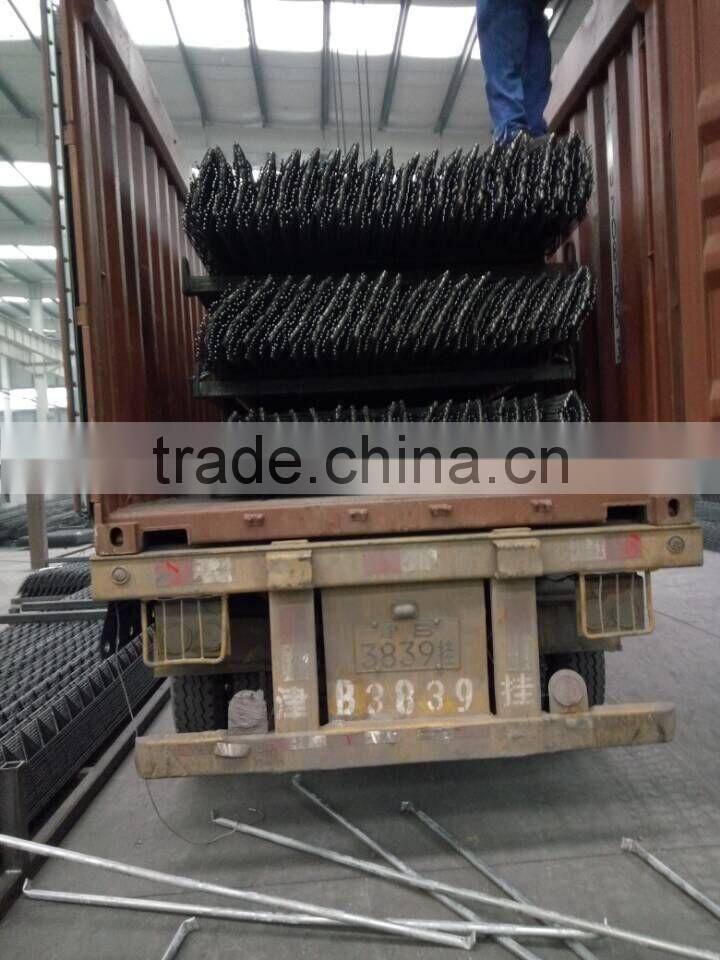

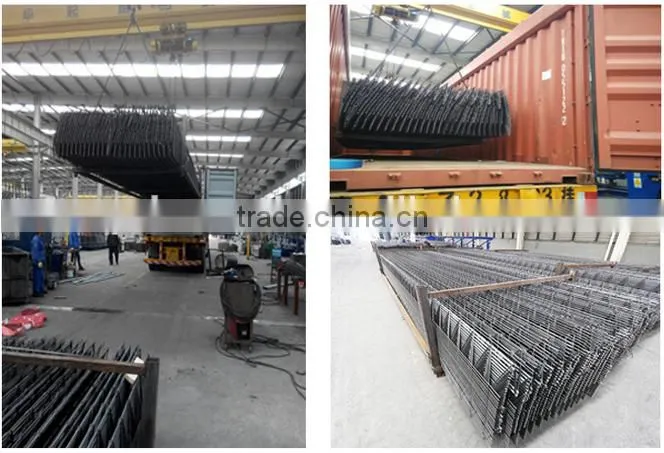

Packing: Every 20 pieces per carton box, one 40 feet container can loading around
22, 000 pieces ( 1100 boxes), more photos about the products and the packing is
Available.

Our services

1. Sample service



Our team are professional maketing composed with power.We are young and capable with experience in different sectors of international trade promote an atmosphere of openness,respect and trust,bringing a sense of teamwork,collegiality and diversity to all we do.In order to our dream,we try our best and persistence,even meet big risk,we also believe that we are the best.
Through it all,we develop strong relationship with each other and we have built long term relationship with our customers.
