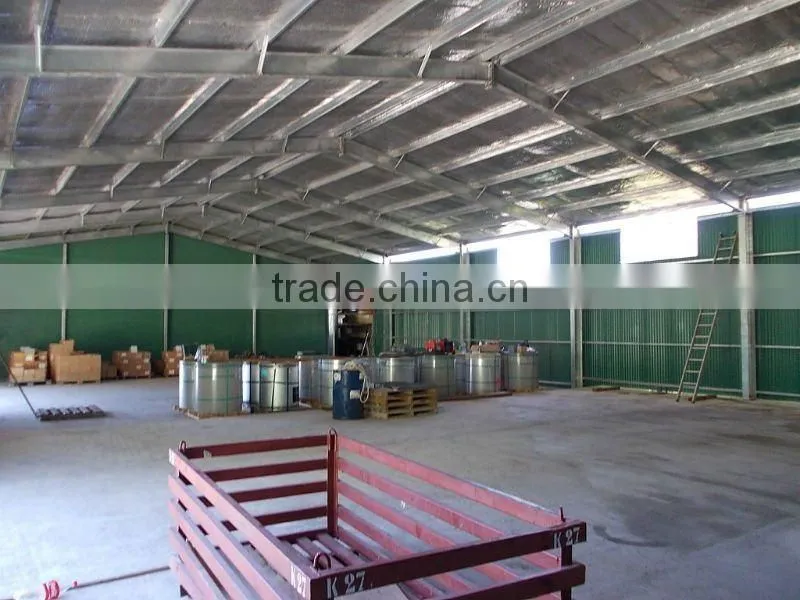

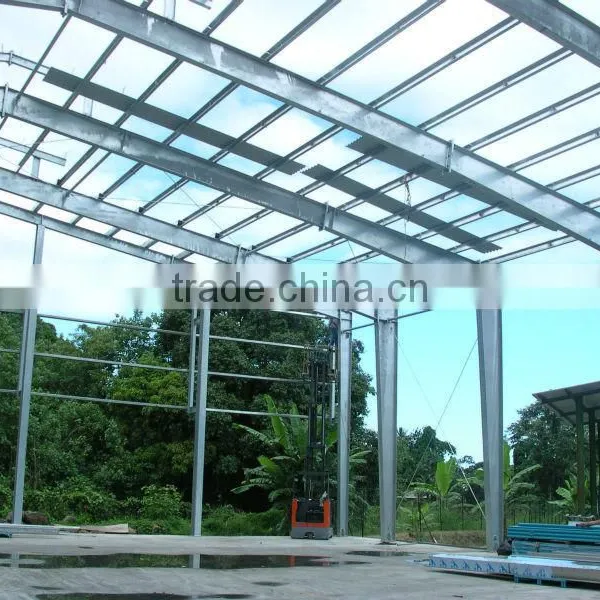

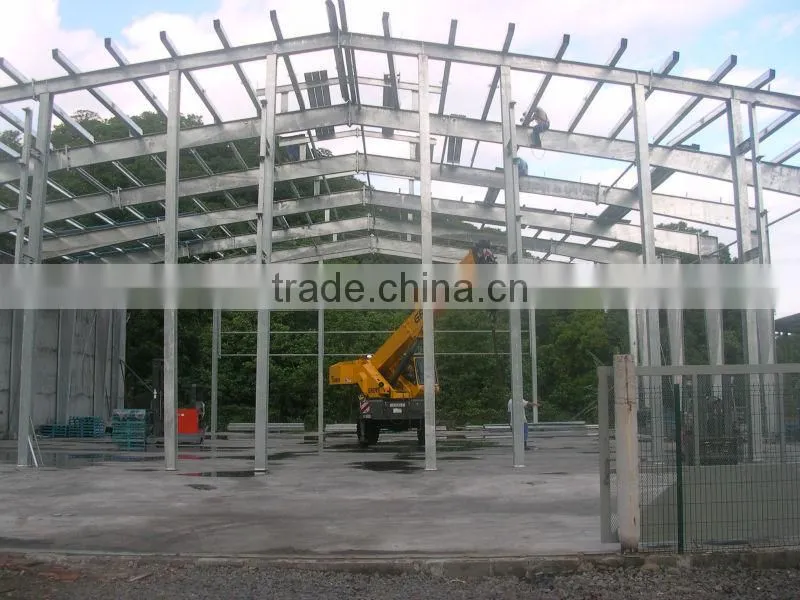

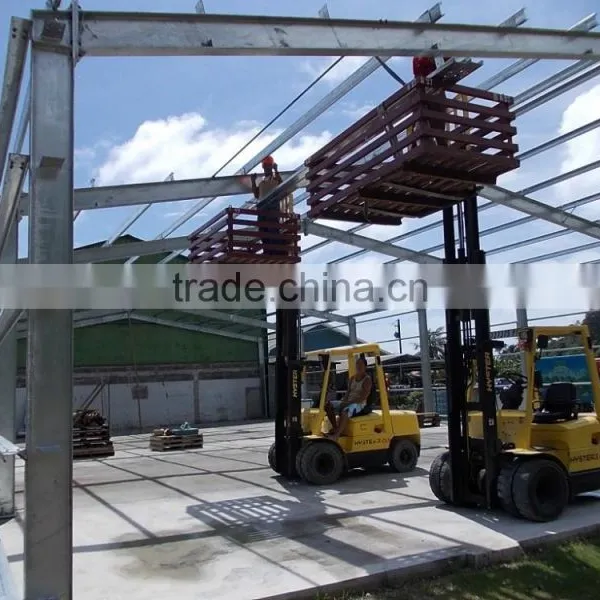

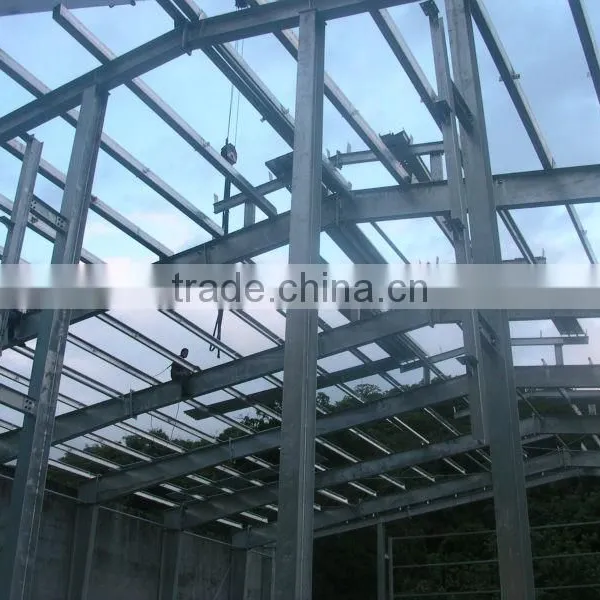

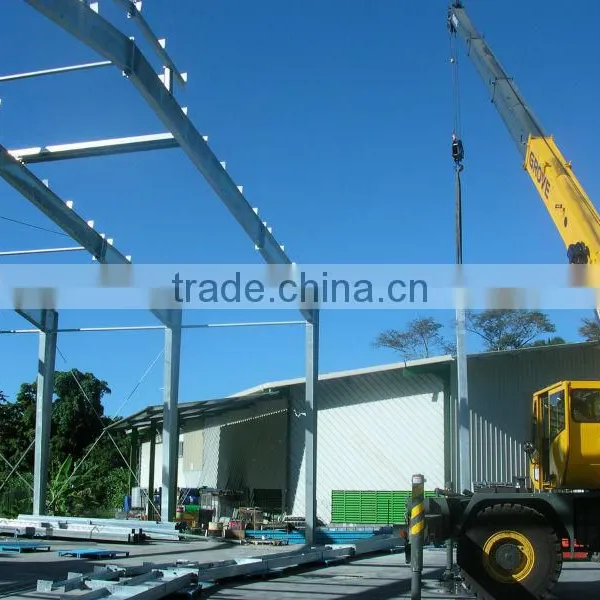

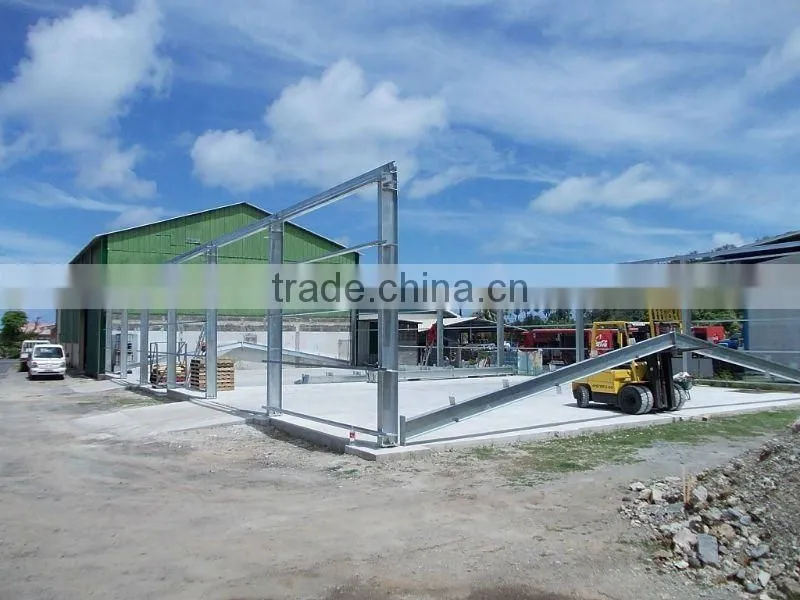

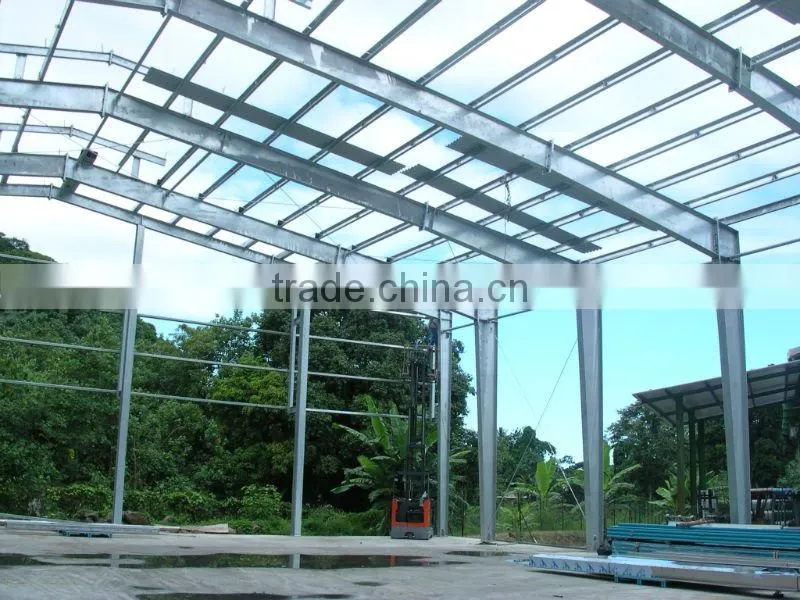

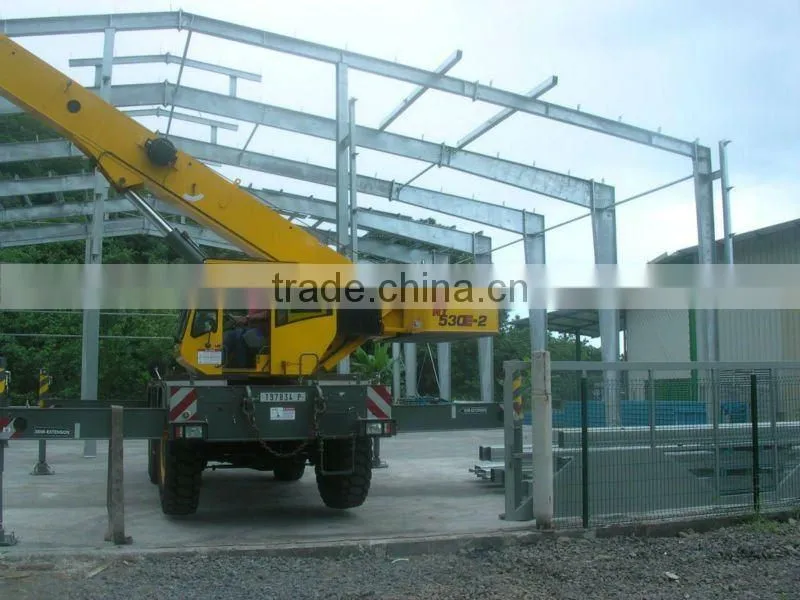

Hot dip galvanized light steel structure qingdao factory

Specifications

1.Environment protective
2.Safe,Low cost
3.Flexible fixing
4.Long sevice life more than 50 years
5.ISO 9001&CE certificate



Light steel structure house is made of light steel structure and sandwich panels for wall and roof. The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation.



The standard light steel structure prefabricated house is made by 1.8m as one modular, and components connected by bolts. The house can be assembled and disassembled more than 6 times, and the service life is more than 20 years.





Steel structure design common norms are as follows:







"Steel Design Code" (GB50017-2003)



"Cold-formed steel structure technical specifications" (GB50018-2002)



"Construction Quality Acceptance of Steel" (GB50205-2001)



"Technical Specification for welded steel structure" (JGJ81-2002, J218-2002)



"Technical Specification for Steel Structures of Tall Buildings" (JGJ99-98)







Commonly used steel grades and performance of steel







Carbon structural steel: Q195, Q215, Q235, Q255, Q275, Q345,etc.



High-strength low-alloy structural steel



Quality carbon structural steel and alloy structural steel



Special purpose steel





The characteristics of the standard prefabricated house are:



1. Environment protective, no garbage caused
2. Doors, windows and interior partitions can be flexibly fixed
3. Beautiful appearance, different colors for the wall and roof.
4. Cost saving and transportation convenient
5. Anti-rust and normally more than 20 years using life
6. Safe and stable, can stand 8 grade earthquake.





Characteristics:



No base work involved

Environment protective, no garbage caused

Doors, windows, and interior partitions can be flexibly fixed

Beautiful appearance, different colors for the wall and roof

Cost saving and transportation convenient

Anti-rust and normally more than 20-50 years using life

Safe and stable, can stand 8 grade earthquake









Quotation



Below info needed for the quotation:



Project Name	steel structure house
Size	total length and width, roof and eave height, roof pitch, etc
Roof and Wall	option: EPS, fiber glass, rock wool or PU sandwich panel
Door and Window	PVC or Aluminum alloy; sliding door or rolled door
Column and Beam	option:hot rooled or welded H section, I section; painting or galvanized
Purlin	option:C-Section or Z-section
Local Climate	d speed   2.snow load  3.rain quantity  4.earthquake grade if have More details is preferred.
Crane Parameter	If need crane beam, crane tons parameter and lift height are needed
Drawing	1. according to clients' drawing
	2. design as per clients' dimension and requests
Package	Naked loaded in shipping container or as per requests.
Loading	20 GP,  40HP, 40 GP,  40 OT

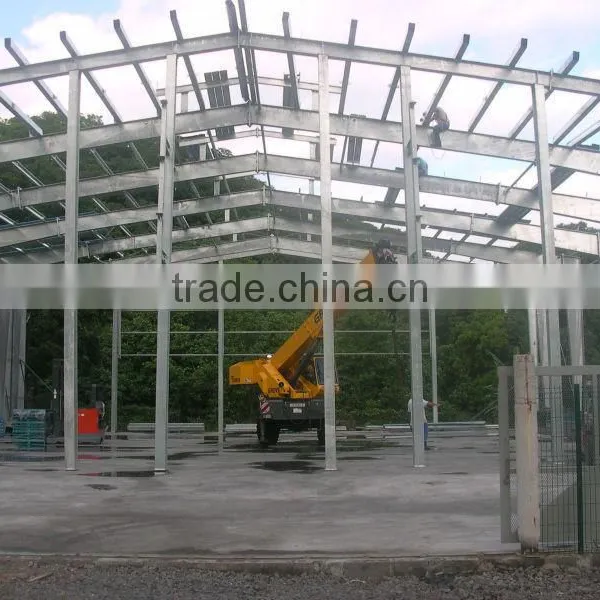

Hot dip galvanized light steel structure qingdao factory



















Materials  (H section)







Corrugated Steel Sheet









Wall  and Roof Panel













Roof Skylight for the lighting

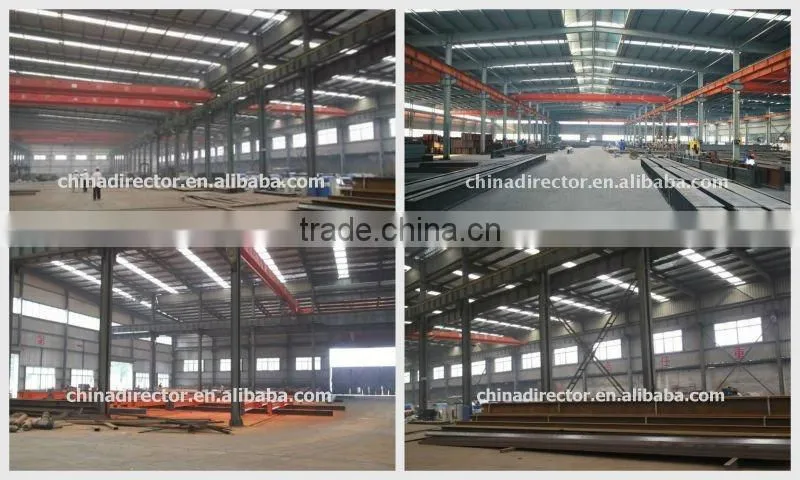

Production







Loading
