Pre engineering steel frame construction building with brick wall :
1. Description of pre engineering steel frame construction building with brick wall:
Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section and U section steel components, roof an walls using a variety of panels and other components such as windows, doors, cranes, etc.
Light steel structure building is widely used in warehouses, workshops, large factories, etc.
2 Characteristics of pre engineering steel frame construction building with brick wall:
1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
2. Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.
3. Fast construction and easy in installation
4. Long term service life: more than 50 years.
5. Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.
3 Main parts of pre engineering steel frame construction building with brick wall:
Name |
Specification |
Length |
Single slope, double slope, muti slope |
Width |
Single span, double-span, Multi-span |
Height |
single floor, double floors |
Column |
Q235, Q345 welding H section steel |
Beam |
Q235, Q345 welding H section steel |
Purlin |
Q235 C channel or Z channel |
Knee brace |
Q235 angle steel |
Tie bar |
Q235 steel pipe |
Brace |
Q235 round bar |
Cladding system |
sandwich panels (EPS, PU, Fiber glass wool etc.) or can use corrugated steel sheet with fiber glass wool insulation and steel wire gauze. |
Partition wall |
sandwich panels (EPS, PU, Fiber glass wool etc.) |
Ventilation: |
ventilator |
Door |
sandwich panel sliding door or roller door |
Gutter |
stainless steel or color steel sheet |
Rainspout: |
PVC |
Live load on roof |
In 120kg/Sqm (Color steel panel surrounded) |
Wind resistance grade |
12 |
Earthquake-resistance |
8degree |
Structure usage |
Up to 50 years |

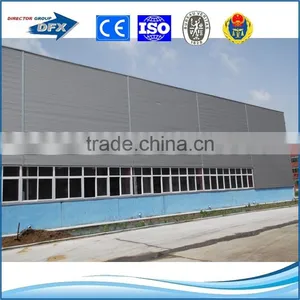

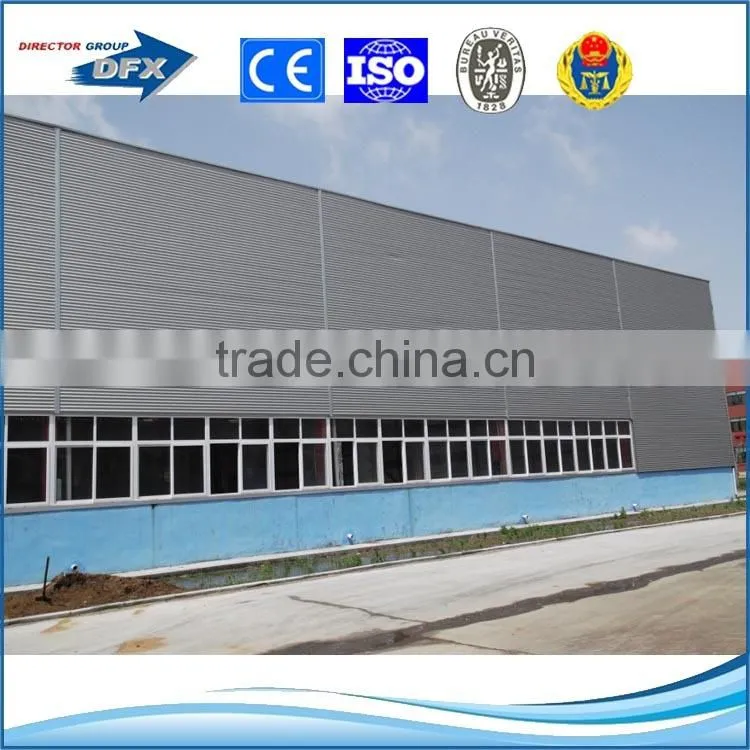

4 Pictures of pre engineering steel frame construction building with brick wall :
Oversea projects we undertook in the last few years:
Industrial Warehouse (13000 M2 )—Brazil
Warehouse (14000M2)---- Georgia
Workshop (12000M2)----France
Warehouse(3600M2)---Belerus
Vegetable Market(2500M2)---- Mauritius
Pig shed(3500M2)---Australia
Chicken shed(2800M2)—Philippines
Aircraft Hangar(1300M2)------Maldives
Warehouse(900M2)---- Russia
Prefabricated house(70M2)----800 sets---Angola
Container house(20’)-----60 sets—Australia
We can provide the quotation , if you confirm the information as bellow:
*Wind speed(KM/H)
*Snow load (KG/M2)
*Rain load (KG/M2)
*Earthquake load if have
*Demands for doors and windows
*Crane (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!

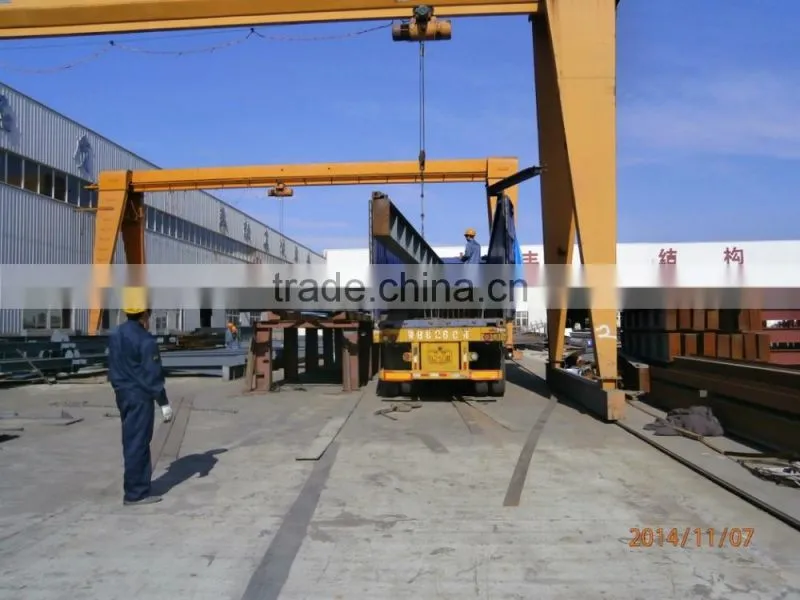

Loading pictures of pre engineering steel frame construction building with brick wall :
Name: Wilfred Wu
Office tele: +86 532 66710825
Mobile : +86 13583256881 (viber & whatsapp)
Skype : newwilfred
