Luxury Cheap Flat Pack Container House

General

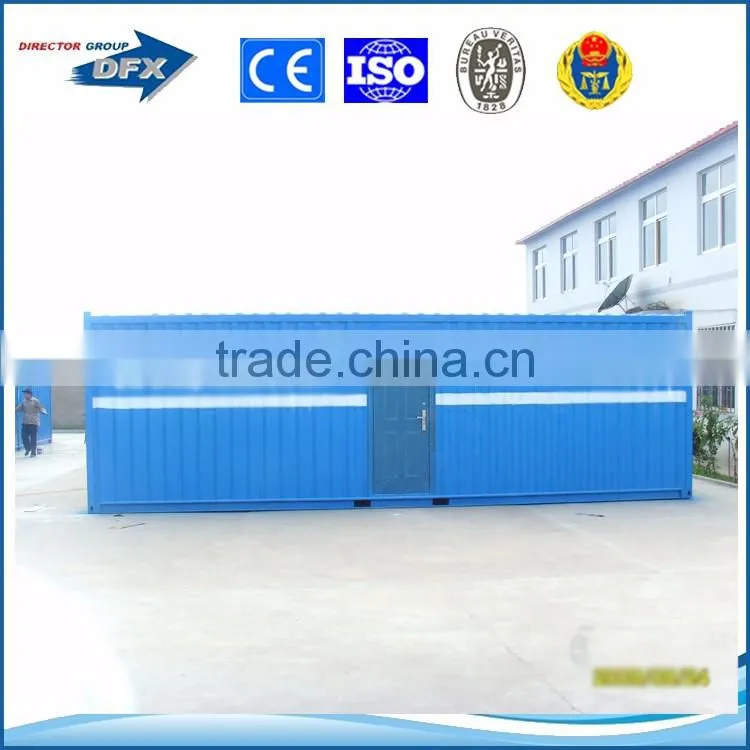

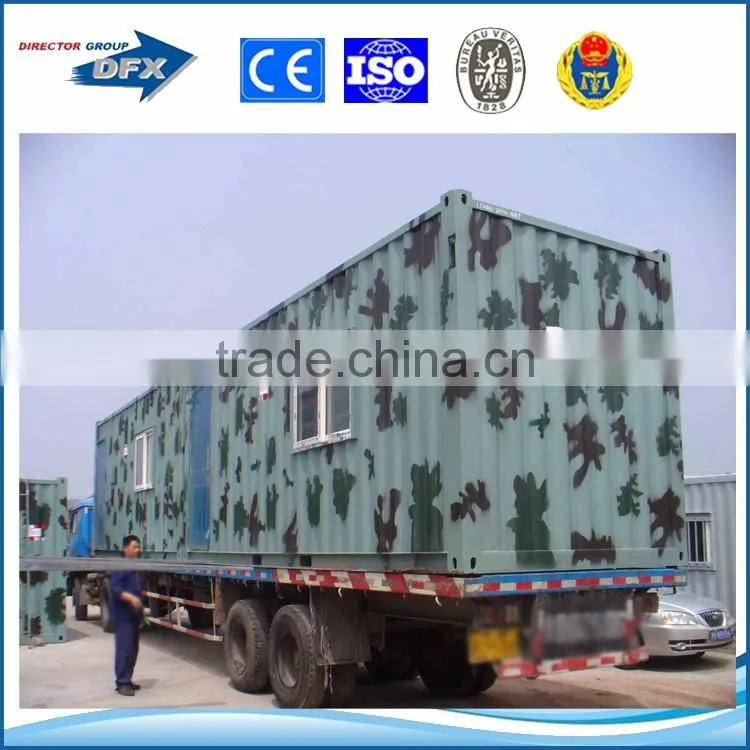

  This kind of container house is convenient in lifting and removes. The construction of the house enables its compounding in longitudinal and transverse directions without limits, also enables compounding of containers into 2 floors (ground floor + first floor), or more. The frame of container house is welded container, including wall, roof and four corner pillars. The building materials and its specific physical properties offer a comfortable indoor condition and suit to various purposes. And all the materials used are environmental friendly.

20 Feet Container’s Dimensions and Weight

       1,Inner length /external length :5.71m/6.06m

       2,Inner width /external width 2.188m/2.438m

       3,Inner height/external height:2,330m/2.591m

       4,Weight: 2000kg per unit

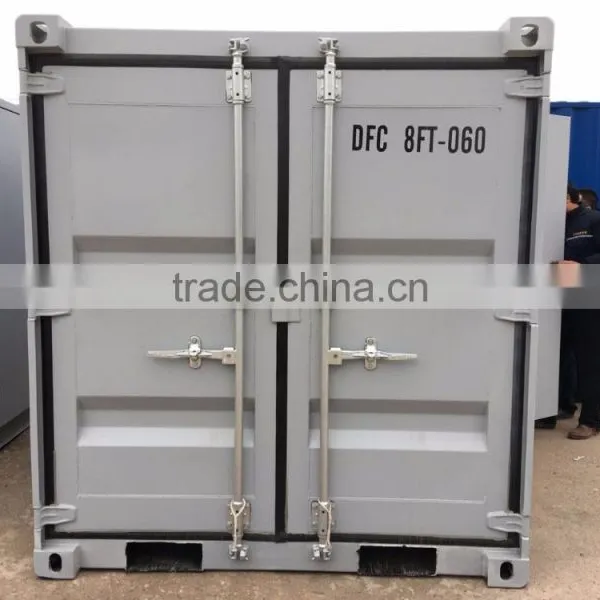

       5,Size can be also 10 feet, 40 feet or customized.

Steel framework

      1,Pillar material: Light steel structure, steel material Q235, thickness 3.5mm

      2,Roof and wall steel material: 1.2mm stamped corrugated steel panel

      3,Surface working: sand blasting, epoxy basic painting 55μm, final vinyl acrylic painting 55μm thick

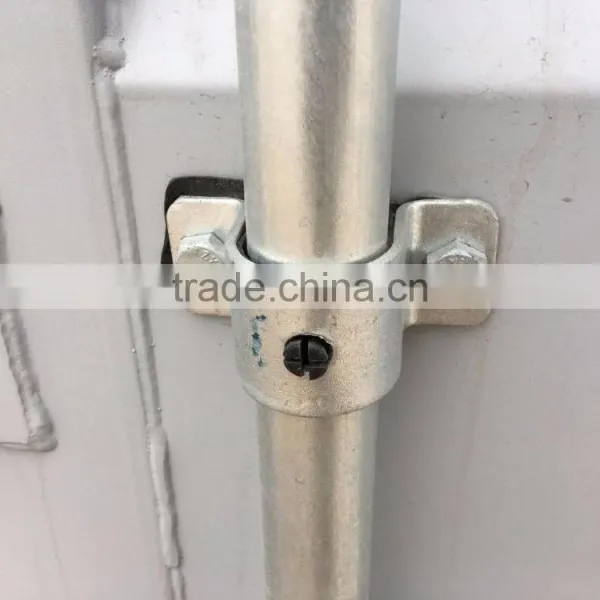

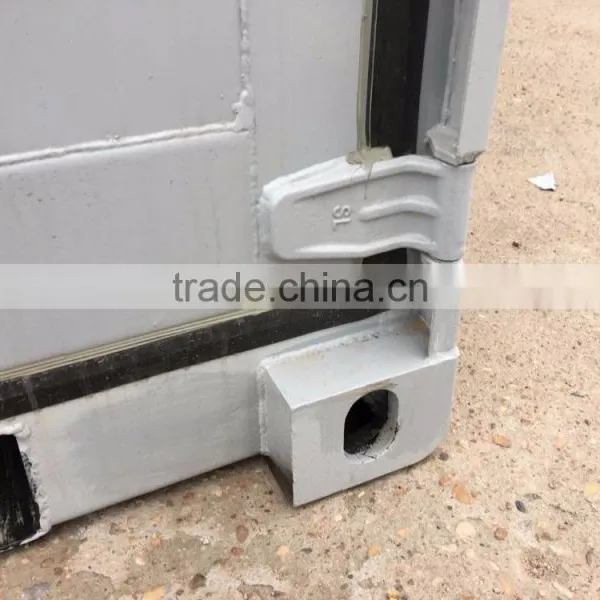

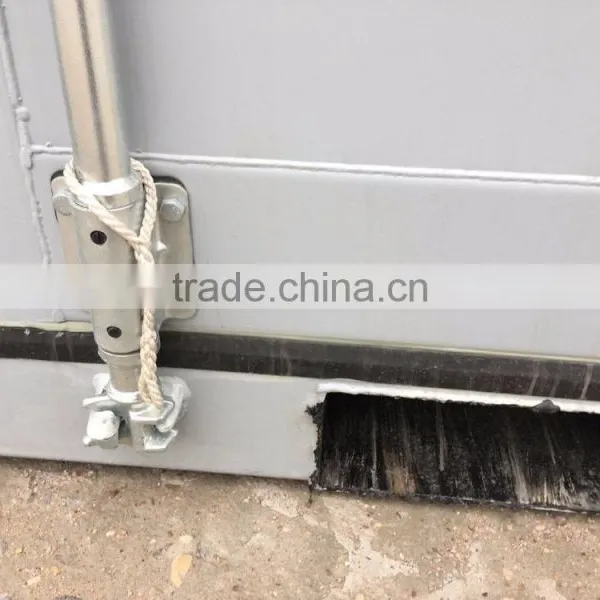

      4,Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe

      5,Forklift openings: size 100*250mm, distance is 1200mm

Floor

      1,External wainscot: Flat galvanized color steel sheet metal, 0.4mm thickness

      2,Floor structure: Down girder is channel steel 16#, the purlin of the floor is square pipe in 60x40x1.5mm/80x40x2.0mm

      3,Warm proof insulation fitting: 50mm XPS/50mm rock wool/50mm PU

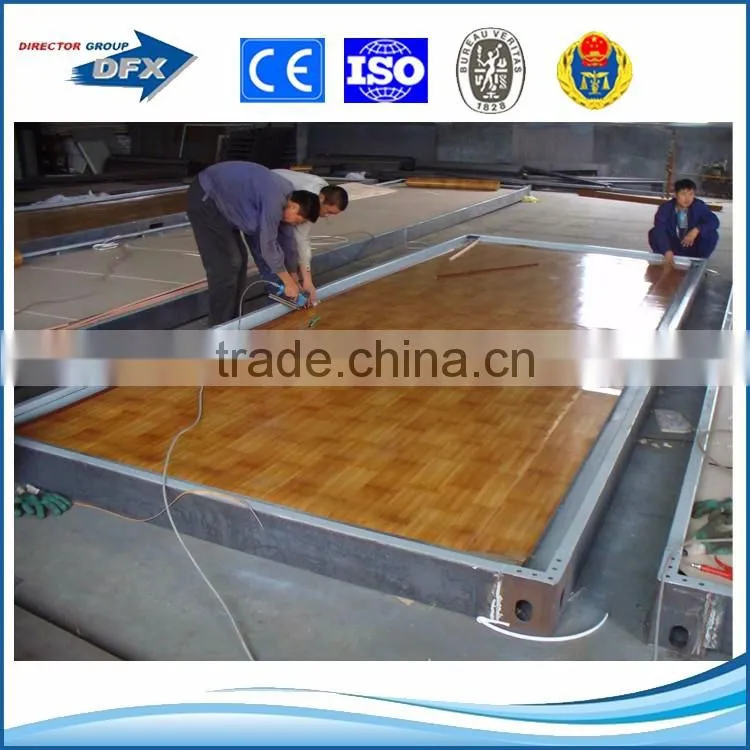

      4,Floor: 18mm plywood panel for the general room (20-40mm cement board and ceramic tile will be added in WC, kitchen and other room that need water proof)1.5-2.0mm thick PVC floor leather for living rooms

      5,Permitted loading: 2.0KN/m²

      6,Coefficient of thermal conductivity: K=1.1W/ m2K

Ceiling

Construction:

        1,Girder is square tube 70x50x2.5mm.

     2,Roof exterior: 1.2mm steel plate

     3,Warm proof insulation filling: 75mm rock wool/50mm PU/75mm EPS

     4,Inner wainscot:  4mm MDF decorative with wall paper or PVC

     5,Permitted live loading: 0.5 KN/m²

     6,Coefficient of thermal conductivity: K=0.55W/ m2K

Walls

Construction:

      1,External wainscot: Galvanized and painted (29μm) stamped corrugated steel panel, 1.2mm thickness.

      2,Warm proof insulation filling: Rock wool 75mm thickness/50mm PU/75mm EPS

      3,Internal wainscot: plywood with decoration veneer

      4,Permitted loading: 1.0KN/m²

      5,Coefficient of thermal conductivity: K=0.442W/mk

Door

     1, External door: steel security door opening dimension 850*2100mm, with lock and keys.

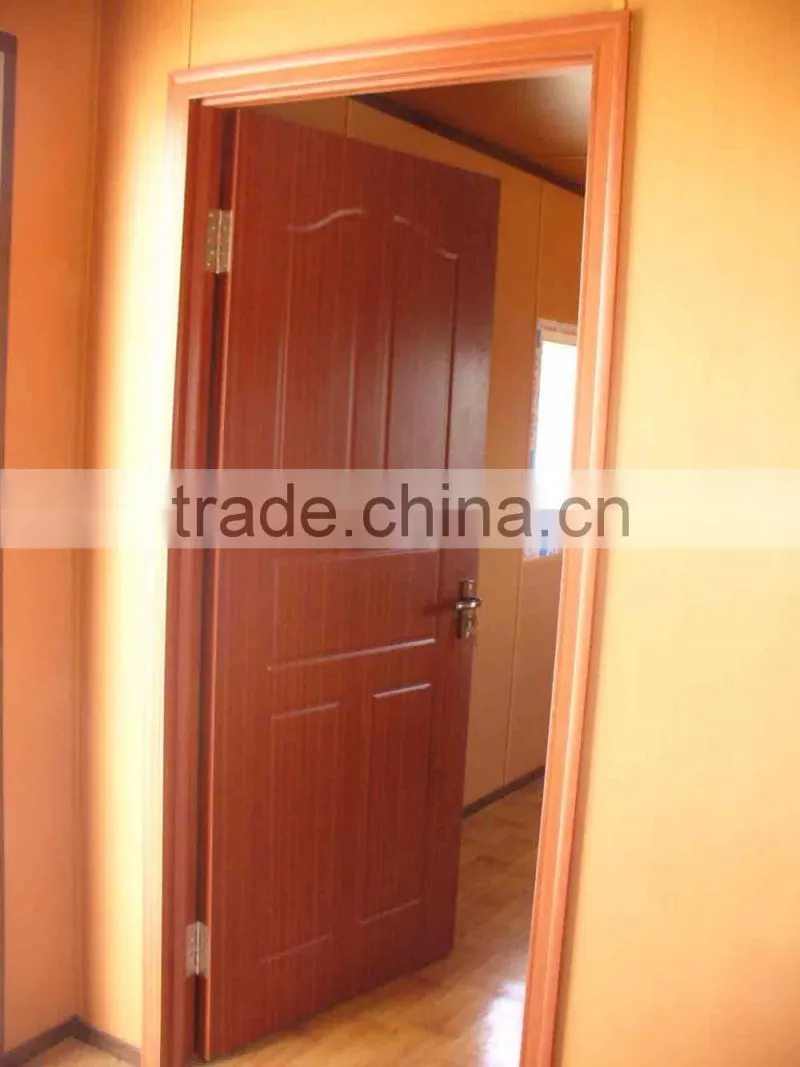

     2,Could be wood door or steel door or sandwich panel door.

Windows

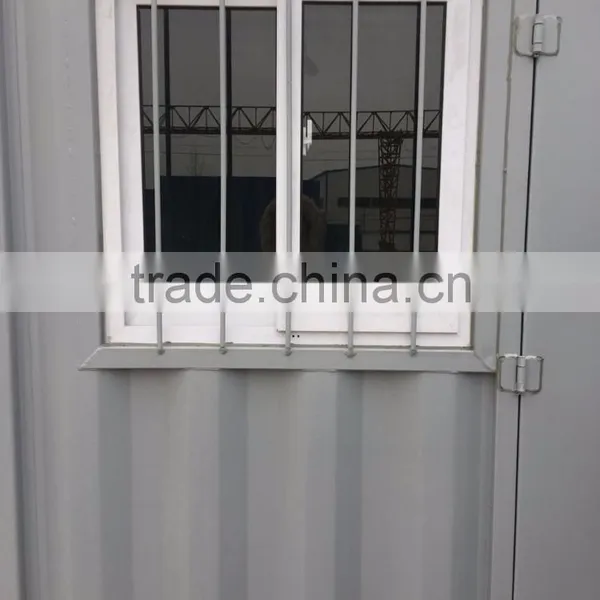

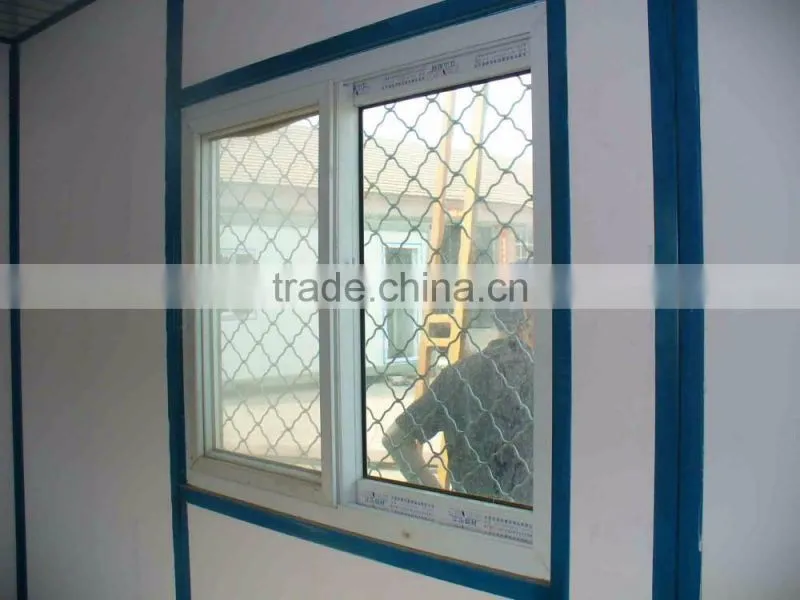

         Window material: PVC, white color, dimension 1130*1000mm, glass thickness: 3mm, sliding window with fly screen and grill guard.

         Or PVC windows with rolling shutter,

         Or other kind of window confirmed with client

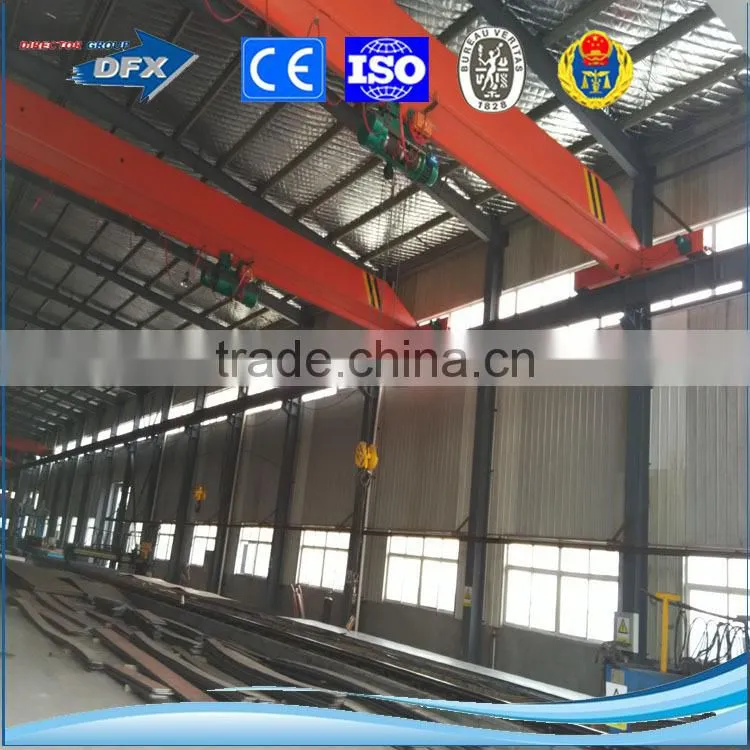

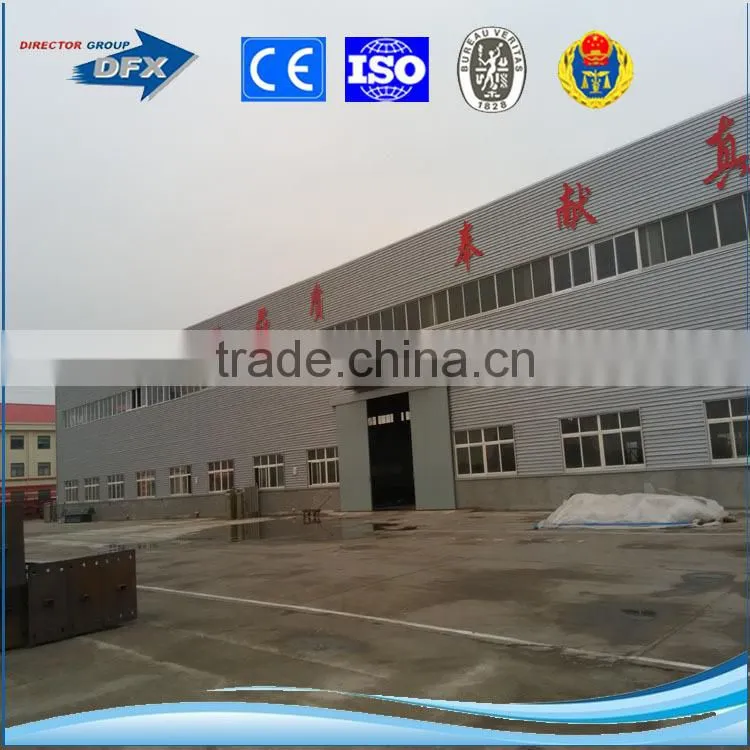

  Director Group Co., Ltd. is a China based manufacturer of steel structure building, prefabricated house and related steel products. Our products include the prefabricated house, steel structure building, container house, modular house, light steel villa, sandwich panels, and profiled steel, etc.  We have exported our products to over 40 different countries around the world.
