Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Hydraulic Cylinder

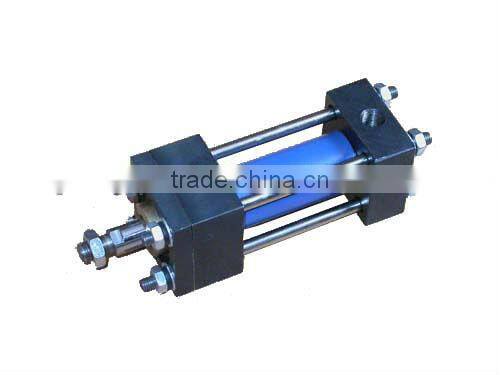

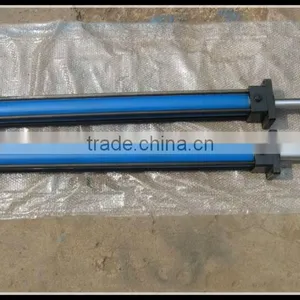

Hydraulic Cylinder

Name: Hydraulic Cylinder
Brand: Chinabase
SKU: 140333048
Availability: InStock

US$ 10 - 100 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Standard or Nonstandard:

Nonstandard

Structure:

Piston Cylinder

Power:

Hydraulic

Contact Supplier Request Quote Chat Now

Hangzhou Chinabase Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Nonstandard

Structure Piston Cylinder

Power Hydraulic

Body Material Steel

Maximum Stroke according to request

Shaft Diameter according to request

Place of Origin Zhejiang, China

Brand Name Chinabase

Specifications

HYDRAULIC CYLINDER
1.this product can undertake highly of pressure
2.low price and high quality

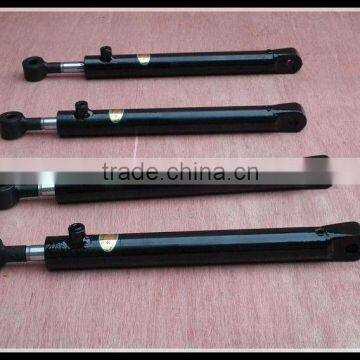

Hydraulic Cylinders
-Used in Agriculture,Construction,Trailers,truck ,Forestry,Mining,etc.

Working Pressure: 2500PSI (21MPa) ~ 4000PSI (28MPa).
Working Temperature: -20^oC ~ 100^oC.

Size:

Bore Size -- 20mm ~ 200mm (0.5" ~ 10")

Stroke-------- 100mm ~ 8000mm (2"" ~ 310")

engineering oil cylinder

The oil cylinder and hydraulic station is generally applied in metallurgy machines, cutting machine, vehicle assembly line and engineering machines Operating Speed Range(Not including Cushion Parts): less than 200mm/s(We can also supply other speed range accoding to customer's requirments)

Operating Temperature(Ambient Temperature and Oil Temperature): -10 to +80 ºC(But do not use when oil frozen). If you are intersted in our products or have other request about operating temperature range, pls don't hesitate to contact us.

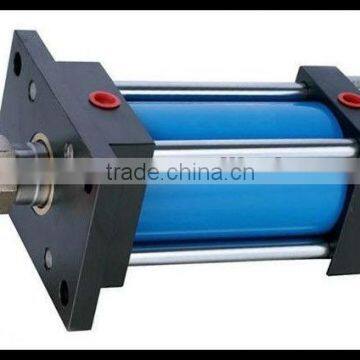

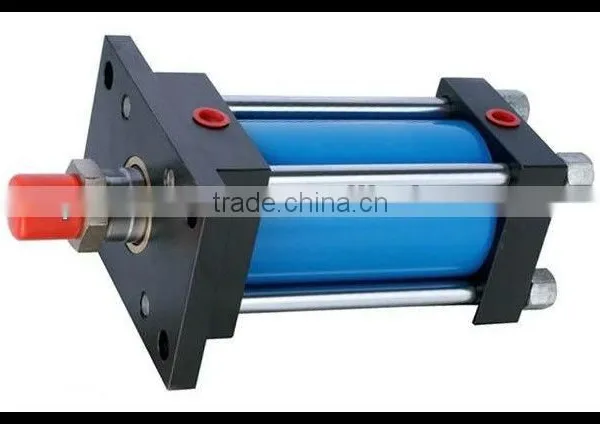

YGD series basic oil cylinder

The oil cylinder and hydraulic station is generally applied in metallurgy machines, cutting machine, vehicle assembly line and engineering machines

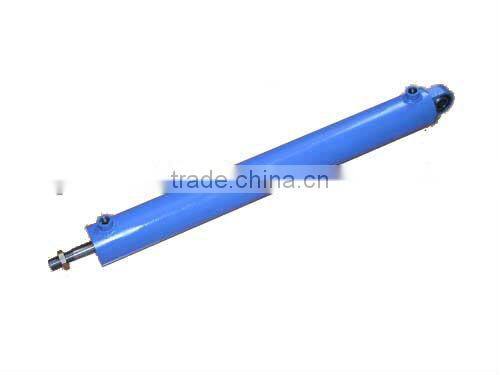

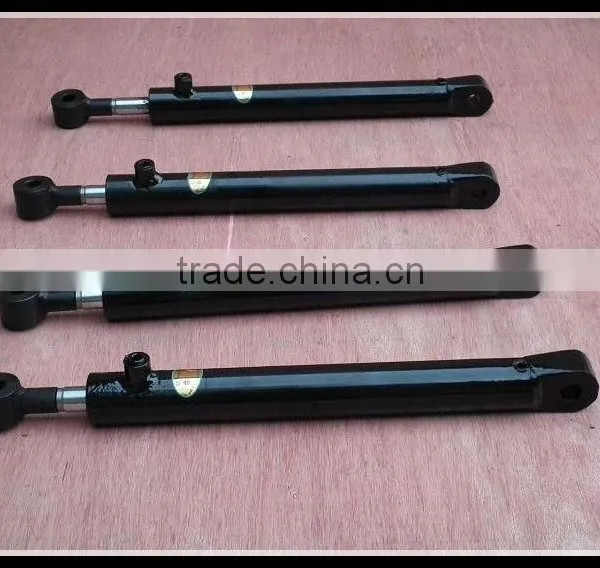

vehicle oil cylinder

metallurgy hydraulic cylinder

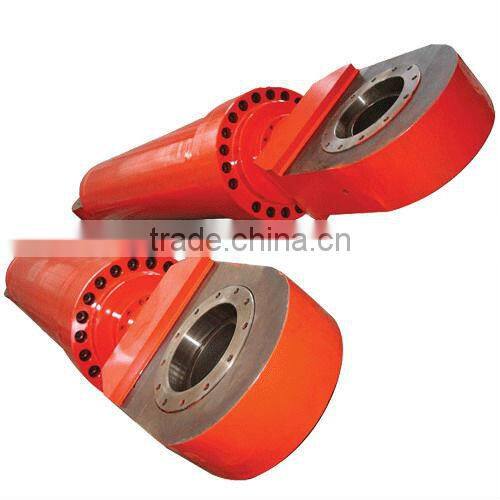

metallurgy equipment hydraulic cylinder :
1:Pressure: the standard cylinder had two kinds of pressure levels for E and G. E-class applied to pressure more than 6.3 Mpa ~ 16Mpa of the hydraulic cylinders (E-cylinder).G class applied to pressure more than >16Mpa~25Mpa of the hydraulic cylinders (G-cylinder).
2. Seal: E-cylinder used simple structure, good wear resistance, Y-shaped polyurethane ring and the wide application of the Y-shaped rubber ring. G-cylinder use high temperature resistantce,reliable combined seal in V-ring.
3. Dustproof : The hydraulic cylinders adopted polyurethane or rubber free- skeleton dust ring.
4. Applicable media: hydraulic oil, machine oil, emulsion, Inapplicable to organic phosphate .
5.Applicable temperature:-40 -+120
