Help CenterVertical Multistage Pump
Related Products
Specifications

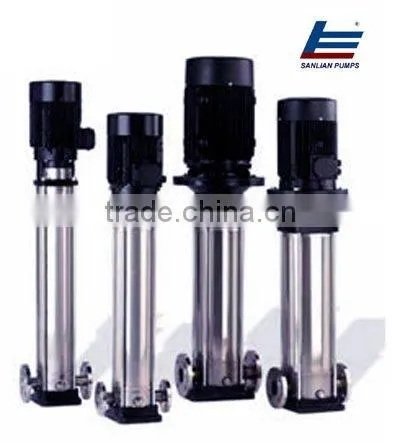

CDL,CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor.CDL,CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. The motor output shaft directly conects with the pump shaft through a coupling. The pressure resistant cylinder and flow passage components are fixed between pump head and inlet & outlet section with tie-bar bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent if from dry-running,out-of-phase and overload.
The Motor:
Full-enclosed air-blast two-pole standard motor
Protection class: IP55
Insulation class: F
Standard voltage: 50HZ 1×220-230/240V
3×200-220/346-380V
3×220-240/380-415V
3×380-415V
Standard voltage: 60HZ 3×200-230/346-400V
3×200-255/380-440V
3×200-277/380-480V
Application:
Water supply
Industrial boosting
Industrial liquid conveying
Water treatment
Irrigation
