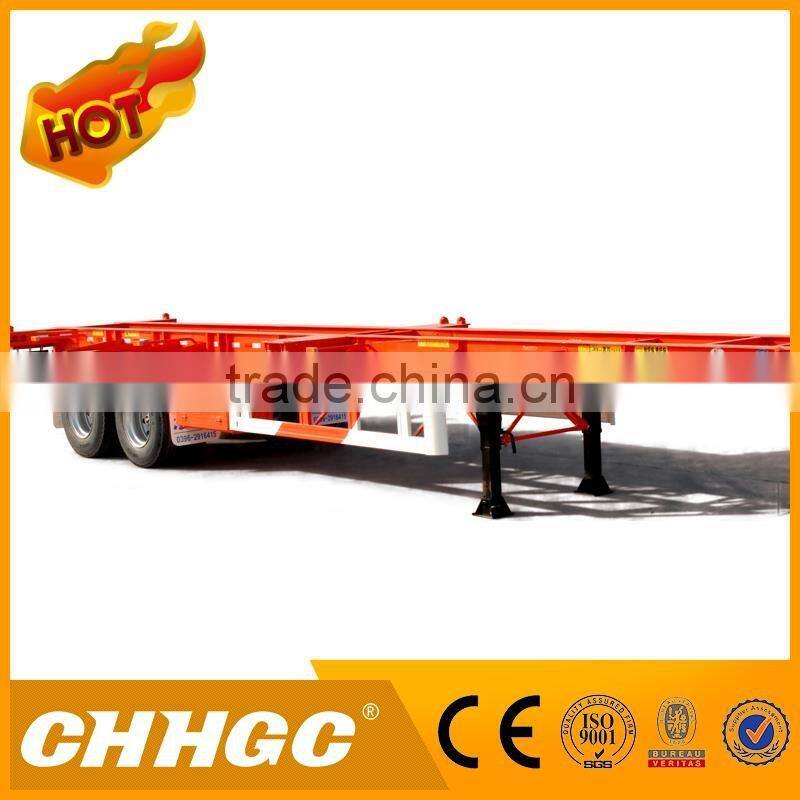

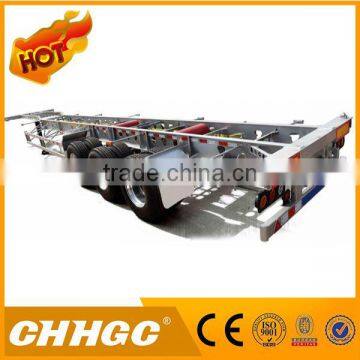

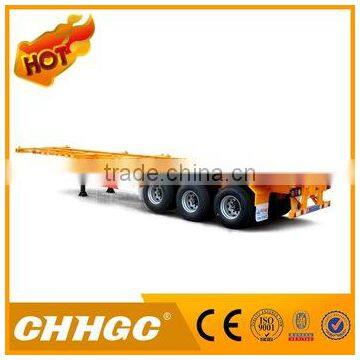

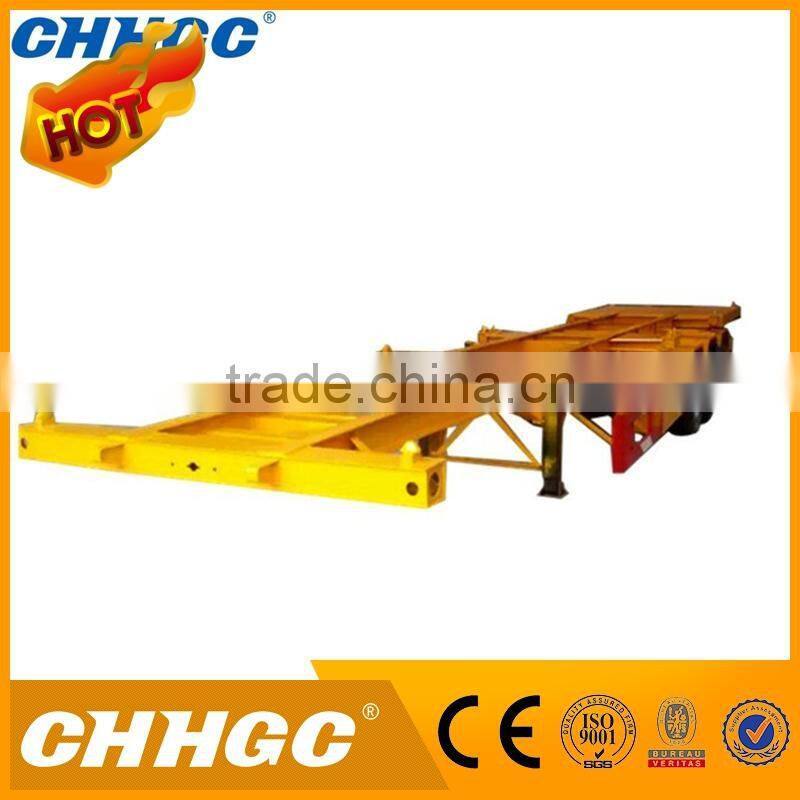

New Design 40t Skeleton Container Semi Trailer for Sale for Wholesales
US$ 14,500 - 15,500
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Semi-Trailer
Material:
Steel
Certification:
Other, CE, ISO9001, CCC, SGS
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port or any other you want
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price Flatbed Semi Trailer Rentals for WholesalesUS$ 12,500 - 15,500MOQ: 1 Unit -
40Ton Low Loader Semi Trailers Light Loading TrailersUS$ 18,500 - 22,500MOQ: 1 Unit
-
Hot Selling Oil Tanker Truck for WholesalesUS$ 20,000 - 30,000MOQ: 2 Pieces
-
Hot Selling Gasoline Tankers for Sale With CE CertificateUS$ 20,000 - 30,000MOQ: 2 Pieces
-
Brand New Tanker Truck Parts With Low PriceUS$ 20,000 - 30,000MOQ: 2 Pieces
Type
Semi-Trailer
Material
Steel
Certification
Other, CE, ISO9001, CCC, SGS
Size
12450*2490*1575mm
OEM No.
HHZ9392TJZ
Max Payload
39.2T Skeleton Trailer
Place of Origin
Henan, China
Brand Name
CHHGC
Model Number
HHZ9392TJZ
New design 40t skeleton container semi trailer for sale for wholesales
P
Product Information
1. Side member of upper camber structure : As per the mechanical analysis,the unique overall camber structure of the longitudinal beam is adopted to ensure lifetime downward bending free of crossbeams and effective save fuel consumption under same bearing load and build maximum economic value for users.
2. Sophisticated process: The main parts of the vehicle are fabricated by advanced equipment.The longitudinal beams are welded by imported fully automatic tracking submerged arc welding machine.The wheels and axles are assembled by assembly machine and the wheelbase is guaranteed by distance measuring equipment.
3.Suspension system: The characteristic new suspension system and imported US Holland suspension system feature balanced load among various axles.The tie rod angle of system is reasonably designed to reduce the instant friction between tire and ground and the abnormal tire wear during the frequent operation.The snap rings for shafts are one of integral casting.
4.Axles: The axles choose the quality products manufactured by professional factory,featuring high bearing capacity and difficult deformation.In addition,the optional antilock brake system(ABS) from domestic or foreign renowned brand can effectively eliminate the side slip and drifting of vehicle due to locking of wheels in event of emergency braking and improve the driving safety of the vehicle.
5.Light of dead weight: The partial weight reduction is conducted in multiple portions on the premises of guaranteeing the structural strength.While reducing the dead weight,the bearing capacity is effectively guaranteed.
6.Low bearing surface: The optional goose neck structure of beam effectively reduces the height of bearing surface,lowers the gravity center,and improves the transport safety.
7.Humanized design:
→ The limiter is added to the spin lock to ensure safer transport;
→ The design of spin lock handle features beautiful and elegant and easy operate;
→ The operating handle of front enclose spin lock is located within the front enclosure frame,in order to prevent the handle from scratching the accessories of main unit.
→ Two positioned three-way valve is added to the brake system to improve the safety of parking brake.
8.Electric system: The electric system adopts the genuine fully sealed harness from domestic renowned brands.The lamps adopt new LED lamp,featuring high illumination intensity and light perception,high mist penetration,stale working performance and long service life.
3.Suspension system: The characteristic new suspension system and imported US Holland suspension system feature balanced load among various axles.The tie rod angle of system is reasonably designed to reduce the instant friction between tire and ground and the abnormal tire wear during the frequent operation.The snap rings for shafts are one of integral casting.
4.Axles: The axles choose the quality products manufactured by professional factory,featuring high bearing capacity and difficult deformation.In addition,the optional antilock brake system(ABS) from domestic or foreign renowned brand can effectively eliminate the side slip and drifting of vehicle due to locking of wheels in event of emergency braking and improve the driving safety of the vehicle.
5.Light of dead weight: The partial weight reduction is conducted in multiple portions on the premises of guaranteeing the structural strength.While reducing the dead weight,the bearing capacity is effectively guaranteed.
6.Low bearing surface: The optional goose neck structure of beam effectively reduces the height of bearing surface,lowers the gravity center,and improves the transport safety.
7.Humanized design:
→ The limiter is added to the spin lock to ensure safer transport;
→ The design of spin lock handle features beautiful and elegant and easy operate;
→ The operating handle of front enclose spin lock is located within the front enclosure frame,in order to prevent the handle from scratching the accessories of main unit.
→ Two positioned three-way valve is added to the brake system to improve the safety of parking brake.
8.Electric system: The electric system adopts the genuine fully sealed harness from domestic renowned brands.The lamps adopt new LED lamp,featuring high illumination intensity and light perception,high mist penetration,stale working performance and long service life.
P

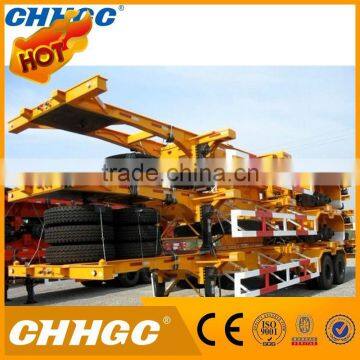

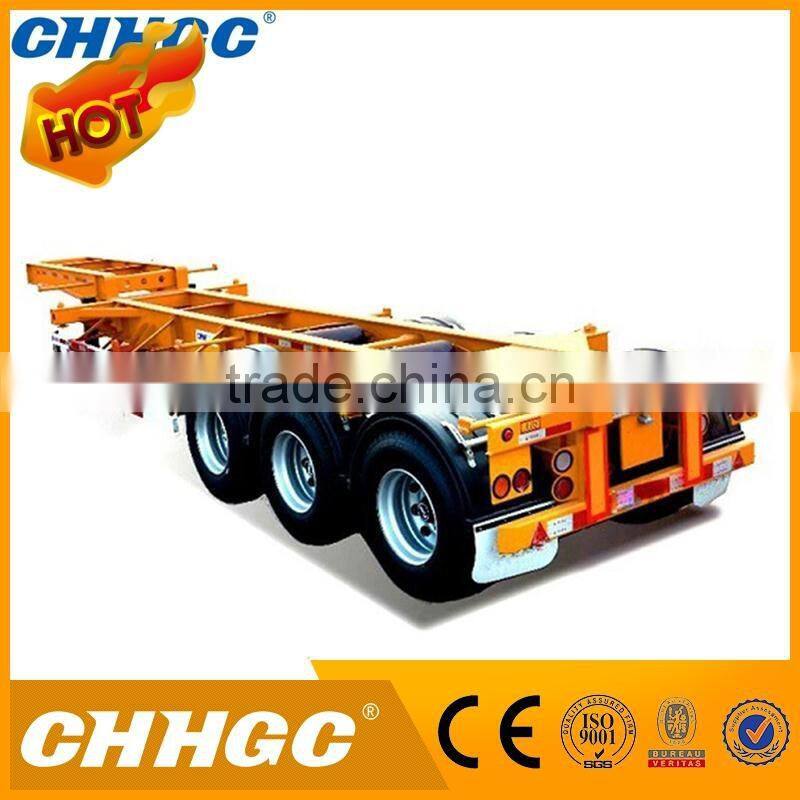

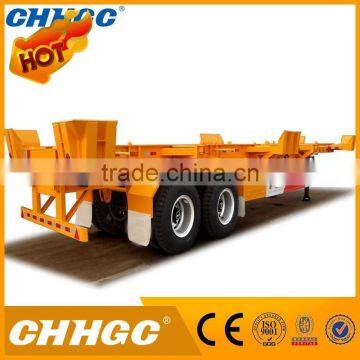

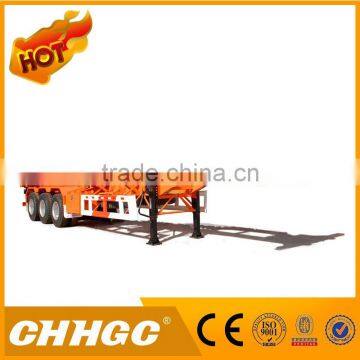

Product Show
| Dimension:L*W*H | 13700*2480*1580(mm),1540,1500 |
| Landing leg setting | 2640(mm) |
| Kingpin plate height | 1203(mm) |
| Axle Space | 11980+1310+1310(mm) |
| Tare Weight | 5250kg |
| Payload | 40000kg |
| G.V.W.R | 45250kg |
| Landing Gear | one-side operation |
| King pin | 2"welding type |
| Brake system | Dual line pneumatic brake system |
| ABS | yes |
| Brake Chamber | Type 30/30 spring brake chamber |
| Axle | FUWA axle ,13 ton capactiy/ set, 3pcs |
| Tire | 425/65R22.5 12pcs |
| Rim | 13.00*22.5, 12pcs |
| Main beam | 500/8/8/10 |
| Tool box | one |
| Spare Tire Carrier | two |
| Paint | Color is according to customer's request |
Q
QC&Transportation
C
Company Information
Henan Haiheng Import and Export Co., Ltd. is a subsidiary of China Haiheng Trading Group,which is engaged in the import and export trade of laboratory apparatus, special vehicle, engineering machinery and so on.
China Haiheng has a first-class product design, manufacturing, testing and marketing system in the industry. Our products have been exported to Africa, the Middle East, Southeast Asia, Central Asia, South Africa, Europe. We will strives to build into an international brand to benefit human beings.
