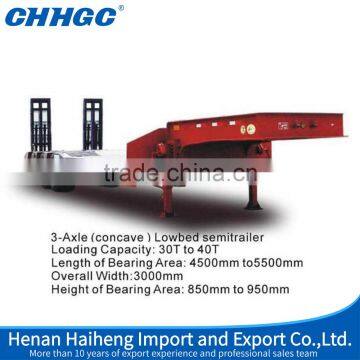

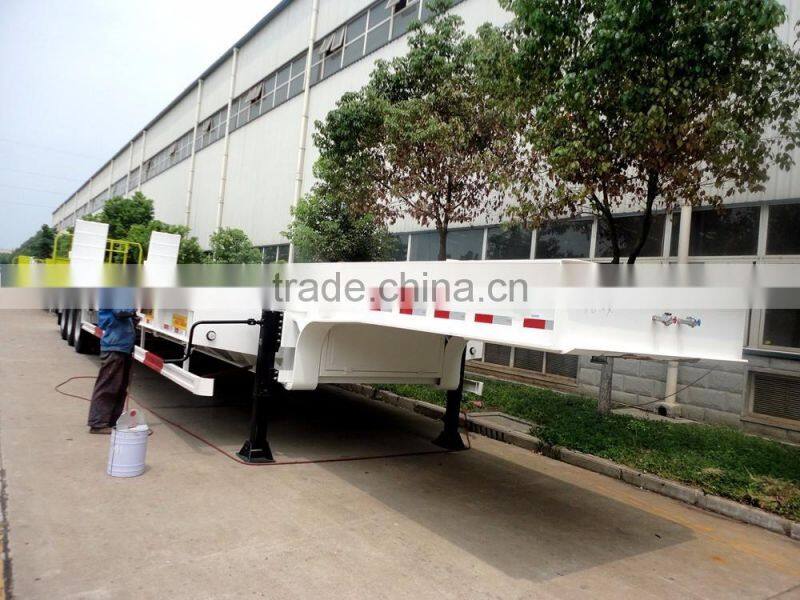

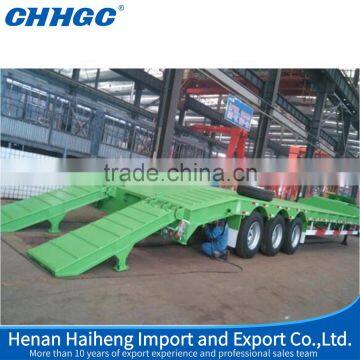

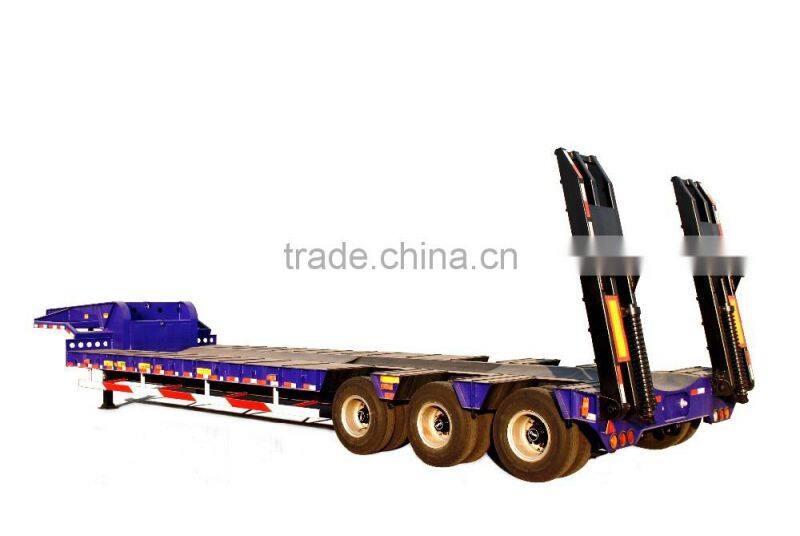

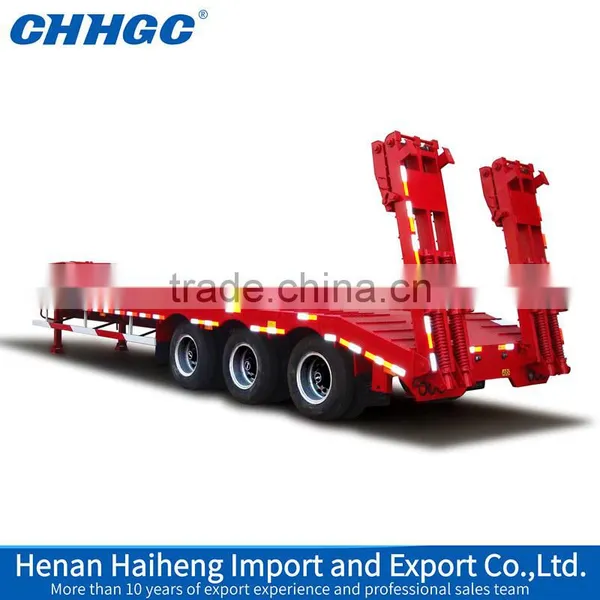

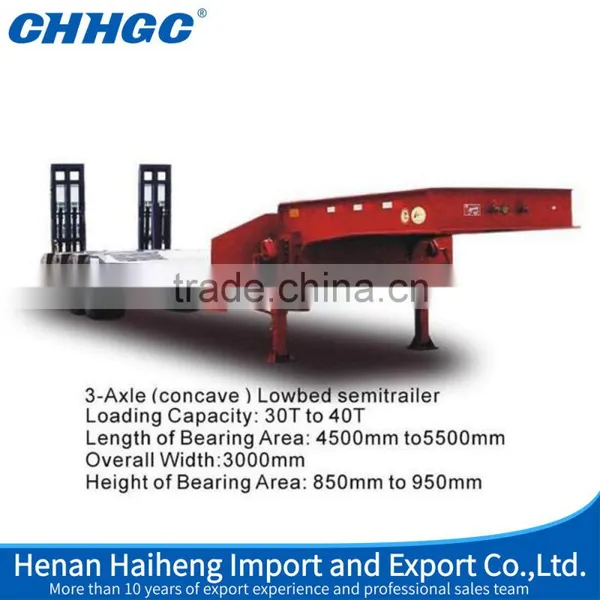

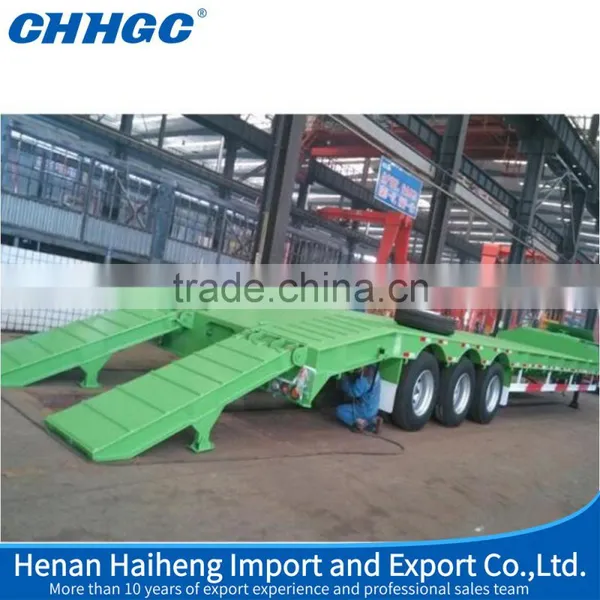

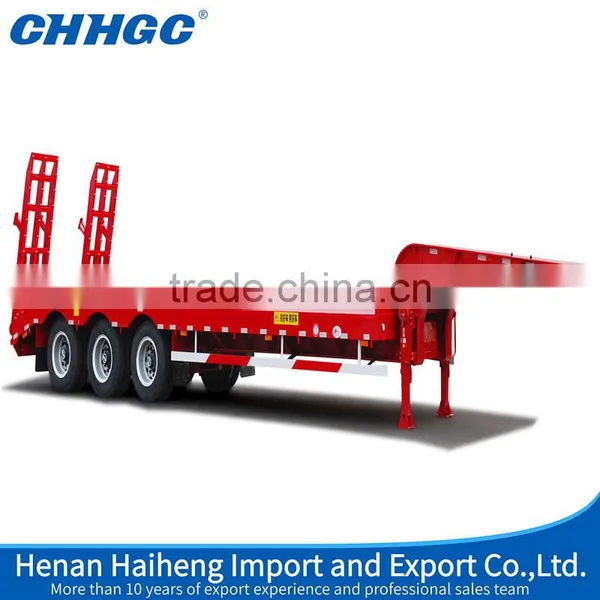

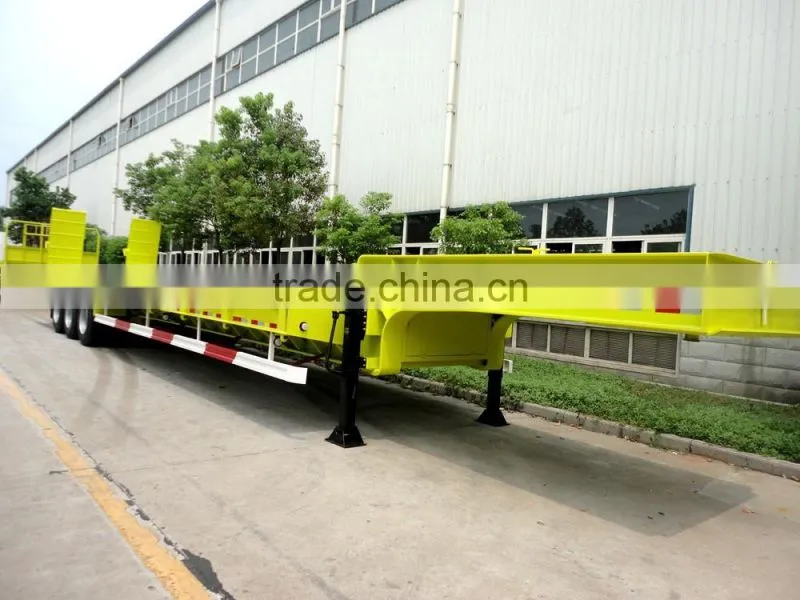

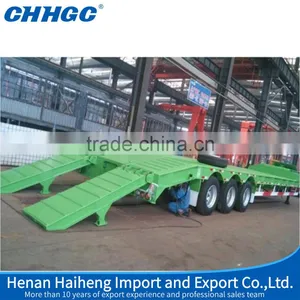

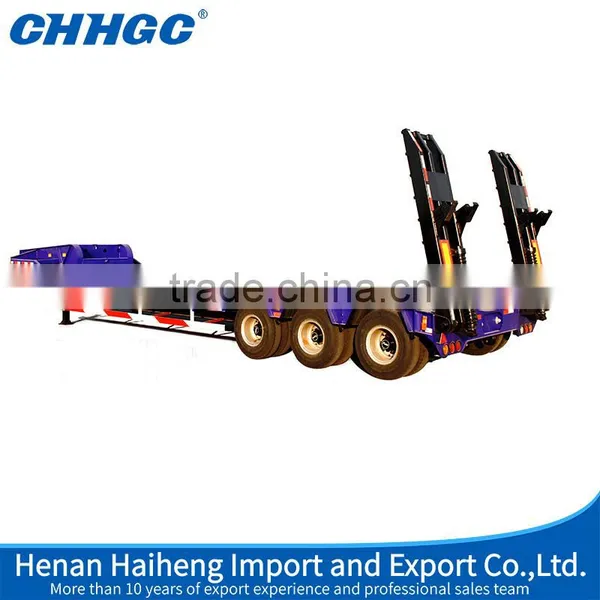

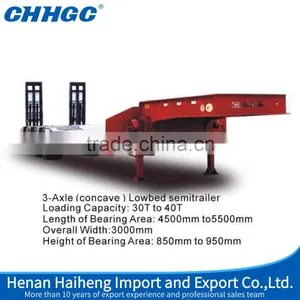

40Ton Low Loader Semi Trailers Light Loading Trailers
| ** Axle: 14 tons BPW (Wheel track width 2360) strengthened model( wheelbase 1360 ) /3 pieces |
| ** Landing gear: JOST A400 (linkage) /1 |
| ** King pin 2: Adjustable (JOST) KZ1012 |
| ** Tyre: Fengshen 10.00R-20-18 /12 pieces |
| ** Suspension : CHHGC REINFORCED TYPE /3 pieces |
| ** Spare tire holder : Will be welded on the gooseneck, and will be hand waving type. |
| ** Packaging : Two units should be put as One unit |
| ** Side beam : 294MMH Pattern STEEL |
| ** longitudinal beam height : 600mm and the web plate thickness is 14mm |
| ** Toolbox: 1m/ 1piece |
| ** Main beam specification: 14/8/16 mm, height 500mm |
| ** Front overhang/ kingpin distance : 500MM |
A semi-trailer is a trailer without a front axle. A large proportion of its weight is supported by a tractor unit,
a detachable front axle assembly known as a dolly, or the tail of another trailer.
A semi-trailer is normally equipped with landing gear (legs which can be lowered) to support it
when it is uncoupled.
Semi-trailers are more popular for transport than full trailers, which have both front and rear axles.
Ease of backing is cited as one of the semi's chief advantages.
Product Technical Specifications:
| Series No | Name | Unit | Quantity | Notice |
| 1 | Frame Dimensions |
15250*3000*1780 (1250 the height of the loading area/ Platform ) |
||
|
(wheelbase = 1360) Length of platform is 10.5mmLoading capacity 70Tons | ||||
| 2 | Axle | piece | 3 |
14 tons BPW (Wheel track width 2360) strengthened model ( wheelbase 1360 ) |
| 3 | Tire | Piece | 12 | Fengshen 10.00R-20-18 |
| 4 | Rim | Piece | 12 | Domestic Zhengxing 7.5-20 |
| 5 | Leaf-spring | piece | 6 |
Domestic 10 pieces of leaf springs, which are underslung. 16thickness 100width |
| 6 | Suspension | Set | 3 | CHHGC REINFORCED TYPE |
| 7 | Relay Valve | whole vehicle | WABCO relay valve | |
| 8 | Landing gear | pair | 1 | JOST A400 (linkage) |
| 9 | Kingpin 2 | PCS | 1 | Adjustable (JOST) KZ1012 |
| 9 | Kingpin 3.5 | PCS | 1 |
Adjustable (JOST) KZ1412 will be taken away, without the fifth wheel. |
| 11 | Tie-in | PCS | 4 | WABCO |
| 12 | Braking air chamber | 2 | Double chambers |
| 13 | Floor | 6 mm checkered | ||
| 14 | Rotary support | Every side can be increased 250mm, | ||
|
so if the rotary supports were open the width will become 3500mm | ||||

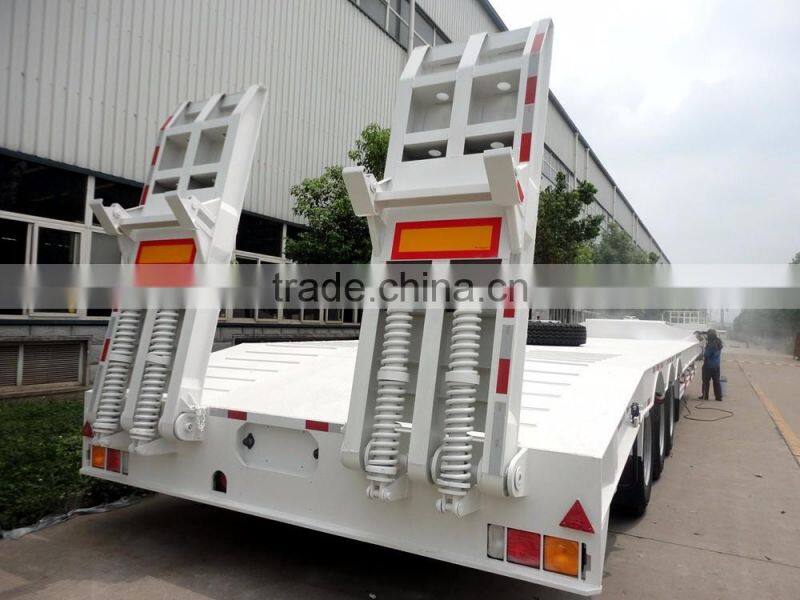

| 15 | Ramp | Pair | 1 |
Width 800mm, double springs pattern, which is strengthened. As for the length, |
| it depends on its technical specifications. | ||||
| 16 | Top Flange thickness and | 20mm, 30MM width =250mm | ||
| Bottom Flange thickness | ||||
| Through beam/cross members | 12# channel steel | |||
| Side beam | 294MMH Pattern STEEL | |||
| longitudinal beam height | 600mm and the web plate thickness is 14mm | |||
| 17 | Front overhang/ kingpin distance | 500MM | ||
| 18 | Spare tire holder |
Will be welded on the gooseneck, and will be hand waving type. |
||
| 19 | color | Orange red | ||
| 20 | Paint |
Antiseawater, whole trailer will be waxed in order to get protection from Seawater. |
||
| 21 | Marks | With CHHGC marque. | ||
| 26 | Packaging | Two units should be put as One unit | ||
| 27 | NOTICE:We send you one WABCO control valve, one single air chamber, | |||
| one double air chamber as the service spare parts for free in the LOW BED SEMITRILER | ||||
| 28Notice(1) | No.2. The bearing height and front overhang/ suspension of the low-bed Semitrailer will be designed according to the 6X4 Delong Big Truck. | |||
| -2 | This configuration excludes ABS | |||
Product Characteristics
1.Scientific design and quality assurance:The design in performed in accordance with the actual parameters of the tractor and trailer in the design process,ensuring to reach best level of whole vehicle transport performance.
2.Characteristic overall camber structure of longitudinal beams ensures lifetime downward bending-free of crossbeams:As per the mechanical analysis,the unique overall camber structure of the longitudinal beam is adopted to ensure lifetime downward bending-
free of crossbeams and effective save fuel consumption under same bearing load and build maximum economic value for users.
3.Quality steel material and OEM parts ensure quality and condition of products.
Product Features
4.Characteristic suspension system eliminates uneven and abnormal wear of tires.
5.Special steel and characteristic railing structure feature deformation-free and lighter dead weight.
6.Welding procedure:Frame and top-bottom welding are all compressed tightly with pneumatic-hydraulic clamping,automatic transmission and other large tools welding,effectively control welding deformation and guarantee the smoothness and technical requirements.The turnover model makes the welding strength;The electric tilting system controls the manufacture process spare part distortion.Mixes gas welding ensures the welded joint quality.
7.Painting craft:Using the baking varnish craft,primer twice,top coat twice and detection is made strictly according to the national standard for film thickness to guarantee the paint quality and brightness.
Products Catalog

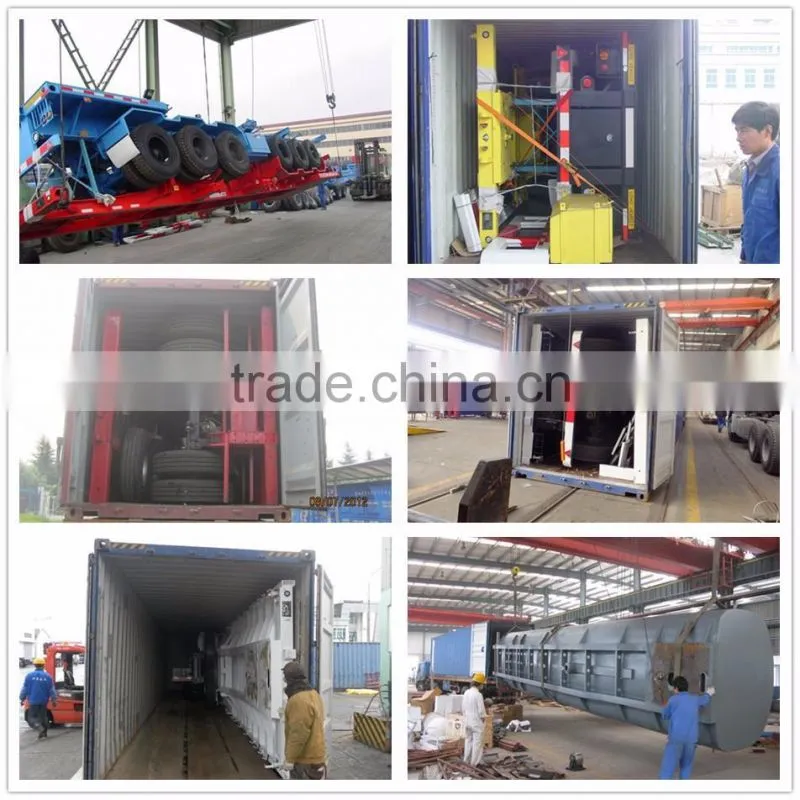

1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
2.Polish with wax before shipping.
Jane Wang
CHHGC GROUP Henan Haiheng Import and Export Co.,Ltd.
Web:
*************************************************************************************
Email: export8 (AT); exportb2 (AT)
Mobile: +86 18337115665;+86 15938704195 Whatsapp: +86 18337115665
Wechat: +86 18337115665 Skype: 1045542146(AT)
Tel: +86 371-86664500-809 Fax: +86 371-86664545
*************************************************************************************
1. 7*24-hour hot line at your service, available for quality and extending service
2. Lifelong free technical guidance service can be provided.
3. For customers who buy bulk quantity for the first time, we can send service technicians to offer site
instruction service and short-term stationary point service.
4. Free technical training can be provided to help customers use and maintain the trucks and trailers quickly
and correctly.
Advanced Equipment
1 The production line of steel plate uncoiling and leveling
2 The sand blast and rust removal equipment
3 Numberical control gas cutting machine
4 Numberical control gate-type submerged arc welding machine
5 Welding center of tank body
6 The rollover welding machine of semi trailer frame
7 Chain rollover machine of tipper frame
8 9.5 m level down rolling machine
9 Numberical controls electric spark cutter
10 Film thick gauge
11 Ultrasonic flaw detector
12 Large-scale metallographic microscope
13 Large sheet bending machine
14 9.5m makeup welding machine
15 X-Ray flaw detector
16 Automatic high-rise warehouse
17 CNC vertical lathe, turret vertical lathe
18 Chemical pretreatment production line
19 Robot welding
Q: Why do you believe I will choose your semi trailers?
If you buy our semi trailers, maybe your heart hurts when you pay the money.
But you will be happy on the every day you use it.
What’s important, you will save your money.
All our customers reorder now.
Q: How to prove the quality of your trailers?
A: Just buy one piece, and you will know the quality after you use it yourself or your customers’ feedback.
Q: How can I get the quotation as soon as possibly?
A: Dear, just tell us your need, like load capacity, number of axles, dimension, working conditions and so
on ,you will get the accurate quotation as soon as possible.
