Can be designed to electric or hydraulic winch,single drum or double drum,multiple drum according to customer's needs.

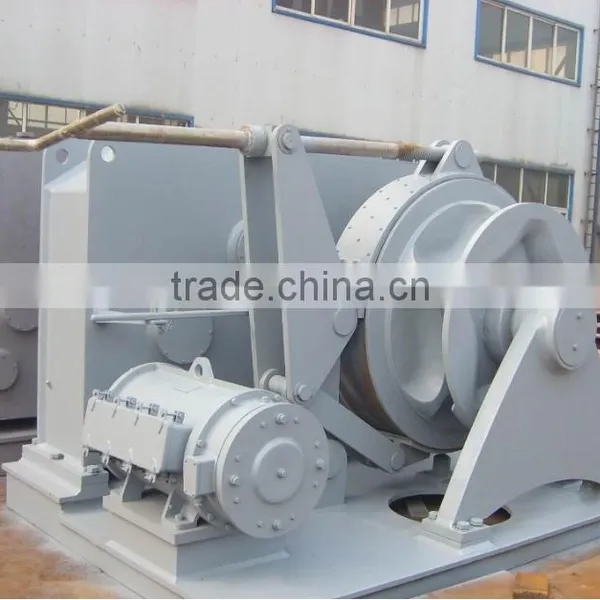

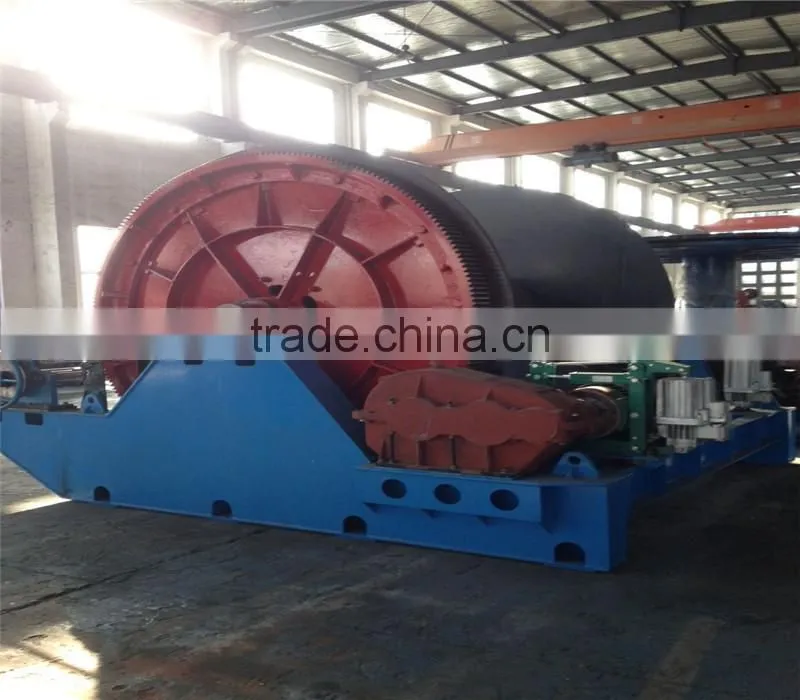

Electric mooring winch is widely used in the place with heavy work and big traction.the motor of the single drum winch drive the drum by reducer box,the brake is installed between the motor and input shaft. electric mooring winch could be set up to single drum, double drum and multiple drum for adapting the needs of hoisting, traction and rotary work. Normally,winch with the rated load less than 10ton could be set up to electric mooring winch.

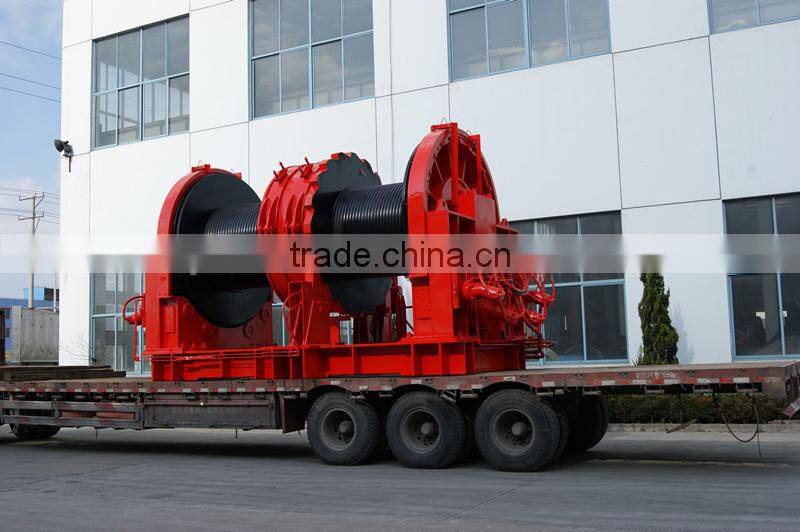

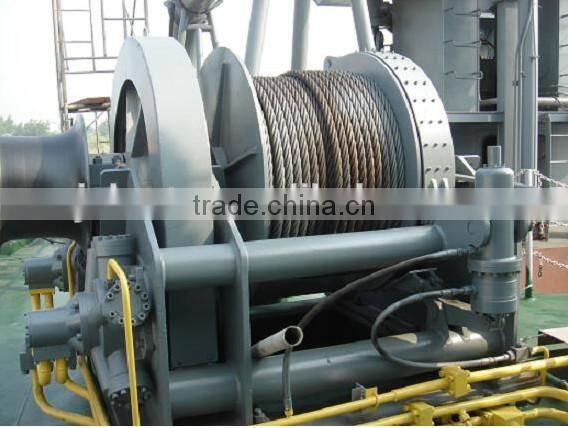

Hydraulic mooring winch is the winch with the rated load from 10T~5000T, hydraulic motor have high mechancial efficiency and large torque, can drive different distributor as per different working conditions. this kind of winches have following features:compact structure,small size,light,nice appearance,safty,high efficiency,large torque,good stability,low noise,reliable operation and so on.
| Name | Rated Pull | Rated Speed | Drum Capacity | Motor Power(KW) | |
| (kN) | (m/min) | (m) | Electric | `Hydraulic | |
| Electric Mooring Winch | 5 | ≥12 | φ8×100 | 3/1.2 | |
| Electric (Hydraulic) Mooring Winch | 10 | ≥12 | φ10×150 | 4.3/1.7 | 5.5 |
| Electric (Hydraulic) Mooring Winch | 20 | ≥12 | φ15×150 | 8.5/3.5 | 11 |
| Electric (Hydraulic) Mooring Winch | 30 | ≥15 | φ17×150 | 11/11/7.5 | |
| Electric (Hydraulic) Mooring Winch | 40 | ≥15 | φ18×150 | 16/16/11 | 22 |
| Electric (Hydraulic) Mooring Winch | 50 | ≥15 | φ20.5×180 | 22/22/16 | 30 |
| Electric (Hydraulic) Mooring Winch | 75 | ≥15 | φ26×200 | 30/30/22 | 45 |
| Electric (Hydraulic) Mooring Winch | 80 | ≥15 | φ26×200 | 30/30/22 | |
| Electric (Hydraulic) Mooring Winch | 100 | ≥15 | φ30×200 | 45/45/30 | 45 |
| Electric (Hydraulic) Mooring Winch | 125 | ≥15 | φ30×200 | 45/45/30 | |
| Electric (Hydraulic) Mooring Winch | 160 | ≥15 | φ32×250 | 60/60/45 | 75 |
| Electric (Hydraulic) Mooring Winch | 200 | ≥9.6 | φ41×250 | 45/45/30 | 75 |
| Electric (Hydraulic) Mooring Winch | 250 | ≥9.6 | φ44.5×250 | 60/60/45 | 90 |
| Electric (Hydraulic) Mooring Winch | 315 | ≥7.8 | φ522×250 | 60/60/45 | 90 |
| Electric (Hydraulic) Mooring Winch | 400 | ≥7.8 | φ56×250 | 85/85/64 | 110 |
| Hydraulic Mooring Winch | 450 | ≥6 | φ56×250 | 110 | |
| Electric (Hydraulic) Mooring Winch | 500 | ≥7.8 | φ58×250 | 85/85/64 | 110 |
| Electric (Hydraulic) Mooring Winch | 560 | ≥6 | φ64×250 | 85/85/64 | 132 |
| Electric (Hydraulic) Mooring Winch | 600 | ≥6 | φ64×250 | 85/85/64 | 132 |
| Electric (Hydraulic) Mooring Winch | 650 | ≥6 | φ70×250 | 85/85/64 | 132 |
| Electric (Hydraulic) Mooring Winch | 1000 | ≥4 | φ85×250 | 85/85/64 | 132 |
| Electric (Hydraulic) Mooring Winch | 1200 | ≥4 | φ95×250 | 120/120/90 | 160 |
| Electric (Hydraulic) Mooring Winch | 1500 | ≥4 | φ95×250 | 150/150/72 | 200 |
| Electric (Hydraulic) Mooring Winch | 1800 | ≥4 | φ95×250 | 150/150/72 | 250 |
| Electric (Hydraulic) Mooring Winch | 2000 | ≥4 | φ100×250 | 180/180/270 | 270 |
