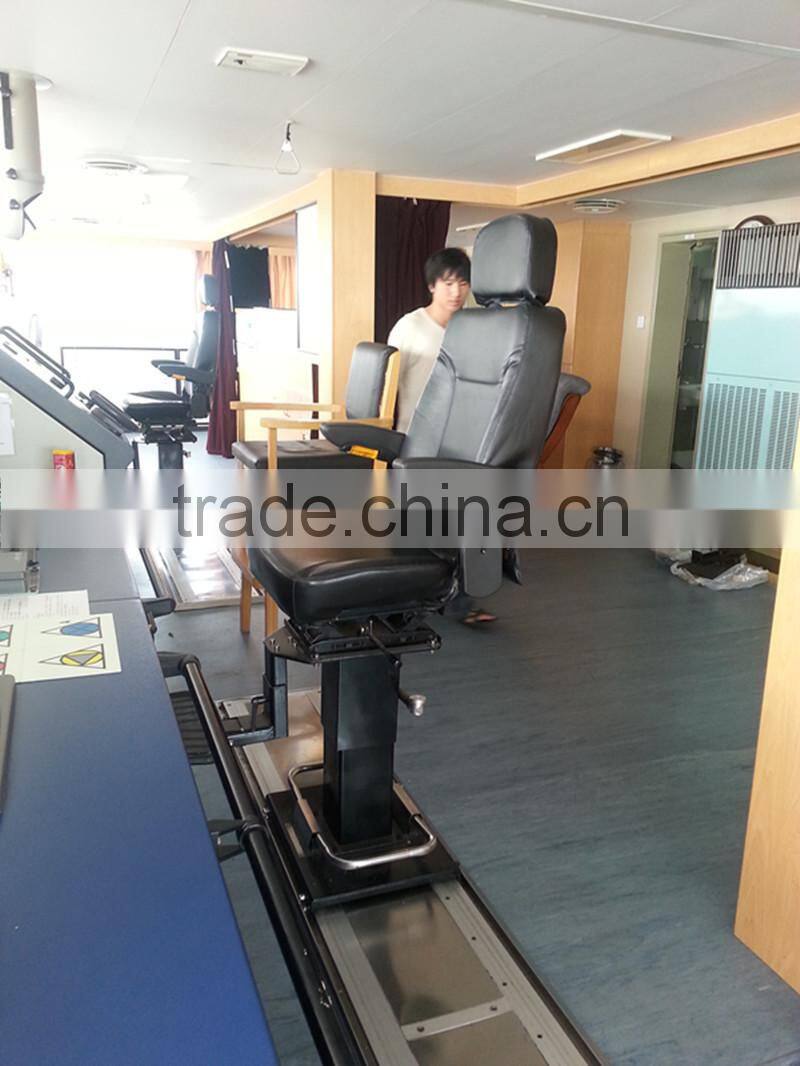

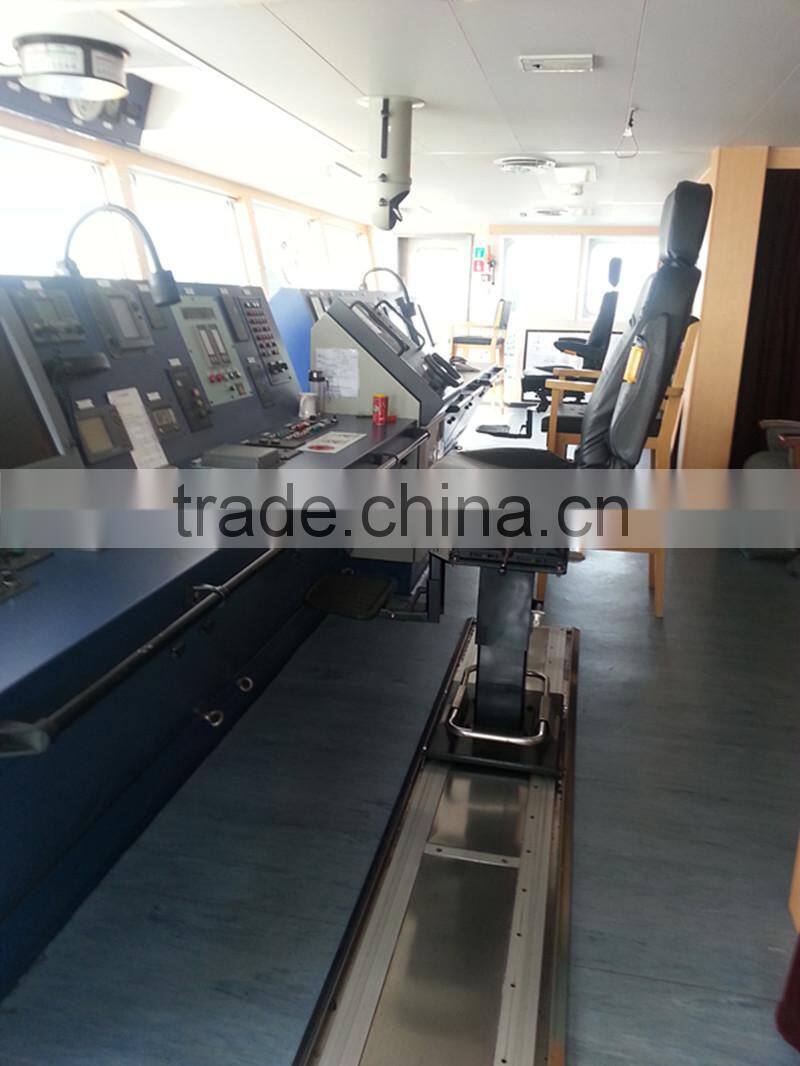

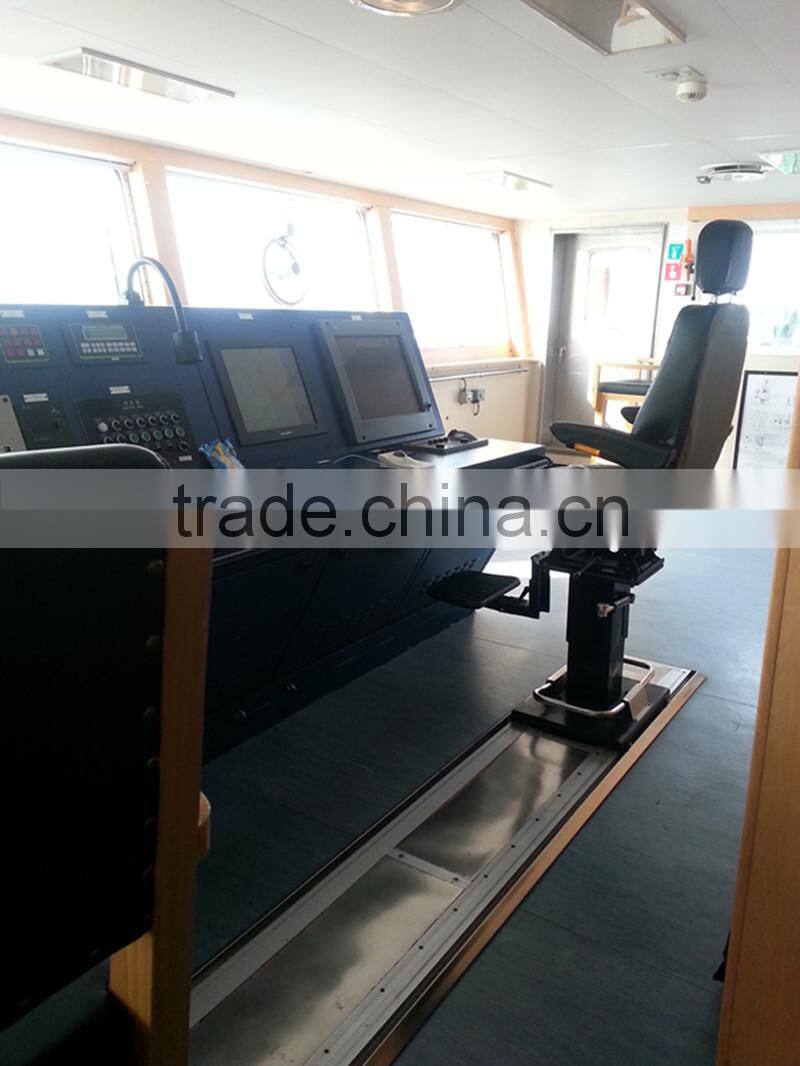

The steel column type rail driving seat
Function:
1.Ergonomic design;
2. Seat can move in high strength double-slide rail;
3.Adjustable backrest and headrest;
4.Seat height may be angle adjusted;
5.Seats can be moved back and forth;
6.Folding / angle-adjustable comfortable seat armrest;
7.Seat can rotated 360 degrees, multi-point positioning;
8.Foot pedal height adjustable / folding;
9.Column can be vertically lifting;
Material:
1.Slide rail and positioning base uses the high strength aluminum alloy, inside and outside decorative mosaic made of stainless steel;
2.lifting column with steel,stainless steel synthesis;
3.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure;
4. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth;
5.Pedal steel plate inner core and environmentally friendly rubber synthetic;
6. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;

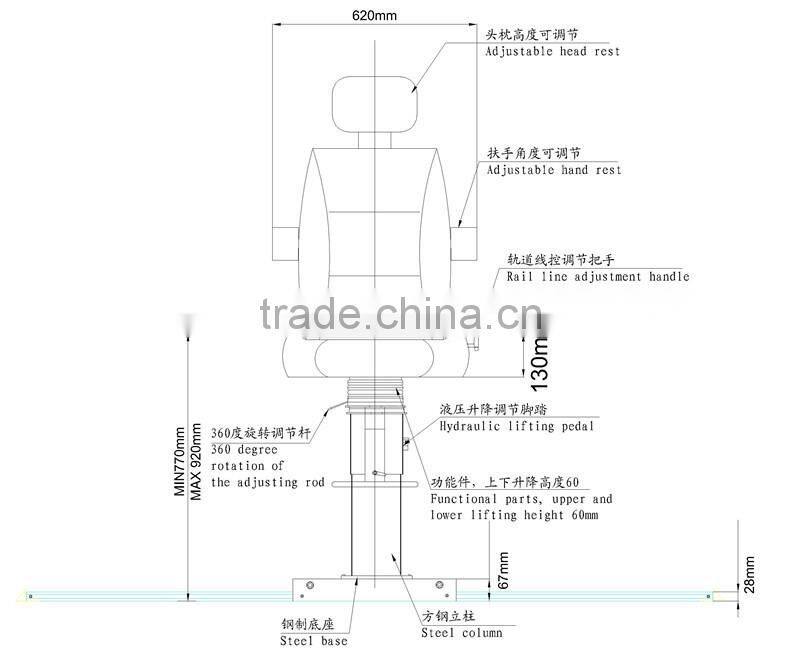

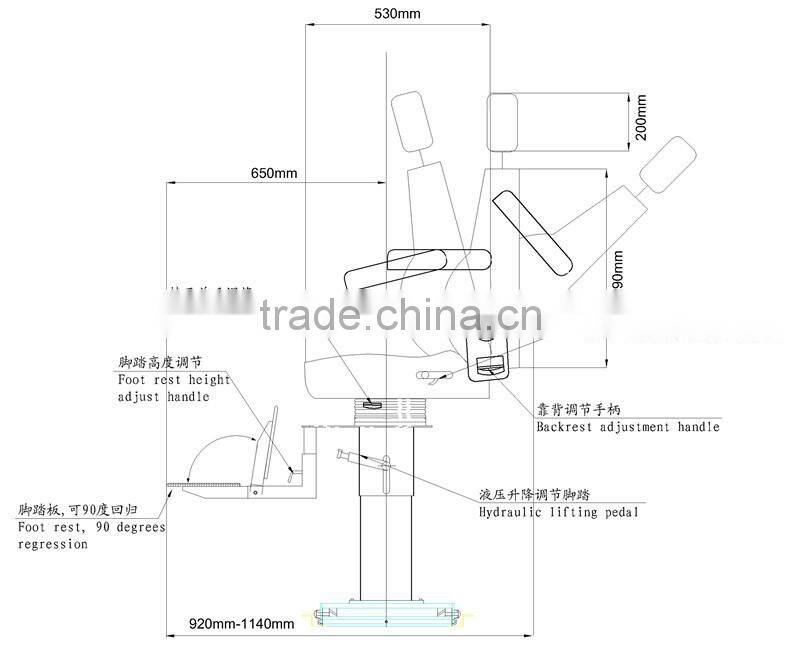

Function data:
1.Upper part of the seat can be moved back and forth of120mm,height adjustment 60mm, seat inclination angle range of ±12°;
2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;
3. The seat of pneumatic lifting regulating range 0-150mm;
4.The seat can rotate 360°and locked ,4-point positioning control;
5.Seat rail slide in 0_5000mm mobile,500mm rail width and depth 28mm
6. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;
7.Seat can bear more than 150FT.LB torsion, reached AD grade standard;
