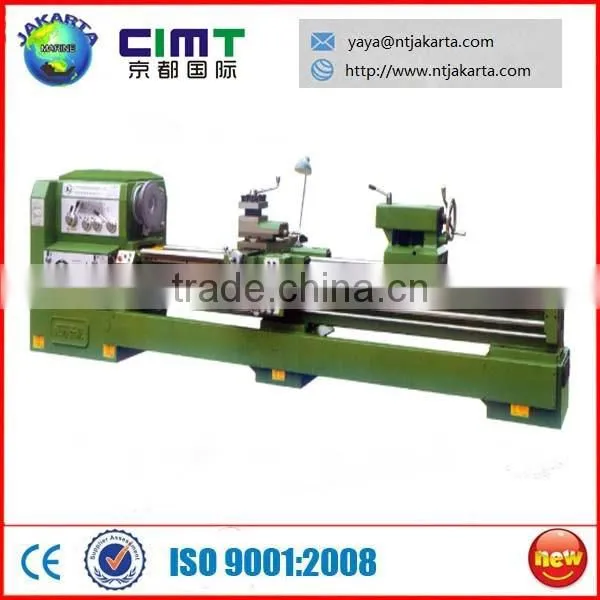

Cheap Price Lathe Machine ,good Quality Lathe ,high Stablity Lathe Machine

Nantong Jakarta Trade Co., Ltd.

US$ 3,000 - 5,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Automatic Grade:

Automatic

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Automatic Grade Automatic

Max. Swing Diameter 630MM

Place of Origin Jiangsu, China

Model Number C6163X1.5M

Voltage 380V

Power(W) 11KW

Dimension(L*W*H) 3952*1275*1260(mm)

After-sales Service Provided Engineers available to service machinery overseas

MODEL	C6163A
Max.swing over bed	630mm
Max.swing over cross slide	360mm
Center distance	750 1000 1500 2000 3000 4000 5000 6000 8000 10000mm
Max.swing over gap	800mm
Valid length of gap	300mm
Bed width	500mm
HEADSTOCK
Spindle hole	70mm
Spindle nose	C-8 or D-8
Spindle taper	MT#80
Spindle speeds(Number)	14-750RPM(18 STEPS)
Metric threads range(kinds)	1-240mm(54 kinds)
Inch threads ranges(Kinds)	28-1 inch(37 kinds)
Module threads range(kinds)	0.5-60 DP(27 kinds)
Diametric threads range(kinds)	30-1 t.p.i.(27 kinds)
Longitudinal feeds range(kinds)	0.05-1.42mm/r (72 kinds)
Cross feed range(kinds)	0.015-0.48mm/r (72 kinds)
Rapid feed: Long./Cross	6/2m/min
Lead screw size: Diameter/Pitch	T48mm/12mm
Cross slide travel	400mm
Compound rest travel	230mm
Size of tool shank	30*30mm
Spindle diameter	100mm
Spindle taper	MORSE #5 or #6
Spindle travel	205mm
Main drive motor	11kw
Coolant pump motor	0.09kw
Rapid feed motor	0.18kw
N.W. Floor space (LWH)	395212751260(mm)
