GOODS DESCRIPTION

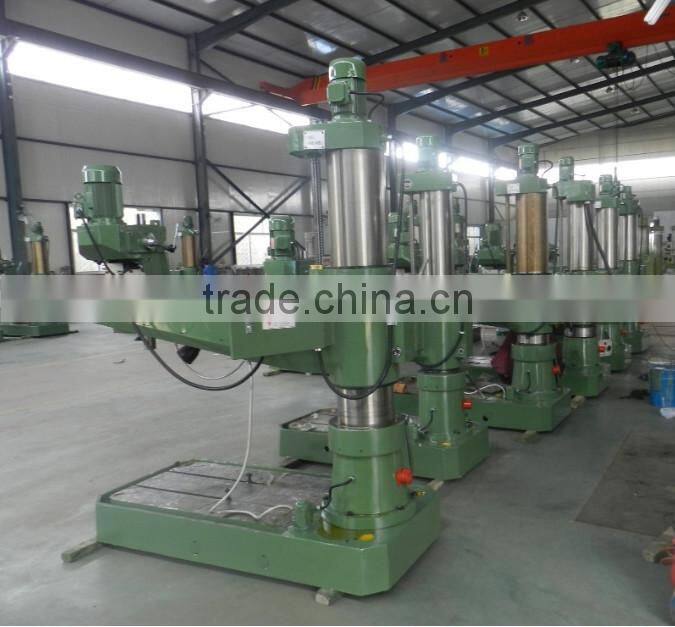

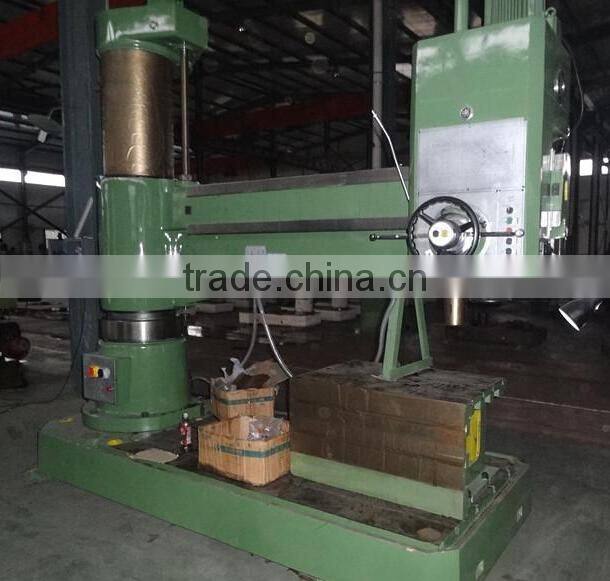

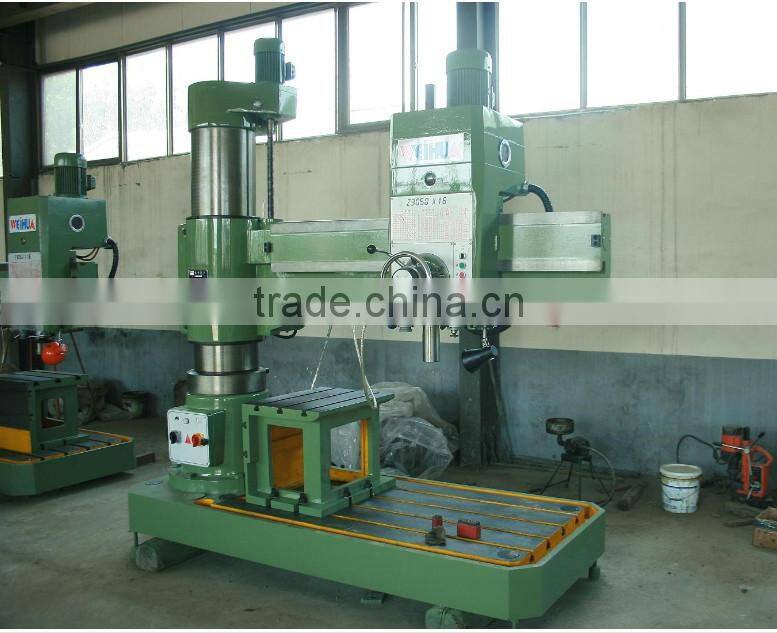

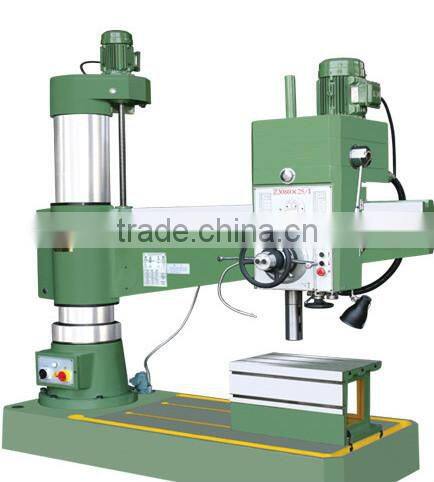

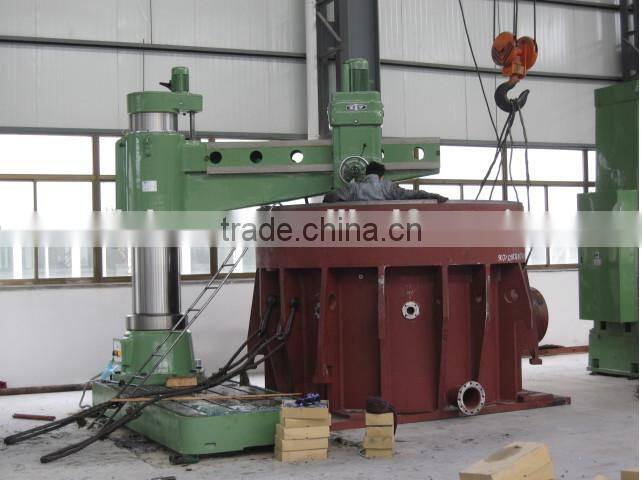

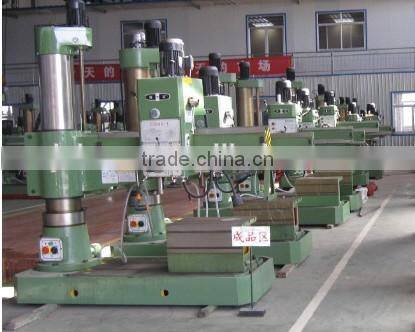

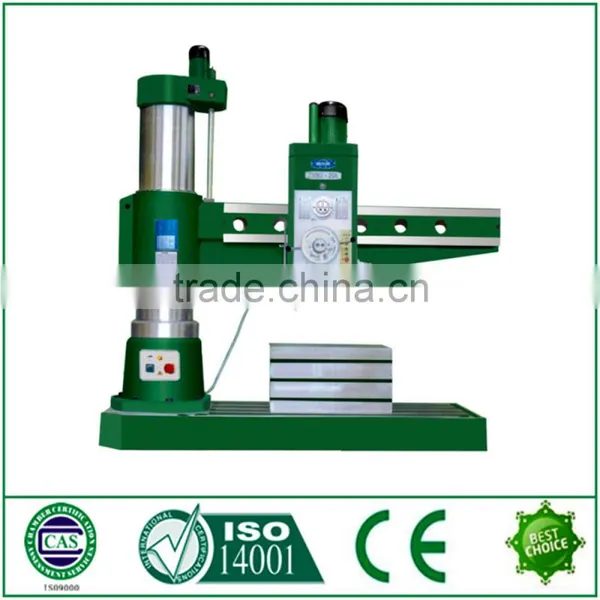

The radial drilling machine is universal machine,capable of drilling , counter-boring , boring , reaming , spot-facing tapping and other similar operations . It is widely used in machine manufacturing industry for processing small and medium sized machine parts and ideal for repair shops and shipyards .

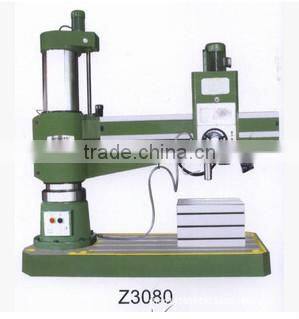

| model | Z3080×25 |
| max drillinh diameter (mm) | 80 |
| Spindle center column to the main bus bar distance (mm) | 500~2500 |
| Main column diameter (mm) | 550 |
| The spindle taper | MT6 |
| Spindle range (mm) | 450 |
| The spindle speed range (r/min) | 16~1250 |
| The spindle speed series | 16 |
| The spindle feed range (mm) | 0.04~3.2 |
| The spindle feed series (mm) | 16 |
| Spindle end to base working mesa maximum distance (mm) | 550~2000 |
| Table size (mm) | 1000X800X560 |
| Bottom sit size (mm) | 3530X1400X300 |
| Machine tools installation dimensions (mm) | 3730X1400X3790 |
| The main motor power (kw) | 7.5 |
| Wool quantity/net weight (kg) | 10450/10000 |
| Packing size (cm) | 387×162×223 |
AFTER SERVICE TEAM IN SOUTH EAST ASIA
Our service
1.Standardization of Service “212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all JKDmachines. We dispatch technician to customer's
factory for installation and preoperation of machines. ( Customers only need to pay the airfare
and hotel )
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well,
you may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same
as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's
materials for test. After making sure machine is the best performance, then make shipments.
