Home > Transportation > Forklifts & Parts > Forklift > 2000kg Four-Wheel Cheap DC/AC Electric Forklift CPD20
US$ 1,000 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
CIMT
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1000kg Four-Wheel Cheap DC/AC Electric Forklift CPD10US$ 1,000 - 100,000MOQ: 1 Set -
Good Quality Hydraulic Hammers for ExcavatorUS$ 1 - 10,000MOQ: 1 Set
-
Good Quality Jack Hammer for ExcavatorUS$ 1 - 10,000MOQ: 1 Set
-
2015 New Product Hammer Breaker for ExcavatorUS$ 1 - 10,000MOQ: 1 Set
-
Tip Tower Crane PT3032US$ 40,000 - 42,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
CIMT
Model Number
CPD20
Type
Powered Pallet Truck
Power Souce
DC Motor
Rated Loading Capacity
2000kg
Max. Lifting Height
4050mm
Min. Lifting Height
2050mm
Fork Length
1070mm
Fork Width
120mm
Overall Dimensions
3470*1170mm
Certification
ISO9001,CE
After-sales Service Provided
Engineers available to service machinery overseas
We are devoted to the research, development and manufacture of hi-tech forklifts and aim to improve self-innovation capacity and the development of national forklift industry. We look forward to cooperating with you based on mutual development. Contact us for more details.
Technical parameters
| Model | - | CPD20 |
| Lifting capacity | kg | 2000 |
| Load center | mm | 500 |
| Lifting height (max) | mm | 3000 |
| Maximum height at work | mm | 4035 |
| Mast tilt angle (F/B) | ° | 6°/12° |
| Hold under mast (min) | mm | 110 |
| Free lift height | mm | 140 |
| Turning radius(min) | mm | 2260 |
| Lifting speed (max) (Loaded/Unloaded) | mm/s | 272/380 |
| Travelling speed (max) (Loaded/Unloaded) | Km/h | 12.5/14 |
| Tractive force (Loaded) | KN | 7.5 |
| Lowering speed | mm/s | ≤600 |
| Max gradeability (Loaded) | % | 10 |
| Complete size (L × W) | mm | 3470×1170 |
| Fork size (L x W x T) | mm | 1070×120×40 |
| Closed mast height | mm | 2055 |
| Overhead guard height | mm | 2150 |
| Wheelbase | mm | 1500 |
| Wheel tread (F/R) | mm | 980/954 |
| Work pressure | MPa | 17.5 |
| Distance from chair to overhead guard | mm | 1010 |
| Battery voltage | V | 48 |
| Battery capacity | Ah | 560 |
| Subsidiary motor power | Kw | 8.6 |
| Travel motor power | Kw | 8 |
| Front tire model | - | 7.00-12-12PR |
| Back tire model | - | 18×7-8-14PR |
| Tire air pressure | MPa | Front:0.7 Rear:0.9 |
| Total weight(including battery) | kg | 3980 |

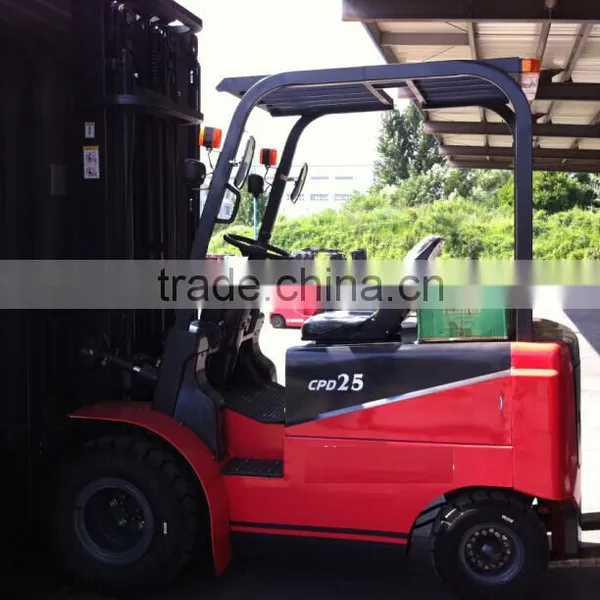

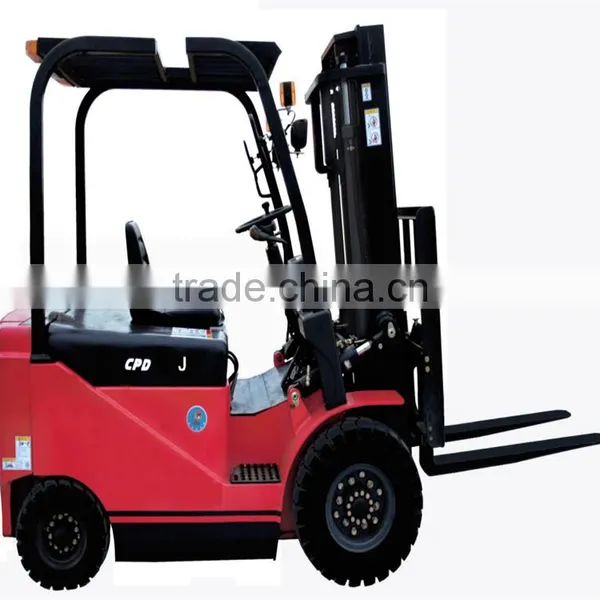

Photo Details
Certificate
Forklift Attachments Conents

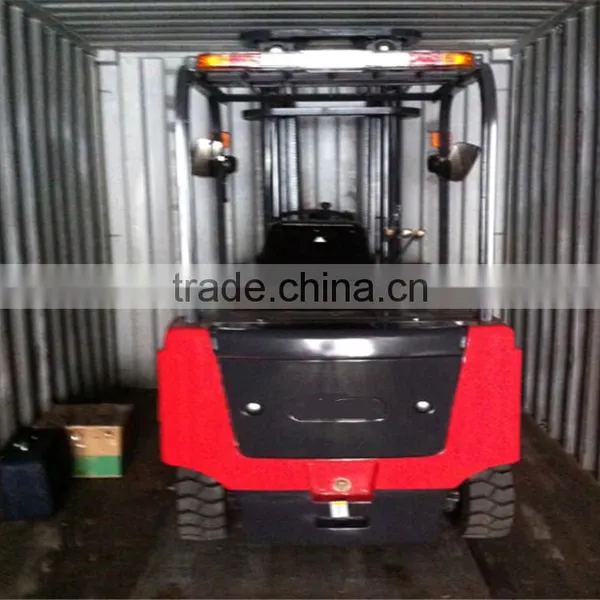

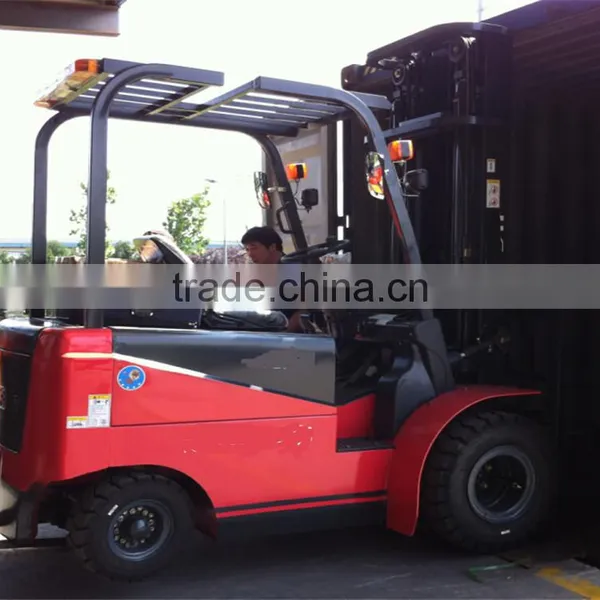

Delivery photos
Factory Photos
