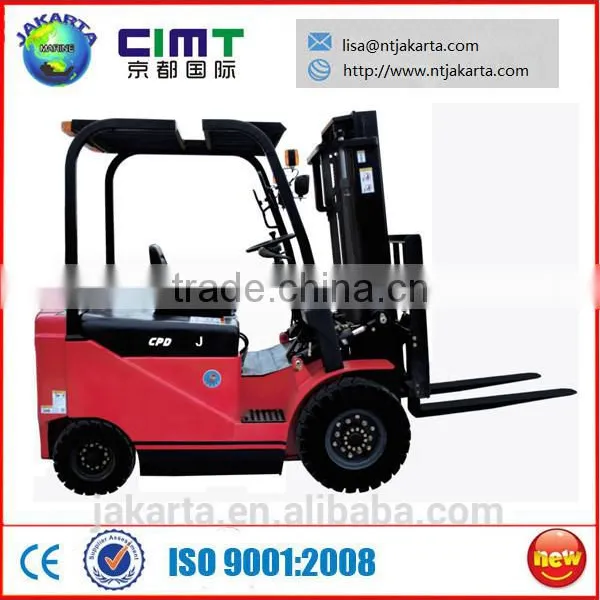

NEW Four Wheel Electric Forklift With AC Motor for Indonesia

NEW Four Wheel Electric Forklift With AC Motor for Indonesia thumbnail-1
NEW Four Wheel Electric Forklift With AC Motor for Indonesia photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
CMIT
Contact Supplier Request Quote Chat Now
Nantong Jakarta Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name CMIT
Model Number CPCD40
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 4000kgs
Max. Lifting Height 4230mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 150mm
Overall Dimensions 4170*1480
Certification ISO90001,ISO14001
After-sales Service Provided Engineers available to service machinery overseas



   NEW Four Wheel Electric Forklift with AC Motor for Indonisia

  Introduction us

       The company now owns more than 100 models of self-owned forklift products in 72 types. Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg. Turkey, Russia, UAE, Singapore, Indonesia etc. We have the forklift series as below:

Diesel counterbalance forklift 1.8t-3.5t: CP(C)D18, CP(C)D20, CP(C)D25, CP(C)D30, CP(C)D35

Diesel counterbalance forklift 4.0t-10.0t: CPCD40, CPCD45, CPCD50L, CPCD50, CPCD60, CPCD70,CPCD80,CPCD100Diesel counterbalance forklift 3.3t-4.0t (specialized for timber): CP(C)D33, CP(C)D37, CP(C)D39,CP(C)D40L,CP(C)D40L

Diesel counterbalance forklift 4.0t-12.0t (specialized for stone): CPC40, CPC45, CPC50L, CPCD70,CPCD78,CPCD80, CPCD90, CPCD120;

Gasoline counterbalance forklift 2.0t-3.5t: CPQ(D)20, CPQ(D)25, CPQ(D)30, CPQ(D)35

LPG counterbalance forklift 2.0t-3.5t: CPQY(D)20, CPQY(D)25, CPQY(D)30, CPQY(D)35

LNG counterbalance forklift 2.0t-3.5t: CPT(D)20, CPT(D)25, CPT(D)30, CPT(D)35

DC electric counterbalance forklift 1.0t - 3.5t: CPD10, CPD15, CPD20, CPD25, CPD30, CPD35

Semi-AC electric counterbalance forklift 1.0t - 3.5t: CPD10J, CPD15J, CPD20J, CPD25J, CPD30J, CPD35J

Full-AC electric counterbalance forklift 1.0t - 3.5t: CPD10AC, CPD15AC, CPD20AC, CPD25AC, CPD30AC, CPD35AC; Electric counterbalance forklift (triple-pivot): CPD16S, CPD18S, CPD20S, CPD05

Electric reach forklift: CQD12, CQD16, CQD20, CQD25Tractor series: QYCD20, QYCD25, QSD20, QSD30, QSD20AC, QSD30AC

Electric stacker series: CDDZ12, CDDZ16, CDDZ20, CDDZ25, CTDZ12, CTDZ16, CTDZ20, CTDZ25

Van series: CBY-DF20, CBY-DF25, CBY-DF30, CBY-AC20, CBY-AC25, CBY-AC30, CBD15, CBD25, CBD30, CBD40,Etc. 10 ton diesel forklift,diesel forklift 10000kg 10 ton diesel forklift,diesel forklift 10000kg 10 ton diesel forklift,diesel forklift 10000kg

  Forklift Specification



Model

-

CPCD40

Rated load lifting capacity

Kg

4000

Load center distance

mm

500

Lifting height

mm

3000

Maximum height at work

mm

4230

 Mast tilt angle(Forwards/Backwards)

6/12

 Hold under mast(min)

mm

170

 Turning radius(min)

mm

2880

Travelling speed (max)

Unloaded

Km/h

18

Loaded

19

Lifting speed (max)

Unloaded

mm/s

410

Loaded

430

Lowering speeds(max)

mm/s

≤600

Gradeability under full load (max)

%

20

Dimensions

Length

Overall length

mm

4225

Length (without fork)

3150

Width

1480

Height

Closed mast height

2245

Overhead guard height

2350

Wheelbase

mm

2050

Wheel tread

Front

mm

1180

Rear

1190

Tire

Front

-

300-15-18PR

Rear

-

7.00-12-21PR

Engine

Model

-

Weichai 4RMG25

Displacement

L



Rated power

Kw

55

Revolution at rated power

Rpm

2200

Maximum torque

Nm

275

Revolution at maximum torque

rpm

1400

 Fuel tank capacity

L

95

Fork size(LxWxT)

mm

1070X150X50

Total weight

Kg

6300





Product picture



Parts

;



Engine manufacture Engine model

Rated power /

Revolution at rated power

 Kw/rpm

Rated torque /

 Revolution at

rated torque

N.m/rpm

Engine displacement

L

 Fuel type Adaptive forklift Origin
XINCHAI C490BPG 40/2650 160/1800 2.67 Diesel 2~3.5T Chinese
XINCHAI A490BPG 40/2650 160/1800 2.67 Diesel 2~3.5T Chinese
XINCHAI A495BPG 42/2650 174/1800 2.98 Diesel 3~3.5T Chinese
DACHAI (DEUTZ) CA498 45/2500 190/1800 3.16 Diesel 2~3.5T Chinese
JMC JX493 39/2500 165/1800 2.77 Diesel 2~3.5T Chinese
ISUZU C240PKJ 34.5/2500 139/2500 2.4 Diesel 2~3.5T Japanese
YANMAR 4TNE98 42/2300 177.6/1700 3.319 Diesel 2~3.5T Japanese
NISSAN K25 37.4/2300 176.5/1600 2.488 Gasoline 2~3.5 T Japanese
LUOTUO LR4B3 57/2200 270/1560 4.33 Diesel 4~5T Chinese
XICHAI CA4110 61/2200 305/1500 4.75 Diesel 4~5T Chinese
XINCHAI 498BPG 45/2500 193/1800 3.16 Diesel 4T Chinese
XINCHAI 4D35G 48/2200 230/1600 3.32 Diesel 4~5T Chinese
CHAOCHAI CY6102 81/2000 353/1600 5.785 Diesel 5~10T Chinese
ISUZU 6BG1 82.4/2000 416/1500 6.49 Diesel 5~10T Japanese
XICHAI CA6110 83/2000 450/1500 7.127 Diesel 5~10T Chinese
PERKINS 1104D 55.9/2200 265/1700 4.4 Diesel 4~5T English
BAIYANG 491 41/2800 161/1800 2.7 Gasoline 2~2.5T Chinese
YUCHAI YC6B125 92/2200 460/1600 6.871 Diesel 10T Chinese
XICHAI CA6110/125ZT 117/2200 570/1600 7.127 Diesel 12T Chinese
YUCHAI YC6A180Z 140/2300 670/1600 7.255 Diesel 16T Chinese
