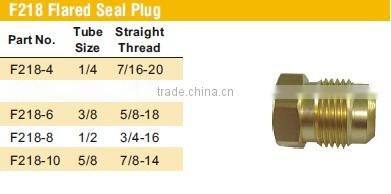

note:the following size is just for you refer , unstandard size is custom-made.
Applications: Use with copper, brass, aluminum and welded steel hydraulic tubing that can be fl ared.
Manufactured for especially hard-to-hold liquids and gases.
Working Pressure
and Temperature
Ranges: Temperature ranges from -65° to +250°F.
Pressure ranges will depend on the type of
tubing. The chart below shows the pressure
range at 73°F with copper tubing as a guide
for proper selection.
Features: • Manufactured from CA 360, CA 345 or
CA 377 brass.
• Meets functional requirements of
SAE J512 and J513, ASA and MS
(military standards)
Assembly
Instructions: 1. Cut tubing squarely and clean tube end to remove burrs.
2. Place nut onto tube. The short nut may be used when vibration is minimal, the long nut
offers additional vibration capacity.
3. Flare tube end with fl aring tool to provide 45° fl are.
4. Clamp tube fl are between nut and nose of fi tting body by screwing nut on fi nger-tight.
Tighten with a wrench an additional ¼ turn for a metal-to-metal seal.
