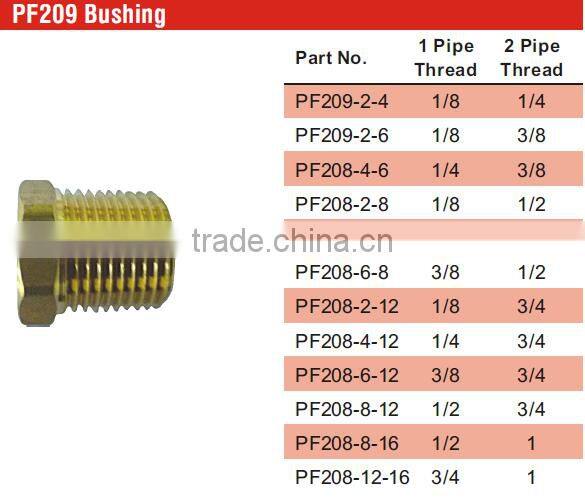

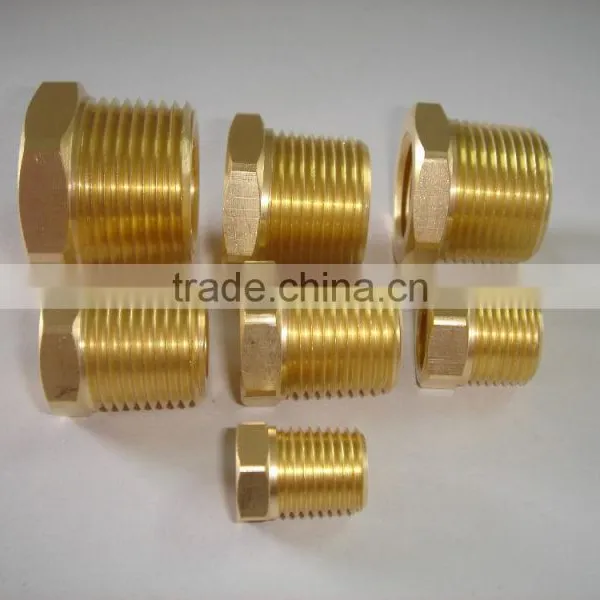

Help CenterPF209 Bushing,Pipe Fitting,Brass Fitting,Pneumatic Valve
Related Products
-
PF210 Lock Nut,Pipe Fitting,Brass Fitting,Pneumatic FittingUS$ 0.01 - 1MOQ: 1000 Pieces -
PF211 Square-Head Plug,Pipe Fitting,Brass Fittings, Pneumatic ValveUS$ 0.01 - 1MOQ: 1000 Pieces
-
PF213 Cap,Pipe Fitting,Brass Fitting,Pneumatic ValveUS$ 0.01 - 1MOQ: 1000 Pieces
-
PF215C Close Nipple,Pipe Fitting,Brass Fitting,Auto PartsUS$ 0.01 - 1MOQ: 1000 Pieces
-
PF215L Long Nipple,Pipe Fitting,Brass Fitting, Control ValveUS$ 0.01 - 1MOQ: 1000 Pieces
note:the following size is just for you refer , unstandard size is custom-made.
Advantages
All pipe fitting threads are made to Dryseal standards.* Connectors,
unions, nuts and extruded elbows and tees are machined from CA
360 and CA 345 brass; forged elbows and tees are machined from CA
377 brass.
Specifications
Meets functional requirements of the SAE J530 and SAE J531.
Applications
Use with brass, copper or iron pipe. Manufactured for low and medium
pressure line connection work.
Working Pressure and Temperature Ranges
From -65° to +250°F. at 1000 psi.
Vibration
Fair resistance to vibration and pipe movement depending
upon conditions.
Order
By part number and name.

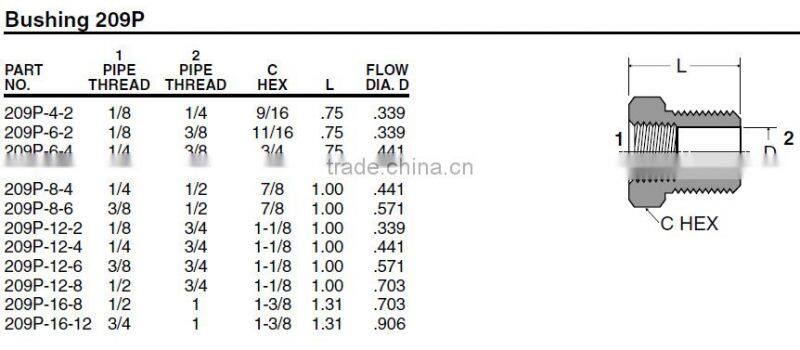

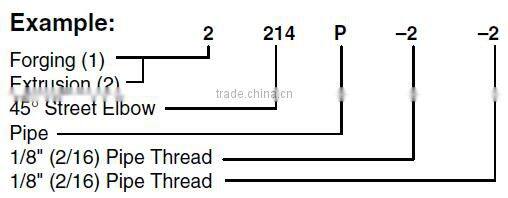

Nomenclature
Part numbers are constructed from symbols that identify the style and
size of the fitting. The first series of numbers and letters identifies the
style and type fitting. The second series of numbers describes the size.

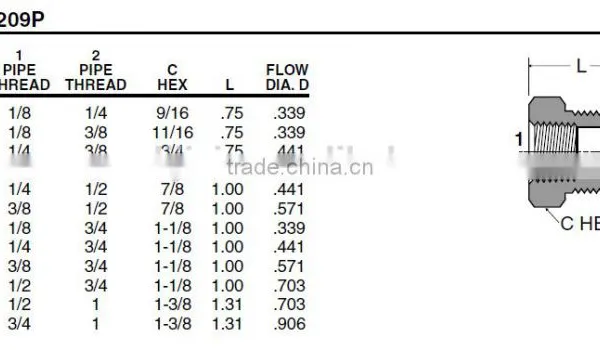

Sizes
Pipe sizes are determined by the number of sixteenths of an inch in the
pipe size.
Special Fittings
Fitting configureations and/or sizes other than those shown in the
catalog can be furnished. It is suggested that a print or sketch be
submitted with the inquiry.
Pricing
Only items prices in current supplementary price list PL3501 are
carried in stock. Price and delivery for non-stock items furnished on
request for specified quantity.
