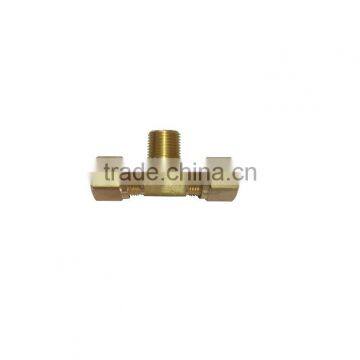

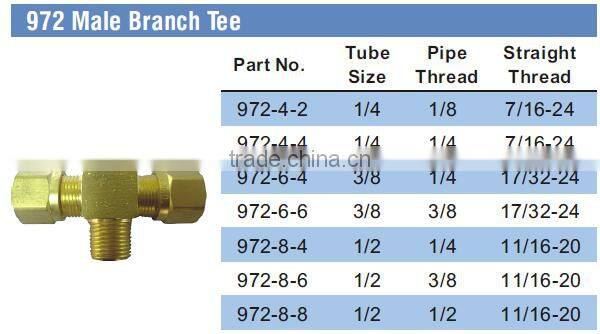

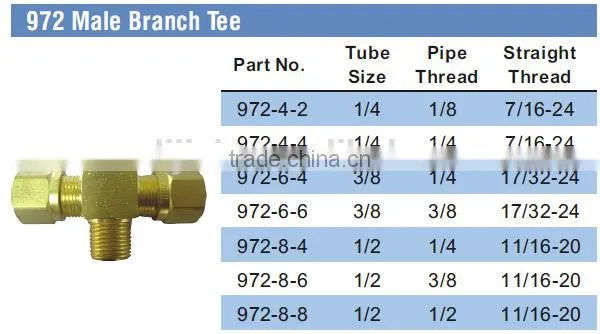

972 Male Branch Tee,Air Brake Fittings for Nylon Tube,Pneumatic valve

High quality brass fittings, Male Branch Tee VS272NTA,972 Male Branch Tee,Air Brake Fittings for Nylon Tube

note:the following size is just for you refer , unstandard size is custom-made .

 Specifications:

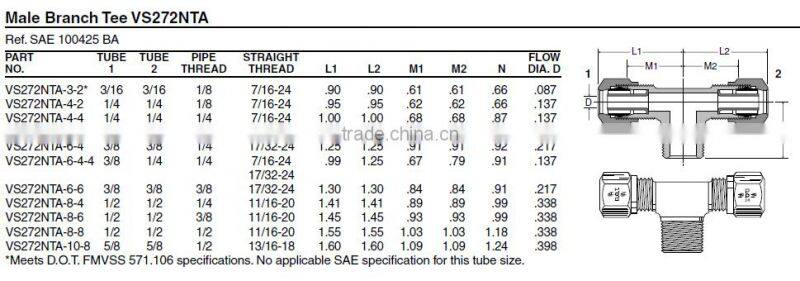

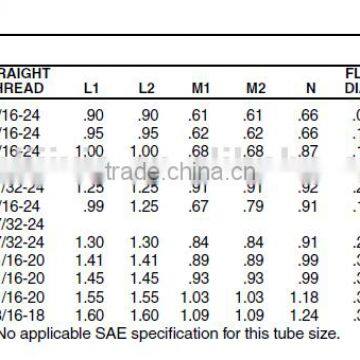

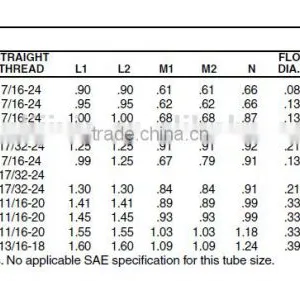

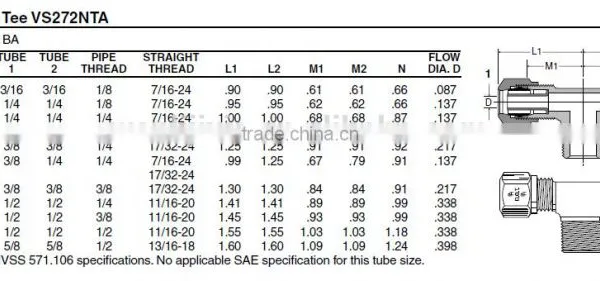

1. Product Name:    Male Branch Tee VS272NTA,972 Male Branch Tee,Air Brake Fittings for Nylon Tube
Brake Fittings for Nylon Tube

2. Raw Material: Brass CA370 , CA360, lead-free, or according to your requests.

3. Size: Customized on your request.

4. Surface: Yellow brass color, or Nickel plated, or Chrome plated.

5. Certification: ISO9001:2000.

6. Years of OEM experience.

NTA  Advantages

Meets D.O.T. FMVSS 571.106 air brake specifications. Utilizes

ribbed sleeve for compression and positive grip. NTA? bodies (less

tube supports) are interchangeable with AB (SAE J246) fitting bodies.

NTA? fittings are pre-applied with Locite Vibra-Seal 516 on all male

pipe threads.

No Special Tools Needed

You can assemble tubing to Parker NTA? fittings, no need to flare.

Machined from CA 360, CA 345 or CA 377 brass. Broad selection of

styles available.

Specifications

Meets functional requirements of the SAE automotive tube fitting

standards: SAE J246 and SAE J1131.

Applications

Use with SAE J844 Type A and B nylon tubing in air brake systems or

in cab air controls. Acceptable for use with diesel oil fuels when used

with Parker Parflex Division diesel fuel tubing.

Working Pressure Ranges

Up to 150 psi.

Temperature Ranges

Fittings will withstand variations from -40° to +200°F.

Order

By part number. Nuts and sleeves may be ordered as separate items

by their catalog number

Nomenclature

Part numbers are constructed from symbols that identify the style and

size of the fitting. The first series of numbers and letters identifies the

style and type fitting. The second series of numbers describes the size.

Sizes

Tube sizes are determined by the numbers of sixteenths of an inch in

the tube O.D.

Special Fittings

Fitting configurations and/or sizes other than those shown in the

catalog can be furnished. It is suggested that a print or sketch be

submitted with the inquiry.

Pricing

Only items priced in current supplementary price list PL3501 are

carried in stock. Price and delivery for non-stock items furnished on

request for specified quantity.
