1. Simple Introduction Of JNTECH 30HP(22kw) Solar Water Pumping System

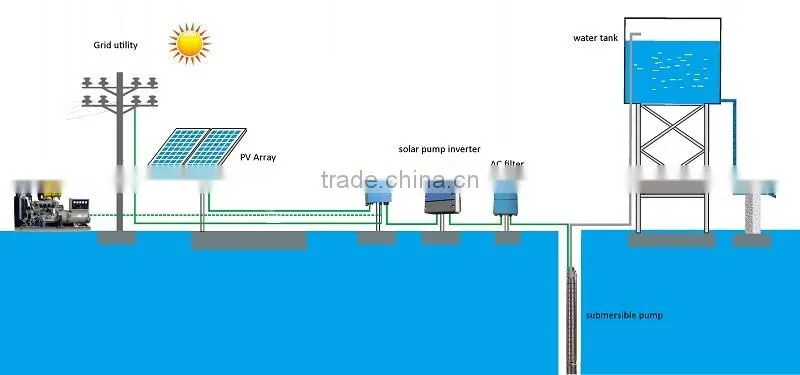

JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.
2. Product features:
1. Grid utility work as supplement when sun radiation is unavailable, support system working 24 h/day;
2. Full automatic unattended operation;

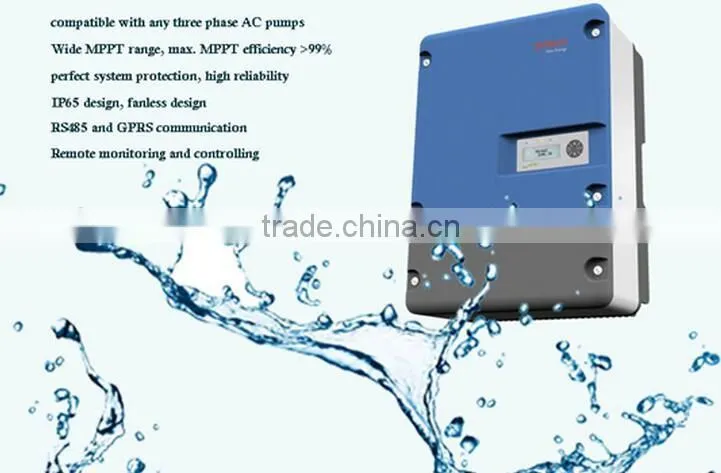

3. 22kw solar pump inverter parameters
| Max. Input DC voltage | 880Vdc |
| Recommended MPPT voltage | 460-850Vdc |
| Max. Input DC current | 49A |
| Max. MPTT efficiency | 99% |
| Number of Strings | 1 |
| Max. applicable motor output power | 22KW |
| Rated output voltage | 380-460Vac 3 phase |
| Output frequency range | 0-50/60Hz |
| Rated output current | 42A |
| Dimension(W/H/D) | 390*532*210mm |
| weight | 34kgs |
| Max. efficiency | 98% |
| Protective class | I |
| Protection degree | IP65 |
| Environment temperature | -25ºC-+60ºC above 60ºC need derate operation |
| Cooling method | force cooling |
| Display | LCD |
| Communication interface | GPRS |
| Altitude | 3000m; above 3000m need derate operating |
| Noise emission | <50dB |
| compliance | EN 50178; IEC/EN 62109-1; IEC61800 |

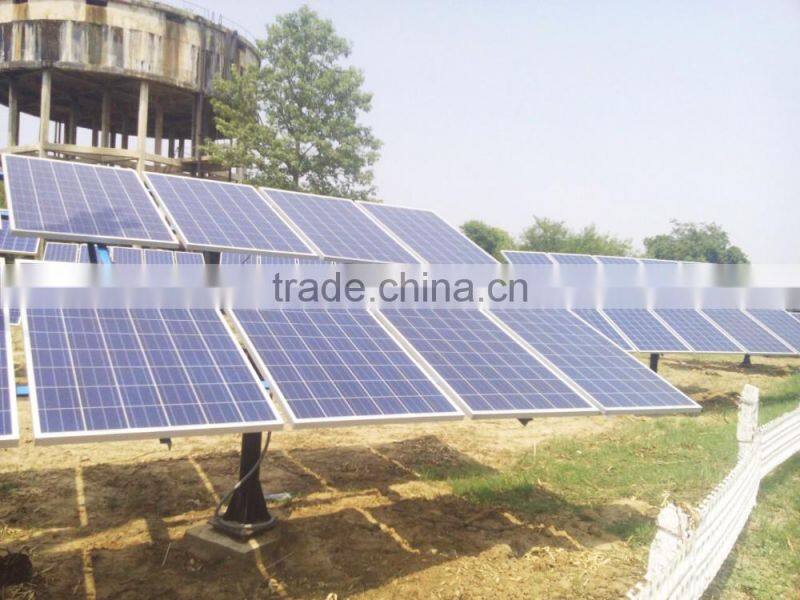

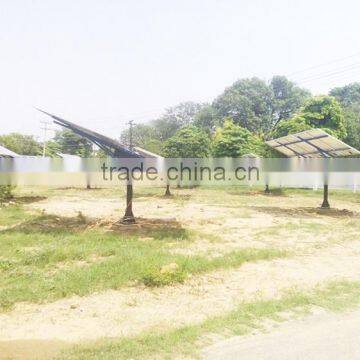

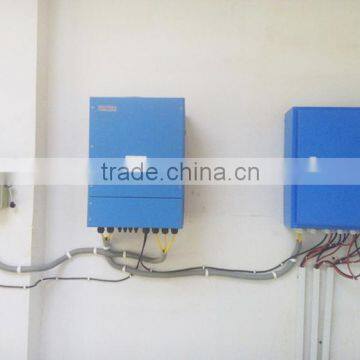

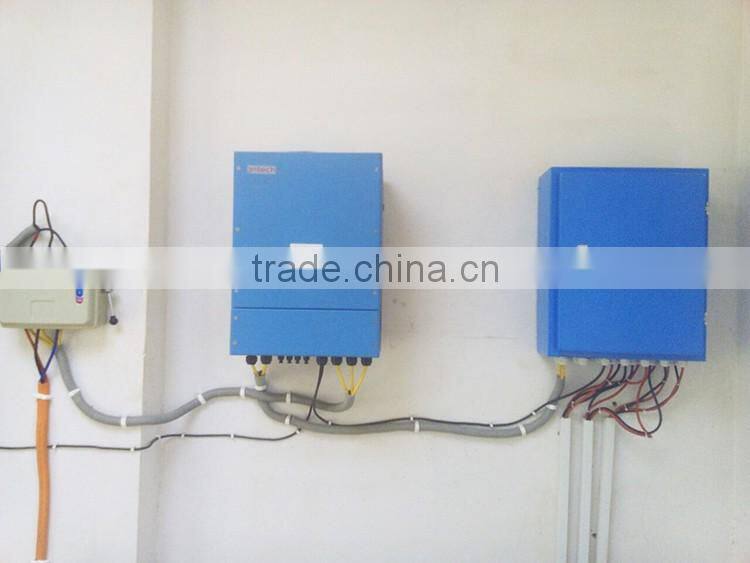

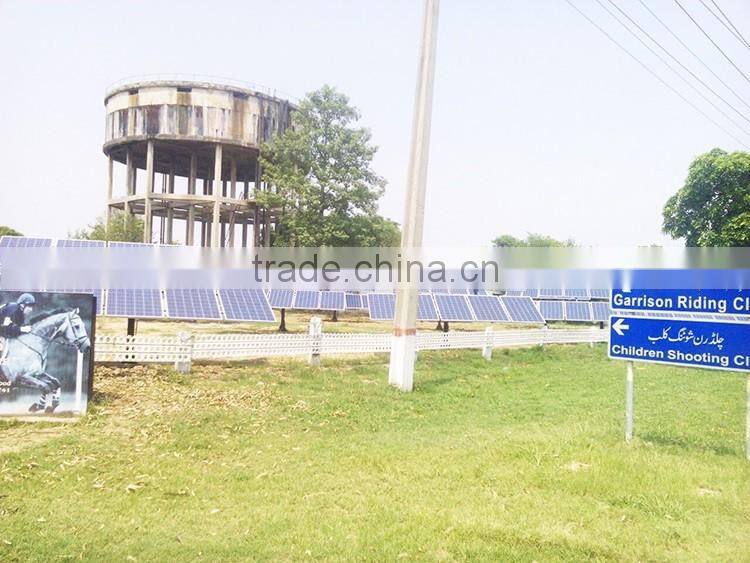

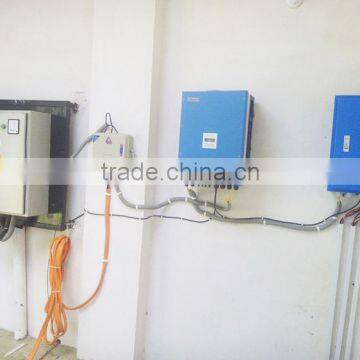

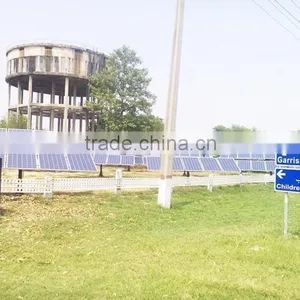

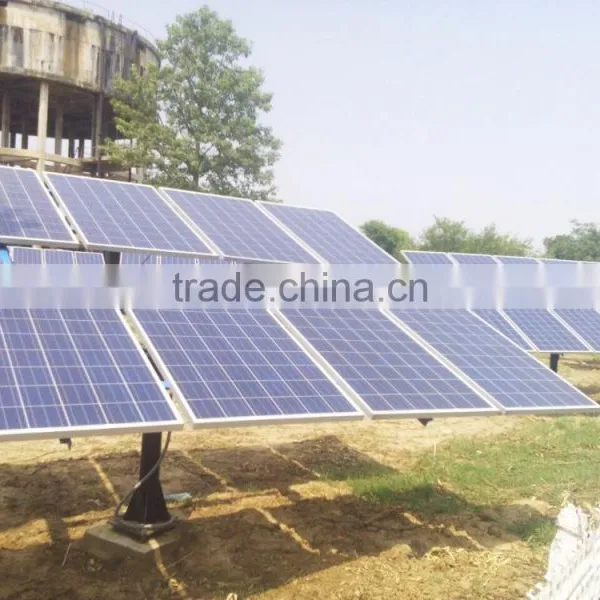

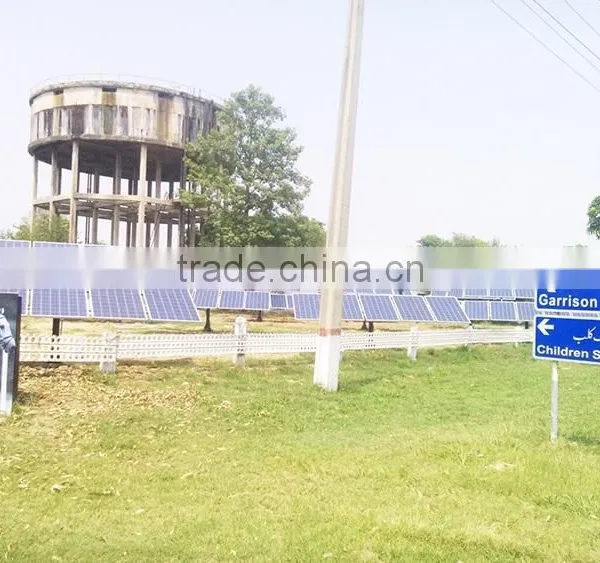

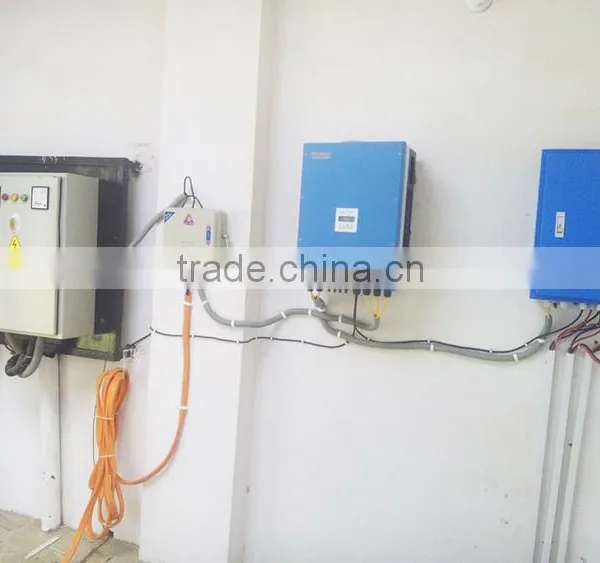

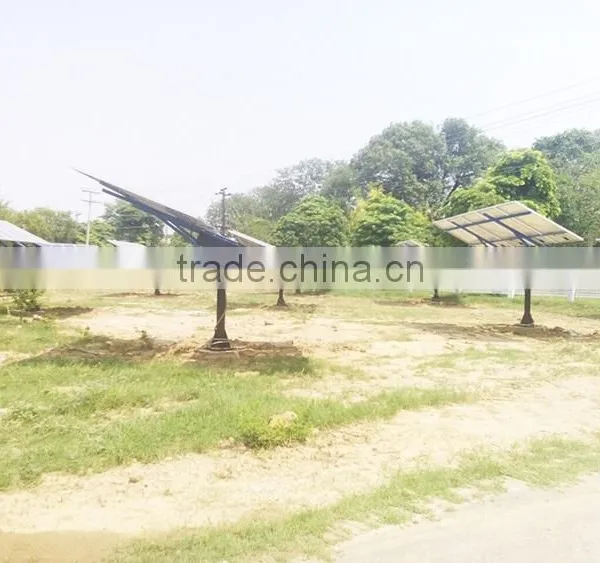

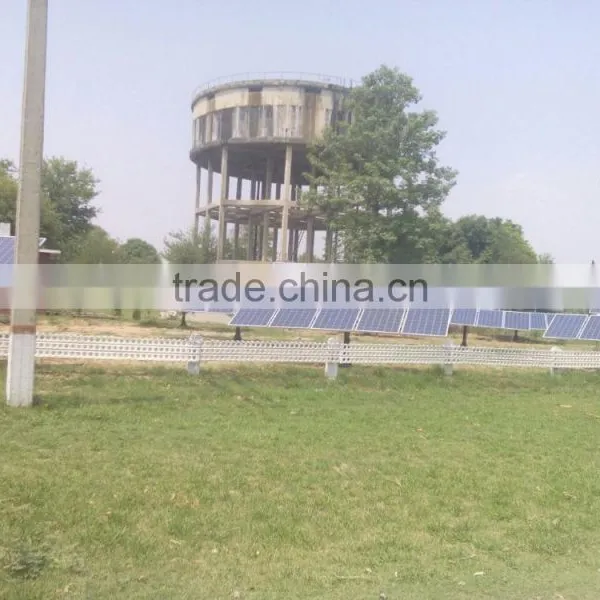

4, ON-Site Projects' Pictures
