3phase DC/AC Solar Pumping Inverter
- 600 Piece / Pieces per Month
- shanghai
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Anhui, China | Brand Name: | JNTECH | Model Number: | JNP5k5H |
Specification: | Normal | Application: | Industrial | Output Voltage (V): | 380Vac~460Vac |
Load Power (W): | 5.5KW | Solar Power (W): | 7KW | Work Time (h): | 8-10 |
Product Description
1. Introduction Of JNTECH Solar pumping inverter
JNTECH solar pumping inverter is not DC inverter but AC three phase inverter, so, the pump is no need
special solar pump. It is normal 3 phase AC pump.
there are two series of JNTECH solar pumping inverter, 220V-240V and 380-460V. Low voltage serie
inverter range from 1.5kw to 4kw. High voltage range from 2.2kw to 37kw until now. The R&D department
are researching 45kw to 110KW solar pumping inverter now.
2. Features of 5.5KW solar pumping system
1), Wide MPPT range,tracking the max. power point to improve the efficiency of the
Whole system. Efficiency is more than 99%.
2), With IP65 design, It can be installed outside with good waterproof.
3), Matching for any ordinary three phase 50Hz pumps.
3), Full protection function can keep the system always in safe operation.
4), Three years warranty time.
5), Modular design,easy to install,operate,maintain
3. 5.5kw solar pump inverter parameters
Max. Input DC voltage | 8800Vdc |
Recommended MPPT voltage | 460-850Vdc |
Max. Input DC current | 12A |
Max. MPTT efficiency | 99% |
Number of Strings | 2 |
Max. applicable motor output power | 5.5KW |
Rated output voltage | 380-460Vac 3 phase |
Output frequency range | 0-50/60Hz |
Rated output current | 13A |
Dimension(W/H/D) | 265x430x166 mm |
weight | 11.1kg |
Max. efficiency | 98% |
Protective class | I |
Protection degree | IP65 |
Environment temperature | -25ºC-+60ºC above 60ºC need derate operation |
Cooling method | Natural cooling |
Display | LCD |
Communication interface | RS485 |
Altitude | 3000m; above 3000m need derate operating |
Noise emission | <50dB |
compliance | EN 50178; IEC/EN 62109-1; IEC61800 |

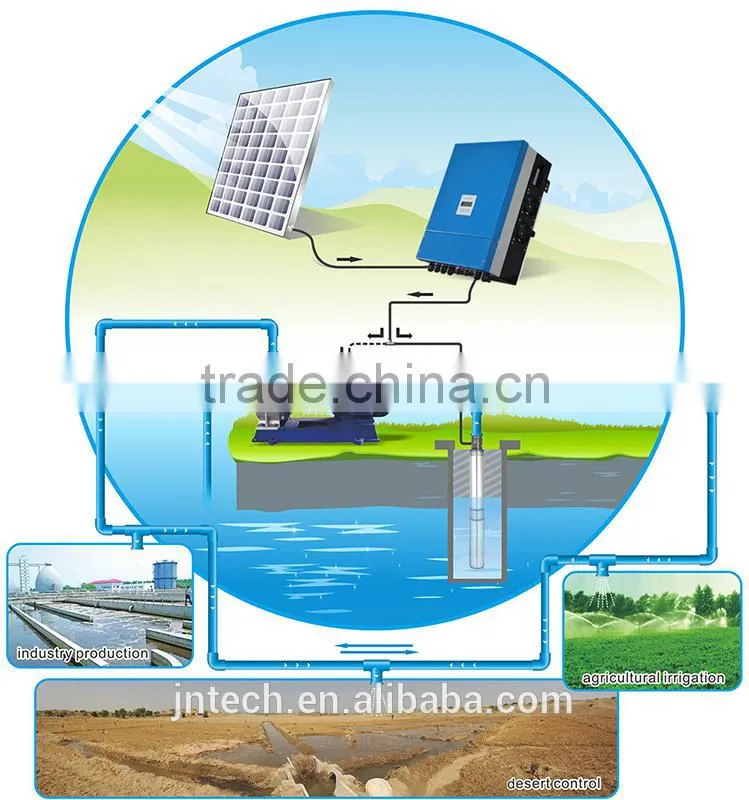

4. Solar pump system introduction
JNTECH Solar pumping system consists of solar panels, solar pumping inverter, (above 18.5kw, there are
PV combiner),three phase AC pump and storage device.
The solar pumping inverter converter the DC from solar panels to AC to drive pump to work. The pump will
pump the water from borehole, lake, river etc. to the storage. The main application of the solar pumping
system are domestic water, agricultural irrigation, desert control, pasture animal husbandry, rural town
water supply and so on.The solar pumping system fulfills concept of low carbon, energy conservation,
environmental protection, to improve the living standard in water-deficient area.

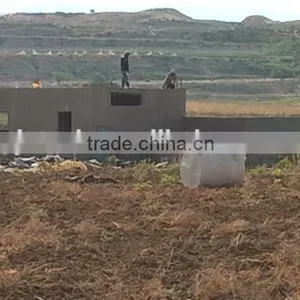

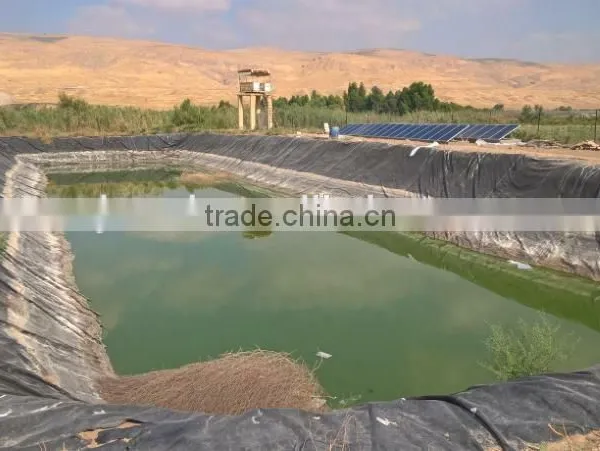

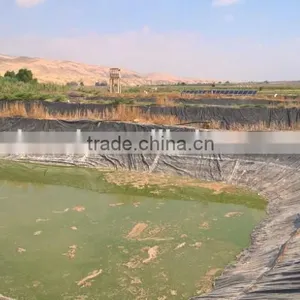

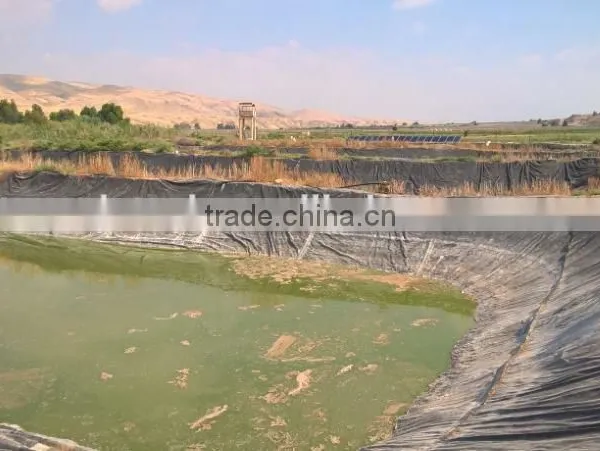

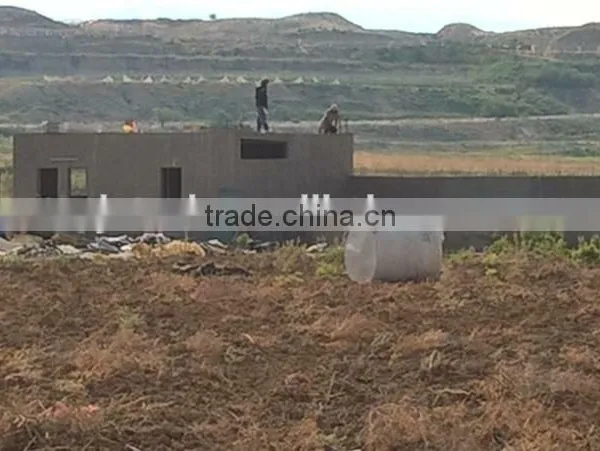

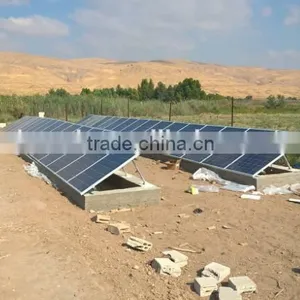

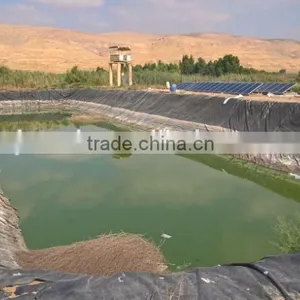

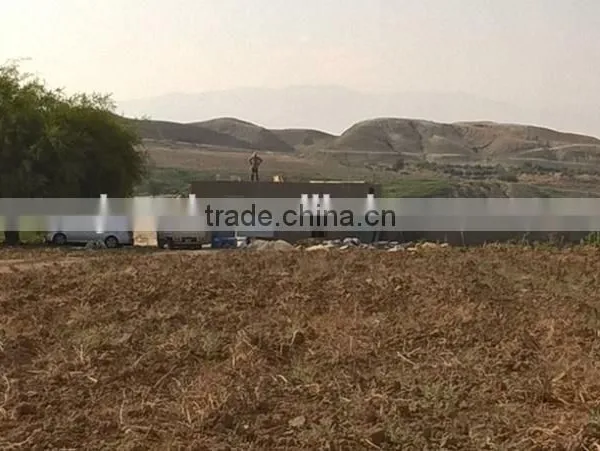

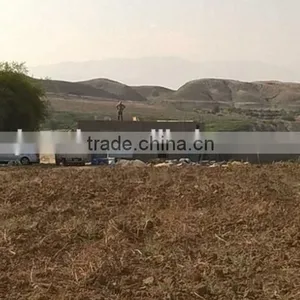

5, Main application of solar pumping system
