Power Supply Unit

Name: Power Supply Unit
Brand: Juneng
SKU: 140309496
Availability: InStock

Hefei Jntech New Energy Co., Ltd.

US$ 3,782 - 3,783 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

Juneng

Model Number:

JNZP50K

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name Juneng

Model Number JNZP50K

Specifications

power Distribution unit100kW
Max DC Voltage 1000V
Capacity from 30kW to 300kW
ABB circuit breakers
Phoenix lightning arresto

power Distribution unit 100kW

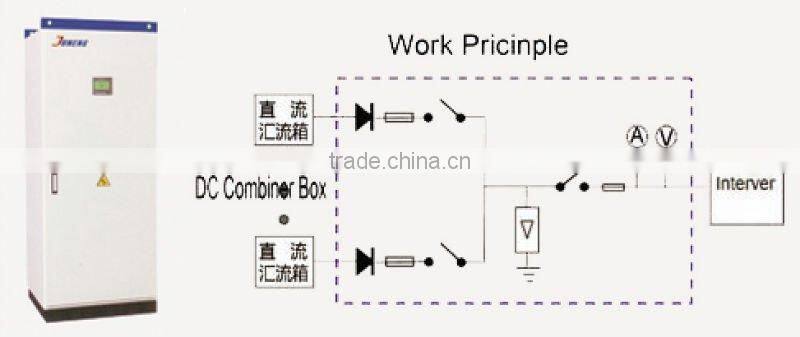

Juneng DC distribution cabinet is suitable for solar power plant, the unit is used for combining outputs of DC combiner boxes, the equipments always have DC breakers, reverse protection Diode and lightning protection Device, the products has the features of high breaking capability, stable dynamic thermal ability, flexible electrical program, strong series and practice, innovative structure, high level of protection, it is convenient combination, easy installation and maintenance

Features

Max DC Voltage 1000V

Capacity from 30kW to 300kW

Simplified system cabling structure

Easy operation and maintenance

Improved system reliability and security
ABB circuit breakers and Phoenix lightning arrestors

Full range of models, customizable and meets various requirements

Technical Specifications

Model	Unit	JNZP30K	JNZP50K	JNZP100K
Max DC output Voltage	Vdc	1000
Recommend Operation Voltage	Vdc	560
Max Power Input	kWp	33	55	110
Number of Inputs		2	3	6
Number of outputs		1	1	1
Ingress Protection		IP20	IP20	IP20
Operating Temperature	°C	-25~+60°C	-25~+60°C	-25~+60°C
Relative Humidity	%	0~99%	0~99%	0~99%
Working Altitude	M	5000	5000	5000
Lightning Protection Level		II (IEC)	II (IEC)	II (IEC)
Dimension	Mm	6001500500		6001500600
Weight	kg	120	130	150
