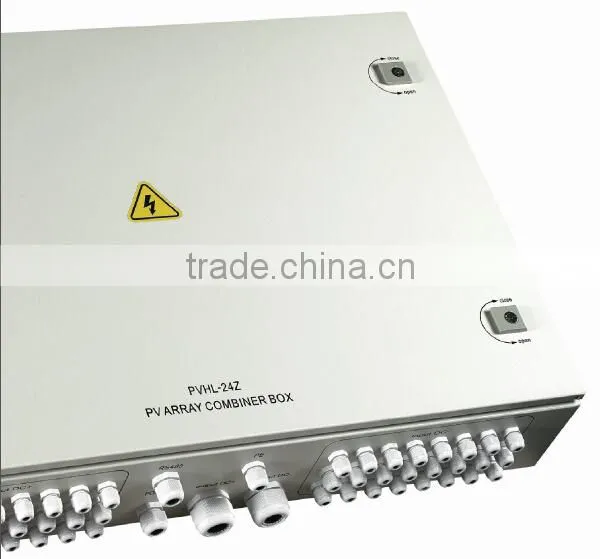

PV Combiner Box for Solar Pumping System
US$ 360 - 410
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Jntech
Model Number:
JNHL08
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Anhui, China
Brand Name
Jntech
Model Number
JNHL08
Type
Other, Solar Power Equipment
PV Combiner Box for Solar Pumping System
1. Simple Introduction of PV combiner box:
Jntech PV combinex box shall be used for solar pumping system from 22kW to 132kW, in order to reduce connecting cables for easy maintenance and low cost and to keep safety and reliability.
The combiner box has current counter-attack,over current,over voltage function and lighting protection as well.
Customized design possible.
2.Technical Parameters:
| Model | Unit | JNHL06 | JNHL08 | JNHL12 | JNHL16 |
| PV Array Max. Voltage | Vdc | 200~1000 | |||
| Max. numbers of Input | 6 | 8 | 12 | 16 | |
| Max. DC Current for each String | A | 5A/10A/12A/15A | |||
| Output Terminal Type | PG21 | PG21 | PG21 | PG21 | |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | |
| Dimensions | mm | 500×400×175 | 550×500×175 | 600×500×175 | 650×500×175 |
| Operating Temperature | °C | -25~+60°C | -25~+60°C | -25~+60°C | -25~+60°C |
| Relative Humidity | % | 0~99% | 0~99% | 0~99% | 0~99% |
| Standard Configuration | |||||
| DC Circuit Breaker | Yes | ||||
| SPD | Yes | ||||
| Optional Components | |||||
| Communication | RS485 | ||||
