home flexible solar
Technical Specification
System Model |
Unit |
JNISG3K |
Support Loads | ||
6*5W LED lamp work 4- 6hrs/Day |
1 of AC 900W air Conditioner work 6 ~8hrs/Day |
|
1 of AC 120W TV work 3~4 hrs/Day |
1 of 300W washer work 0.5 hour/day |
|
1 of 300W pump work 0.5 hour/day |
1 of Computer 150W work 4 hour per day |
|
1 of 800W Rice cooker work 0.5 hr/day |
1 of 150W cooler work 24 hours per day |
|
Power Output | ||
Power Supply |
kWh |
300kWh/M |
Max power |
W |
AC5000W |
Output Voltage |
V |
AC230 |
Solar Module | ||
Peak Power |
Wp |
Mono Silicon 170Wp |
Quantity |
Pcs |
18 |
Power Machine (Combined with Controller/ Inverter) | ||
Controller DC input Voltage |
V |
110V |
Controller DC input current |
A |
30A |
Inverter AC Output Power |
W |
AC5000W |
Machine Size |
mm |
L550*D500*H1000 |
Accessories |
/ |
Switch, Breakers, meters, LCD display, AC outputs |
Battery & Rack | ||
Battery Capacity |
/ |
AGM VRLA ,110V/200Ah |
Rack |
|
Hot galvanized metal |
Panel Mounting Rack | ||
Installation Method |
/ |
Grounding/Roof Mounting |
Material |
/ |
Hot galvanized metal/aluminum |
Accessories | ||
Cables |
/ |
Panel---Power Machine fast connection 15 meters
|
Optional |
/ |
5W LED bulb with cable |
System Includes |

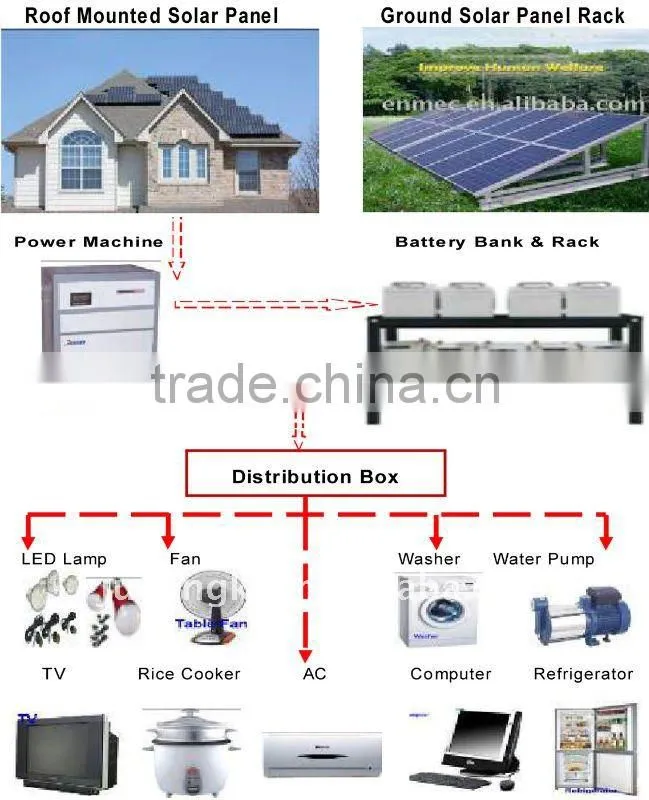

Solar Panels and Rack, Power machine, cable, Battery & Rack |
|
(solar inverter, grid connected inverter, on grid inverter, in grid inverter, grid intertied inverter,frequency inverter, solar system inverter, LCD inverter, energy inverter, solar panel inverter,power inverter, SAA inverter)
