Help CenterSolar Generator
Related Products
Specifications
Power Supply 6.7 kWh/MonthSupport Loads 3* 14W AC lamp Or 1*42W fan Work 6 hours/day
Easy Installation, DIY system
Application area:
The off grid solar power systems are often used in remote area, pastoral area, Border, Island areas, and places shortage of electricity; The solar system may be used for houses, office, BT station and so on;
Off-grid solar power makes it possible to use power for light, fans, AC like living in a city powered by the utility grid, but without the electric bill
Off grid solar power system also takes you out from troubles when grid failures, makes you use power easy without interruptions in home, office
Technical Characters:
High conversion efficiency, reliable and multi functions controller inverter
Controller and inverter in one body, with bypass grid power connection as option, which high quality and reliable, often has LED, LCD display and RS232/RS485 connect interface
Full range of protections by control inverter machine
Easy installation for small sizes of systems, and easy operation
Top grade solar panels, and deep cycle VRLA or gel battery
System design with shallow discharge average DOD lower than 30%, maximizing its life span
Special battery box makes you house more safety, and makes battery from dust, water and so on
Notes:
System basis of average solar irradiate more than 4kWh/m2/D,15c~25c temperature, weekly rain less than 2 days, different place with different solar irradiate and rainfall, temperature and so on, should make necessary configuration changes
Type |
Unit |
JNISG80W |
|
Power Output |
Power Supply |
kWh/Month |
6.7kWh/M |
Power |
W |
AC200W |
|
Voltage |
V |
230/110V |
|
Frequency |
Hz |
50/60Hz |
|
Load Recommend |
3 AC lamps or 1 Fan (appr 42W@6hrs) |
||
PV Panel |
Type |
Mono Silicon |
|
Peak Power |
Wp |
80Wp |
|
Vmp |
V |
17.3V |
|
Quantity |
Pcs |
1 |
|
Controller & Inverter |
Power |
W |
AC200W |
Input Voltage |
V |
12V |
|
Input Current |
A |
10A |
|
Grid Bypass |
V/Hz |
230/110V±15%,50/60Hz |
|
Size |
mm |
400 X 238 X 180 |
|
Weight |
Kg |
12 |
|
Accessories |
Switch, Breakers, meters, LED display |
||
Quantity |
1 |
||
Battery |
Type |
VRLA |
|
Voltage |
V |
12V |
|
Capacity |
Ah |
80Ah |
|
Size |
332×174×240 |
||
Weight |
Kg |
30 |
|
Quantity |
Pcs |
1 |
|
Structure |
Installation Method |
Pole Support, 300×300mm flange |
|
Panel support Material |
40*4mm Angle steel structure, Φ10*150cmm pole with gavanlized and plastic spray |
||
Screw Material |
Stainless |
||
Screw Quantity |
8*(M6×20) |
||
Cables |
10M Sheathed wire RVV2×2.5mm2 |
||
Battery box |
Size |
Lockable 400mm×400mm×300mm |
|
Material |
galvanized steel and with plastic spray |
||
Weight |
10kg |
||
Quantity |
1 |
||

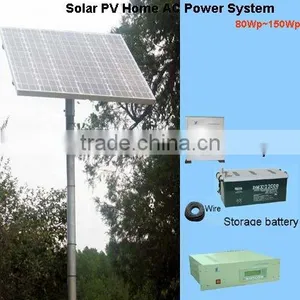

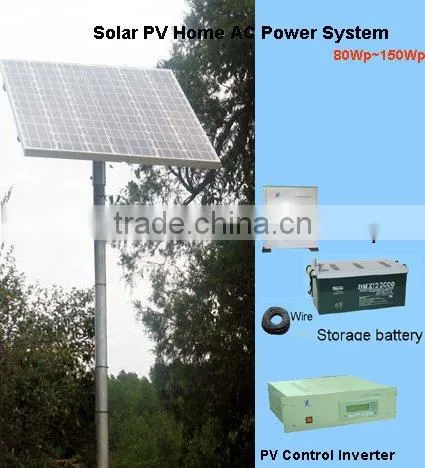

The Complete system including |
Solar panel, installation structure and kits, controller, inverter, battery, and cabinet for controller and battery, 10M cables |
||
