Home used solar system 5000w
Power Supply: 300kWh per month
You can use: 6 sets of 5W LED each work 6~8 hours per day, Plus 1 set of 60W fan, Plus 1 of 120W TV, and 1 of washer machiner or 1 water pump, plus 1 150L refrigerator work 24 hours per day, 1 Computer , 1 Rice cooker and 1 air conditioner
You can installation the system yourself
You can use power in romote area, without of costs of long distance cables like grid power net
You can use power free of money
You can save money when you use solar system even there already has grid power
You can use solar system everywhere and any time ony if have sun
You can use power without of noise, without of polution

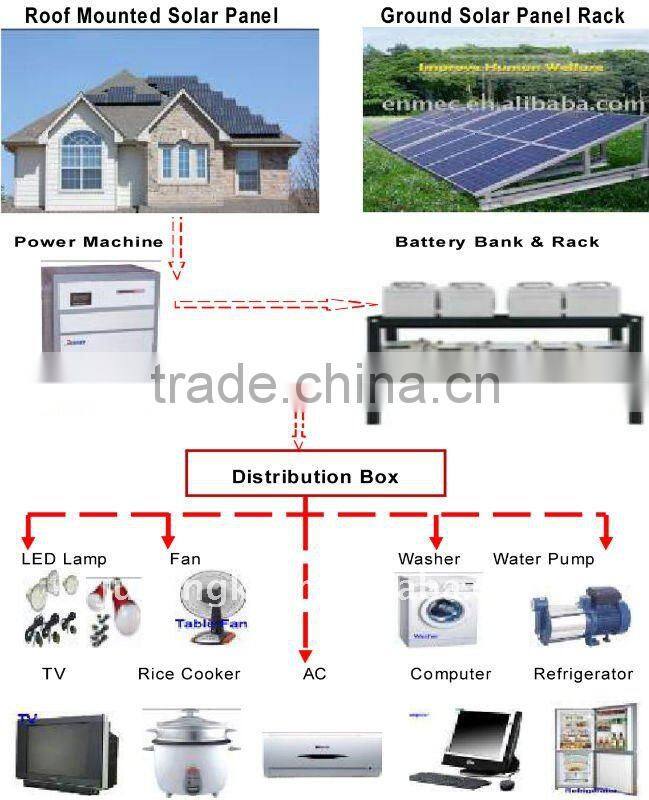

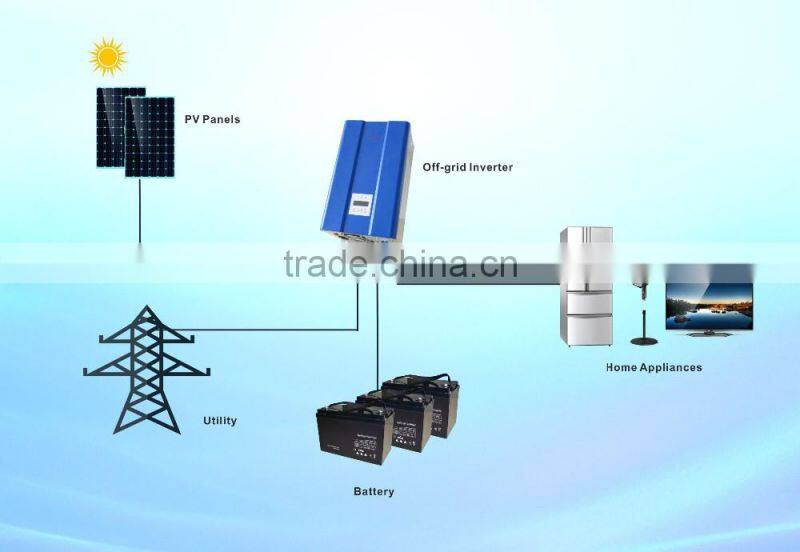

System Includes
Solar Panel 3000W solar panel with Rack

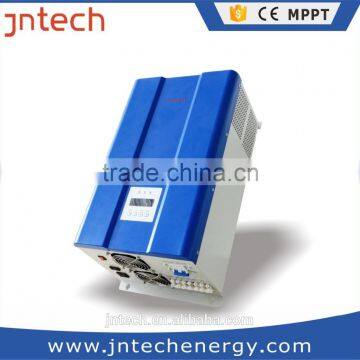

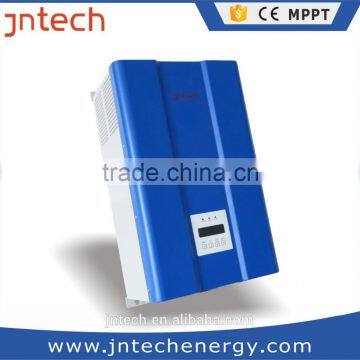

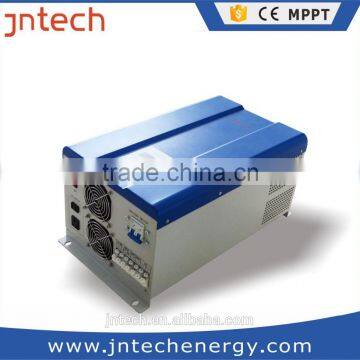

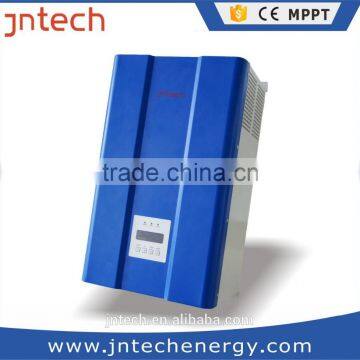

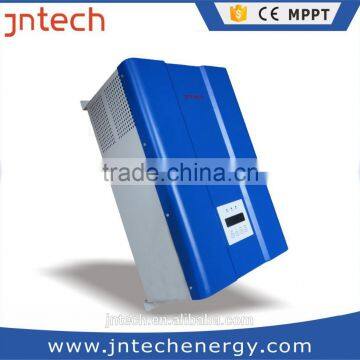

Power machine which combined with inverter 5000W, controller,
Battery 110V/200Ah with battery rack
Connection cable for inverter and Solar Panels
Optional for : LED lamps, TV, fan and so on
Solar Home System Technical Characters:
High efficiency solar module from 15Wp to 300Wp, CE, UL, TUV approved
LED Display monitoring system working condition, like power available, power low and so on
Both DC and AC output, widely used for rural homes powering lamp, fan, washer, TV, cooler
Anti corrosion mounting system, hot galvanized metal, aluminum material and stainless accessories sure its long life span
Adjustable Solar panel rack, widely used for different places; Various installation way like wall mounted, grounding or installed by standing pole
Easy DIY installation design; Integration battery, controller, inverter and all electric accessories inside in one body, which also has fast connection terminals, switches, breakers
Compact design of Power box, with full range of protections and lockable door for battery compartment, the system is powerful and safety for power use. It would be put on table or mounted on the wall
Portable and Easy disassembly, solar panel rack was easy disassembly design, it would not need to disassemble the panel and rack for taking; And all cables, LED lamps are fast connection terminals
Complete Solution for a rural home, we supply compact solar system together with LED lamps, DC fan, TV and Receiver and so on
Technical Specifications
System Model |
Unit |
JNISG3K |
Support Loads | ||
6*5W LED lamp work 4- 6hrs/Day |
1 of AC 900W air Conditioner work 6 ~8hrs/Day |
|
1 of AC 120W TV work 3~4 hrs/Day |
1 of 300W washer work 0.5 hour/day |
|
1 of 300W pump work 0.5 hour/day |
1 of Computer 150W work 4 hour per day |
|
1 of 800W Rice cooker work 0.5 hr/day |
1 of 150W cooler work 24 hours per day |
|
Power Output | ||
Power Supply |
kWh |
300kWh/M |
Max power |
W |
AC5000W |
Output Voltage |
V |
AC230 |
Solar Module | ||
Peak Power |
Wp |
Mono Silicon 170Wp |
Quantity |
Pcs |
18 |
Power Machine (Combined with Controller/ Inverter) | ||
Controller DC input Voltage |
V |
110V |
Controller DC input current |
A |
30A |
Inverter AC Output Power |
W |
AC5000W |
Machine Size |
mm |
L550*D500*H1000 |
Accessories |
/ |
Switch, Breakers, meters, LCD display, AC outputs |
Battery & Rack | ||
Battery Capacity |
/ |
AGM VRLA ,110V/200Ah |
Rack |
Hot galvanized metal |
|
Panel Mounting Rack | ||
Installation Method |
/ |
Grounding/Roof Mounting |
Material |
/ |
Hot galvanized metal/aluminum |
Accessories | ||
Cables |
/ |
Panel---Power Machine fast connection 15 meters |
Optional |
/ |
5W LED bulb with cable |
System Includes |
Solar Panels and Rack, Power machine, cable, Battery & Rack |
|
