steel beam rolling machine
- 5 Set / Sets per Month
- qingdao lianyungang
- T/T
- Power module Positive + Negative Electric Board Card for Thermatool High Frequency Welder
- Spiral Welded Pipe Tube Machine Line
- HF Welded Carbon Steel Furniture Pipe Making Machine
- Carbon Steel GI ERW Profile Shape Making Machine
- Black Tube Former Machinery HF Square Pipe Forming Machine
- HF Welded Straight Seam Metal Tube Production Line
Product Details
Condition: | New | Type: | Cold Rolling Mill | Place of Origin: | Henan, China |
Brand Name: | hao zhou | Model Number: | 160/550*600 ,200/550*1700,200550*1300 etc | Voltage: | as different kinds of machinery |
Power(W): | as different kinds of machinery | Dimension(L*W*H): | as different kinds of machinery | Weight: | as different kinds of machinery |
Certification: | ISO9001:2008 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
steel beam rolling machine
Company information:
We are professional manufacturer of rolling mill equipment.We are specializing in the production of various models of cold and hot rolling mill/aluminum rolling mill, steel production line.After more than twenty years hard-working,it has developed to high modern enterprise.
Our main products are as following:nonferrous metals rolling mill equipment and ferrous metal rolling mill equipment and brick making machine, etc. Our factory principle is"Quality is first,Client first" to offer high quality goods and serve clients fully is our working aim.
As one manufacturer, we have over 20 years of experience in manufacturing, designing, testing and R&D. Our factory covers an area of 100,000 square meters. Our products are sold all over the world and used in construction projects of various scales.We are dedicated in manufacturing top-class products with competitive price and our products are widely welcomed by domestic and foreign groups in the fields of construction, power, water, highway, railway, bridge erecting, and so on.

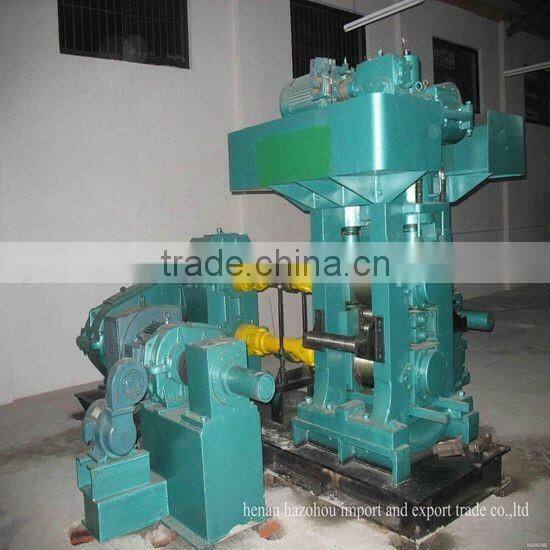

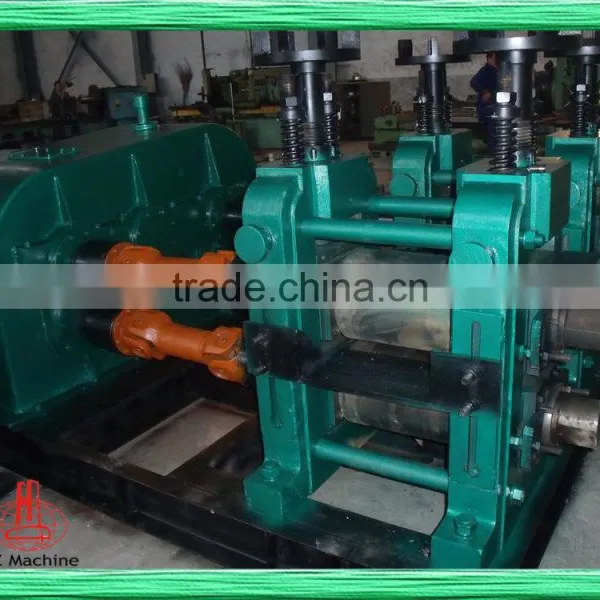

Two-roller rolling mill:
Technical parameters specification :
Type (mm) | Main technical date | Motor power (kw) | Weight (t) | remarks | |||||||
Roller size(mm) | Billets size(mm) | Final products size(mm) | Rolling force(KN) | Rolling speed (m/s) | |||||||
Roller length | Roller diameter | thickness | width | thickness | width | ||||||
¢170×300 | 300 | 170 | 2.0 | 200 | 0.17 |
| 450 | 0.2-0.4 | 24.5 | 4.7 | Mainly Used For Hot And Cold Rolling Mill
|
¢250×300 | 300 | 250 | 10 | 200 | 0.5 |
| 1000 | 0.3 | 55 | 8.5 | |
¢250×350 | 250-350 | 184-200 | 6 | 200-260 | 1.2 |
| 1000 | 0.3 | 75 | 11.5 | |
¢310×400 | 400 | 300-310 | 0.45 | 140-300 | 0.12-0.15 | 140-300 | 1176 | 0.99 | 125 | 23.9 | |
¢350×350 | 350 | 350 | 12 | 240 | 1 |
| 1250 | 0.49 | 115 | 30.6 | |
¢420×350 | 350 | 420 | 30 | 250 | 1 |
| 1800 | 0.45 | 160 | 48.5 | |
¢450×850 | 850 | 455-485 | 30 | 330-560 | 0.45 |
| 3500 | 0.88 | 180 | 52 | |
¢500×1200 | 1200 | 500 | 10 | 1050 | 0.5 |
| 4000 | 0.63 | 240 | 58 | |
¢500×1350 | 1200 | 510-490 | 20 | 1100 | 0.8 | 1100 | 5000 | 0.89 | 280 | 62 |
Products profile: This two roller continuous rolling mill is used for continuous cold rolling of copper rods.The rolls of this mill adopt short cantilever support and can be quickly replaced.The transmission system and bearings are lubricated by pressure oil,copper rods are cooled by emulsion,and it is assured that lubricating oil and cooling emulsion are completely separated.This equipment is reliable and low on maintenance cost. The line is composed of main motor, reducer box, rolling mechanism frames, thin-oil lubrication system, emulsion system, and take-up unit.
Featuring:1.high efficiency, lower power consumption
2.capability of fining and reinforcing crystal structure of copper rods
3.Its operation is easy and flexible.
4.The rods to be rolled are introduced at crawl speed.
5.It can be reversed and be started at full load.

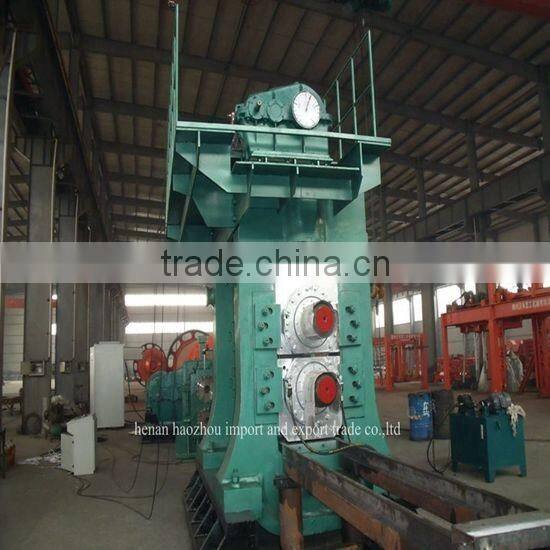

Four-roller rolling mill:
Type | Main technical date | Motor power (kw) | Weight (t) | ||||||||
| Roller size(mm) | Billets size(mm) | Final products size(mm) | Rolling force (KN) | Rolling speed (m/s) |
|
| ||||
| Bearing roller diameter | Roller length | Roller diameter | Thickness | Width | Thickness | Width |
|
|
|
|
Ø90/240×300 | 240-230 | 250 | 90-80 |
|
|
|
| 650 | 0.4 | 30 | 9.74 |
Ø100/300×350 | 300 | 350 | 100 |
|
|
|
| 800 | 0.5-0.76 | 55 | 11.7 |
Ø120/320×300 | 320 | 300 | 120 |
|
| 0.5-1.5 | 120 | 1200 | 0.14-0.41 | 75 | 14.7 |
Ø165/400×350 | 400-380 | 350 | 165-156 |
|
|
|
| 3000 | 0.25 | 75 | 18.63 |
Ø180/420×850 | 420 | 650 | 180 | 3 |
| 0.3-2.5 |
| 4000 | 0.5-3 | 160 | 42 |
Ø200/500×800 | 500 | 800 | 200 | 1 | 700 |
|
| 5000 | 3~5 | 630 | 60 |
Ø165/200×520 | Ø200 Ø 520 | 600 | Ø165 |
| 500 | 0.12 |
| 4000 | 3~5 | 280 | 100 |
Ø180/260×750 | Ø260 Ø750 | 800 | Ø180 |
| 800 | 0.12 |
| 6000 | 3~5 | 1019 | 160 |
Products profile:1.This four cold rolling mill consists of main motor, decelerator, double helical gear seat, universal joint spindle, bracket, operating machine seat, electrical pressing machine, left and right coiling machine, hydraulic station and DC electric control.
2.The material of support roll is 9Cr2Mo.
3.The bearing seat is equipped with roll exchange device.
4.This machine uses support roll drive, with large frame rigidity. The roll uses the bearing exclusive for rolling mill. The pressing wheel uses the secondary envelope surface, with large pressure. This machine includes reversing or non-reversing one, and it is applicable to the medium and fine rolling. It is the ideal equipment for rolling ordinary carbon steel, alloy, stainless steel, copper and aluminum.

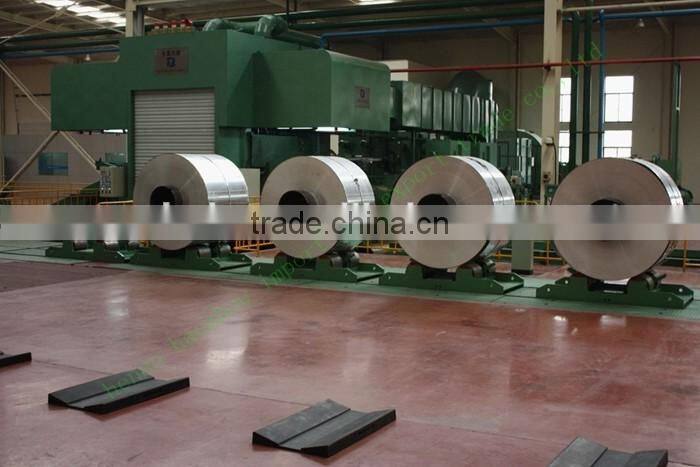

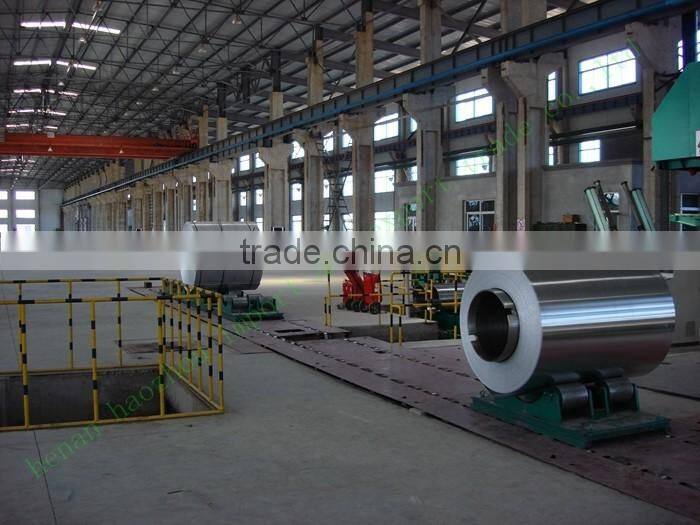

steel beam rolling machine
Technical parameters specification :
parameter Mill | Four-high cold rolling Mill | Six-high cold rolling Mill | Twelve-high cold rolling Mill | Twenty-high cold rolling Mill |
Material | Low carbon stell,Low alloy steel | Low carbon steel,low alloy steel ,high-quality carbon steel | Common carbon steel ,stainless steel | Low carbon stell,high-quality alloy steel,precise alloy steel,stainless steel and silicon steel |
Incoming Thickness | 1.5-4.0mm | 1.5-4.0mm | 2.0-3.0mm | 1.0mm |
Product Thickness | 0.18-2.0mm | 0.18-1.2mm | 0.05-1.0mm | 0.01-0.4mm |
Max Rolling Speed | 420m/min | 1000m/min | 400m/min | 500m/min |
Type | 350,480,650 | 700,900,1050,1200,1450,1750 | 700,900,1050,1200,1450 | 700,900,1050,1200,1450 |

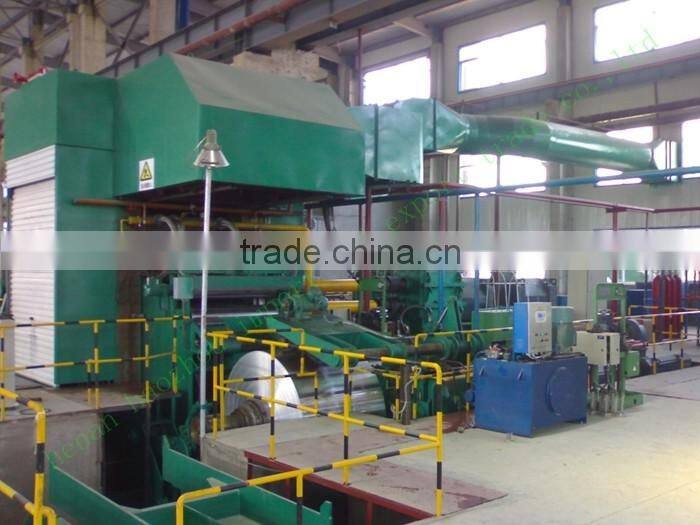

Products profile: Reversible cold rolling mill is that one stand of mill is laid out in the line, and strip will pass the mill reciprocally till termination product. This line is characteristic with low cost, small occupation and flexible production. We can provide four-high reversible cold rolling mill, six-high reversible cold rolling mill, twelve-high reversible cold rolling mill and twenty-high reversible cold rolling mill.
Process Flow: Entry Coil car →Pay-off Reel →guide board →pinch roll →straightener →passing guide board → coiler → deflector roll →thickness gauge → right oiler →CPC→main roller mill →left oiler →thickness gauge →end shear → deflector roller →coiler →wrapper →exit coil car or saddle
Successful cases:
so far as now, our rolling mill are sold in Mongolia, Uzbekistan, Kazakhstan, Congo, Nigeria, Singapore, Ghana, Russia, Chile, Philippines, Kenya, Armenia, etc.
What's more, they have received praise with good quality and excellent after-sale service.
You are always welcomed to visit our company and workshop!
steel beam rolling machine
Our services:
As a professional exporter,our target is to serve worldwide clients with high-quality products,great reliability,devoted responsibility,professional services and honorable credibility to meet customers' requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
1) We customize the products according to the customers’ requirements. If you are not sure about the exact product you want, we can give you some advices, according to your factory’s area, annual capacity, raw material, your finished products.
2) We provide the complete unit foundation flat layout chart so that the construction and installation can be done easily.
3) We provide the methods of the maintenance of products.
4) Engineers are available to service machinery overseas.
If there is any question, pls kindly write to me, I will answer as soon as possible.
