12VDC Solar Tracker Linear Actuator

12VDC Solar Tracker Linear Actuator thumbnail-1
12VDC Solar Tracker Linear Actuator photo-1
US$ 36.8 - 45.8 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Summit
Model Number:
LA-ST
Contact Supplier Request Quote Chat Now
Wenzhou Huifeng Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Summit
Model Number LA-ST
Usage Boat, Car, Other, Boat, Car, Solar tracker system
Type Gear Motor
Construction Permanent Magnet
Commutation Brush
Protect Feature Waterproof
Voltage(V) 12V,24V,36V
Efficiency IE 2

Specifications

1 solar tracker system
2. Robust
3. Waterproof
4.4500N load
5.Adjustable limit switch

Feature:





v Easy Installation.



v Adjustable limit switches



v High Quality Reed sensor(optional)



v Ultra Low Noise Operation



v Strong Gear Box



v Corrosion & Resistance durability



Specification:





Model

                       LA-ST



Screw Type

Acme screw

Input Voltage

12VDC, 24VDC, 36VDC

 Load Capacity

4500N,

3500N

3000N

Static Load

10000N,

Stroke Length

18, 24, 36 inches

Speed at full Load

2.5mm/s



4mm/s

5.5mm/s

Duty Cycle

10%

Operation Temperature Range

   -26ºC~65ºC (-15ºF~150ºF)

Limit Switch

Adjustable

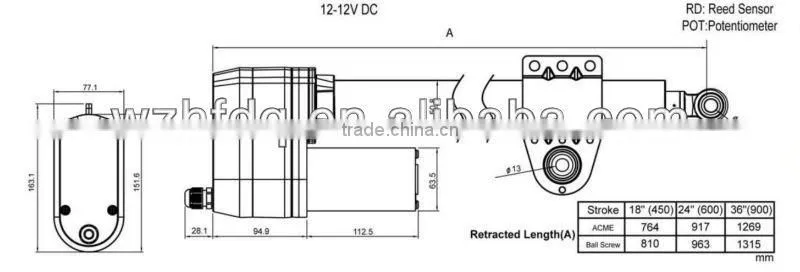

Drawing:







12VDC solar tracker linear actuator

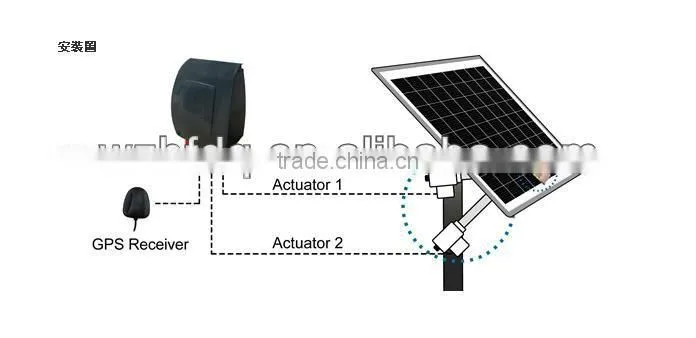

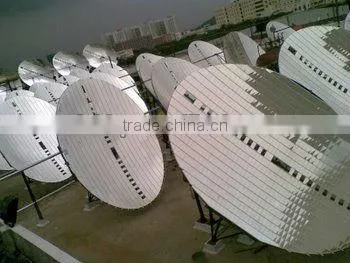

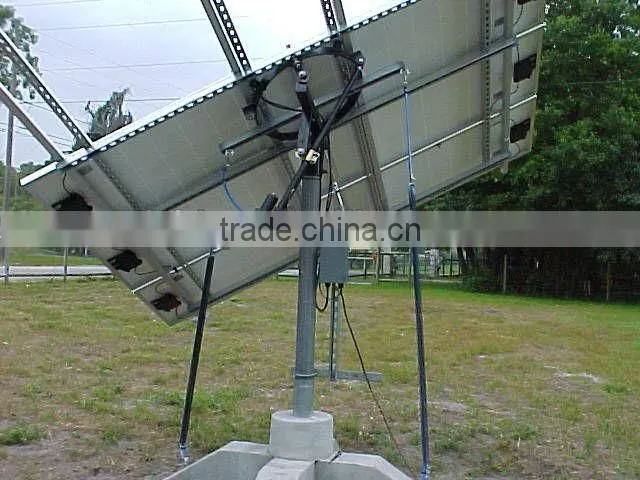

Application:



12VDC solar tracker linear actuator

12VDC solar tracker linear actuator12VDC solar tracker linear actuator
