dual actuator for electric bed machanism

FOB Price

USD $45 - $80 / Set

100 Sets(Min.Order)

Product Details

Material:	Plastic	Use:	Bed	Place of Origin:	Zhejiang, China
Brand Name:	Summit	Model Number:	LA-B10

1. low noise
2.Stable performance
3.Easy installation
4.Long lifespan
5. wired and wireless remote

Feature

Input Voltage	110VAC/230VAC
Motor Voltage	24VDC
Load Capacity	2*4500N
Speed(mm/sec)	5.6 mm/sec
Stroke	48/69/74/87mm
Limit Switch	Inner limit switch
Installation Dimension	581 mm
Duty Cycle	10%( 2 mins on 18 mins off)
Protection Grade	IP 20
Ambient temperature	-25°c to 65°c
Relative Humidity	20%- 70%
optional	Connect one or two linear actuator and handset or two massage motor

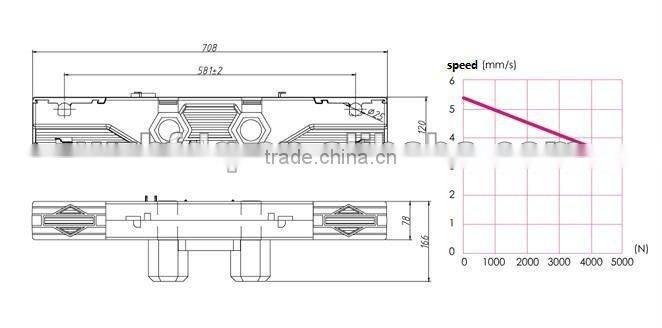

Drawing

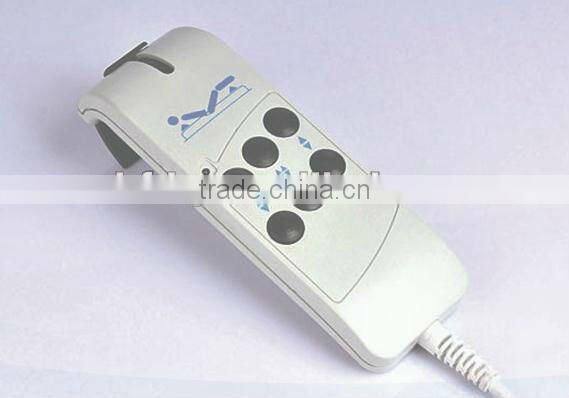

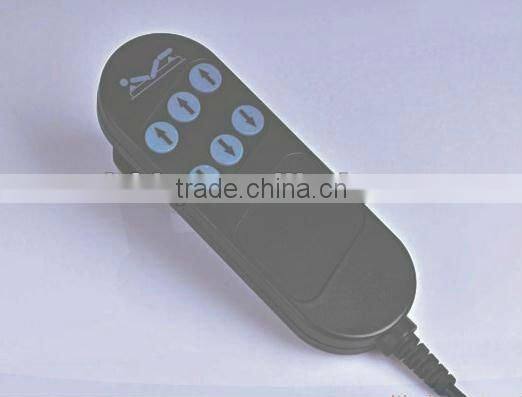

Wired Remote

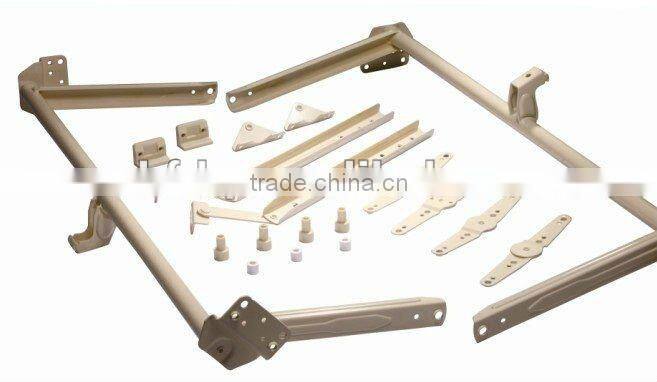

Machanism

Wenzhou Huifeng Electric Co., Ltd.: Contact namelaureus wang; Phone86-0577-85698885; AddressNO.406 xiajin road, Nanbaixiang sub-dist. Ouhai dist. Wenzhou,Zhejiang
