Agriculture Machinery
US$ 200 - 3,200
MOQ: 10 Sets
Key Specifications
Get Latest Price
Condition:
New
Application:
Farm
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing dao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lawn Mower/Grass Cutter/Rotary CutterUS$ 100 - 500MOQ: 1 Set -
One - Way Plow Reversible Disc PloughUS$ 260 - 1,450MOQ: 1 Set
-
Agricultural EquipmentUS$ 500 - 1,500MOQ: 1 Set
-
Farm Equipment Tractor Boom Sprayer With Good QualityUS$ 2,000 - 2,200MOQ: 1 Set
-
Multifunctional Tractor Boom Sprayer on SaleUS$ 2,000 - 2,200MOQ: 1 Set
Condition
New
Application
Farm
Type
Combine Harvester
Drive Type
Other, tractor traction
Usage
Other, Farm
Place of Origin
Shandong, China
Brand Name
Dadi
Model Number
1BZ
Dimension(L*W*H)
many
Weight
260-4500KG
Certificate
Other, ISO9001
Warranty
Two years
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
agricultural machinery

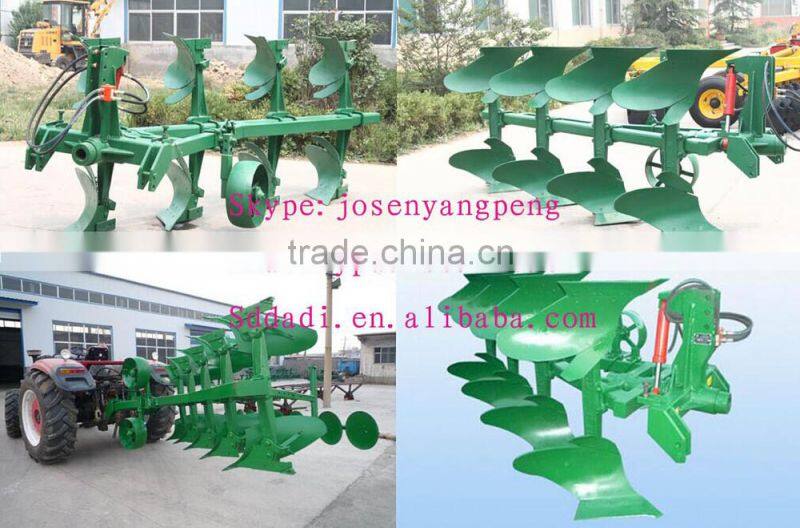

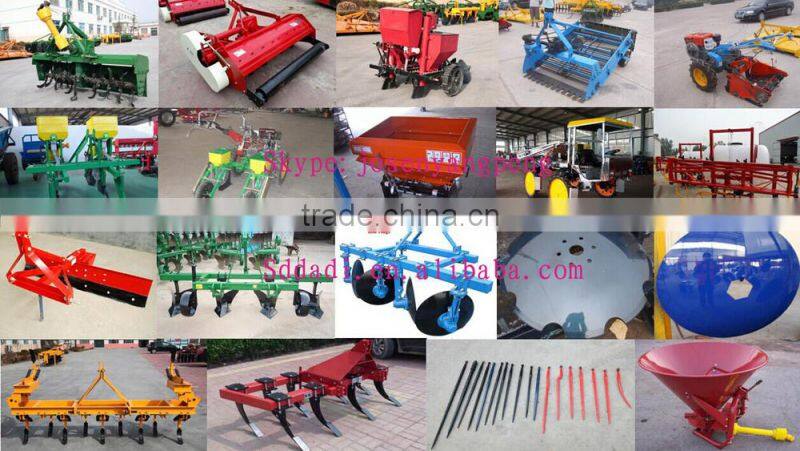

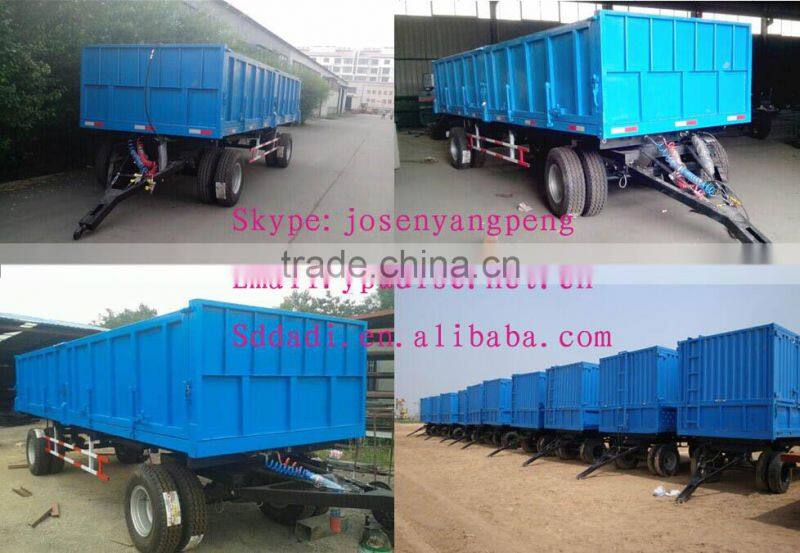

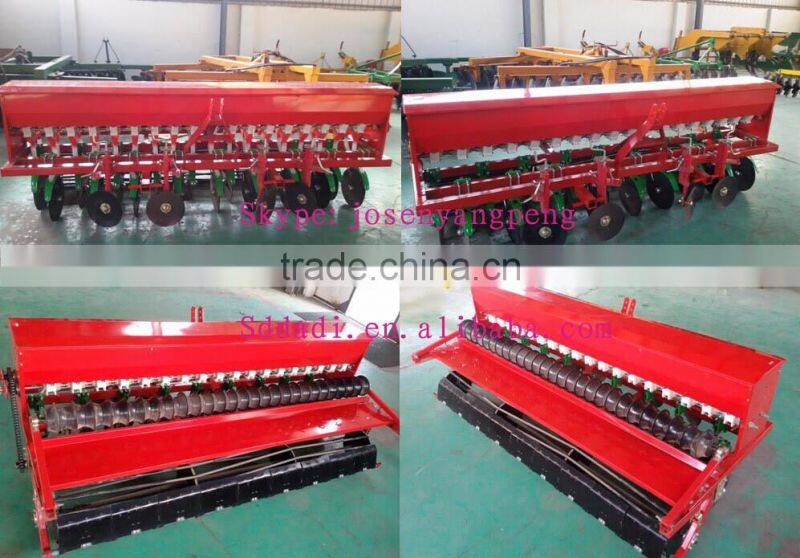

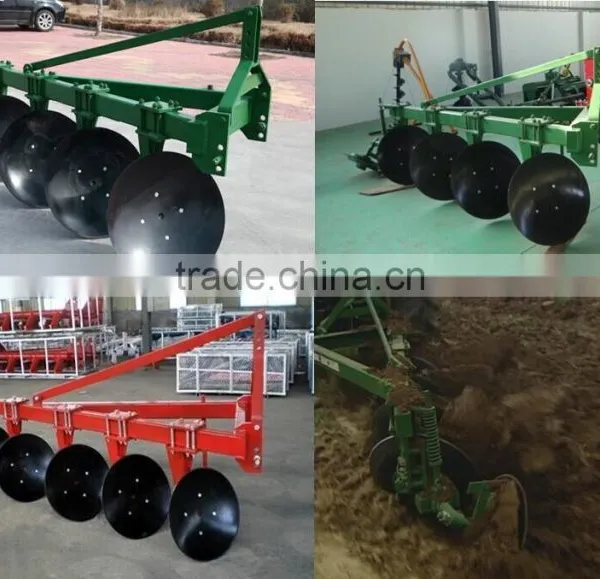

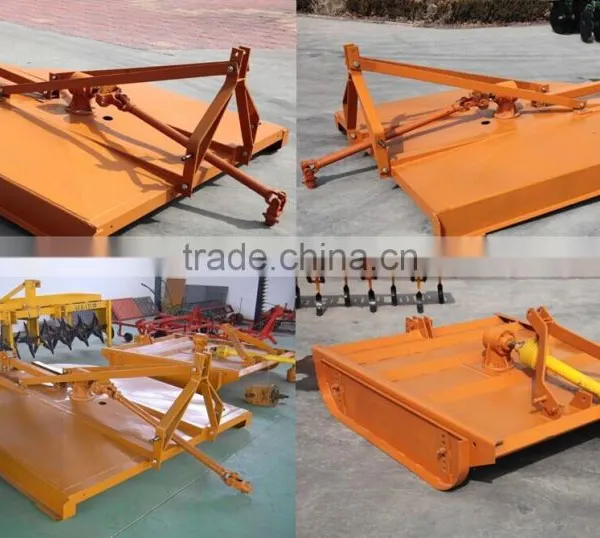

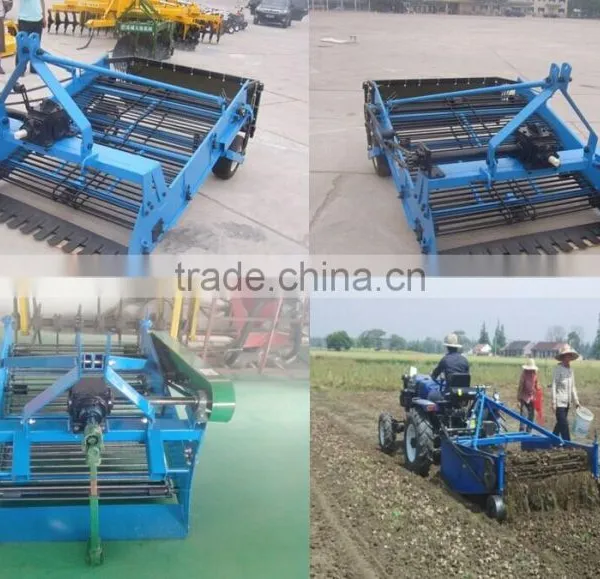

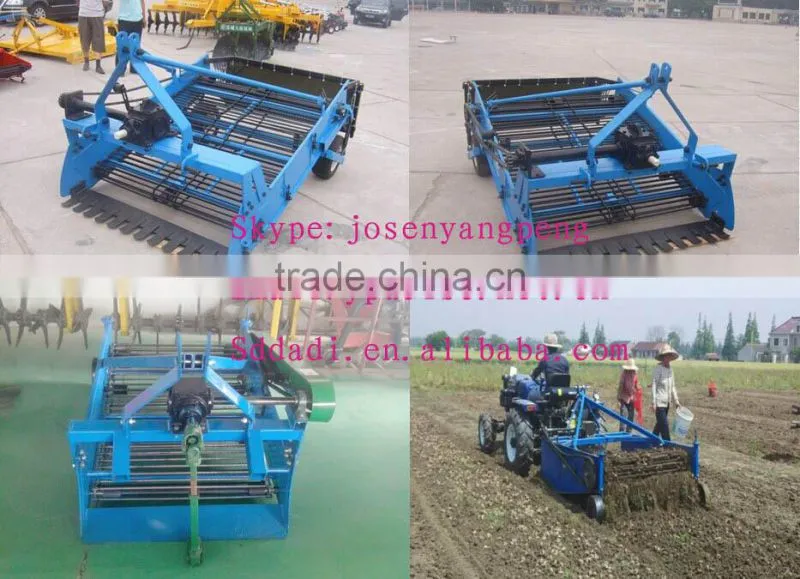

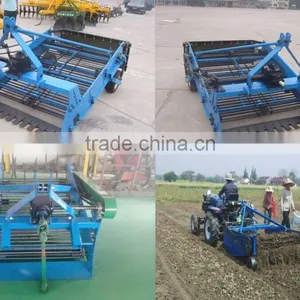

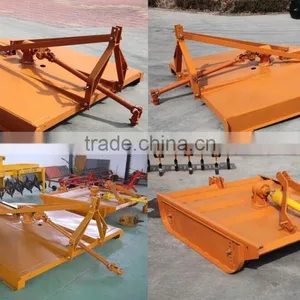

Quality existing products can and both at home and abroad the model handheld four round tractor supporting using, can is divided into tilling, and species, and received three big class and the perennial dedicated export products (products including: Disc harrow , disc plow , joint site preparation machine, plow , hydraulic flip plow, rotary tiller , potato harvester , potato planting machine, ditching machine , ridge machines, digging machines , motor graders, cut grass machines, spreaders, seeders , digging machines , trailers and other agricultural products)
Specifications

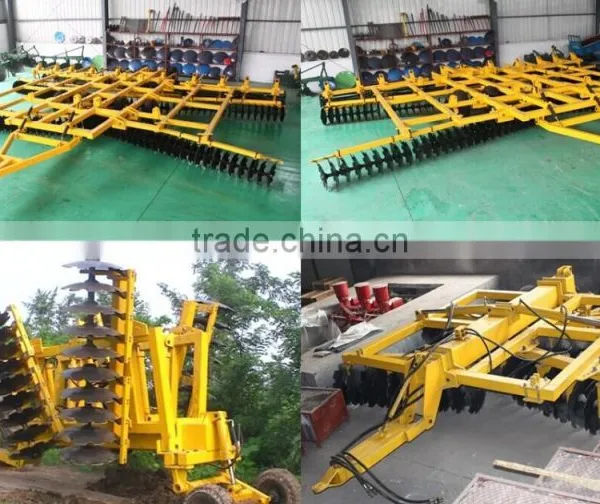

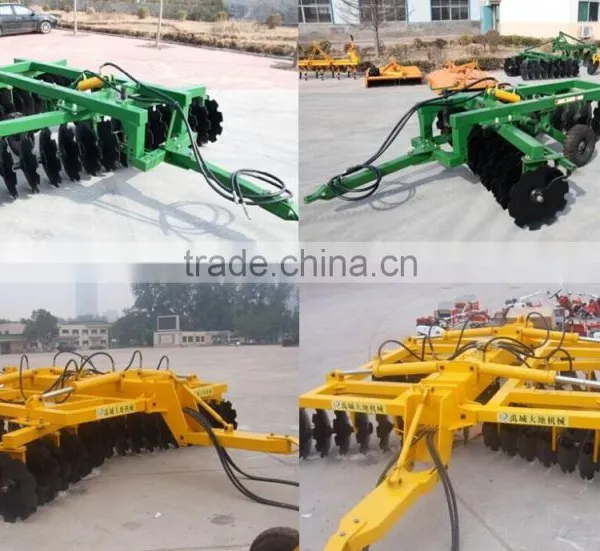

| Number | Product Name | Model | Overall size (mm) | Matched Power (Hp) | Weight (Kg) | Working width (M) | Working depth (mm) | Qty. of discs | Dia. Of disc (mm) | Thickness of disc (mm) |

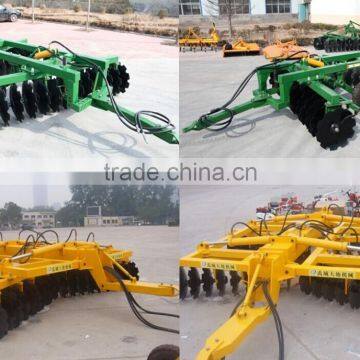

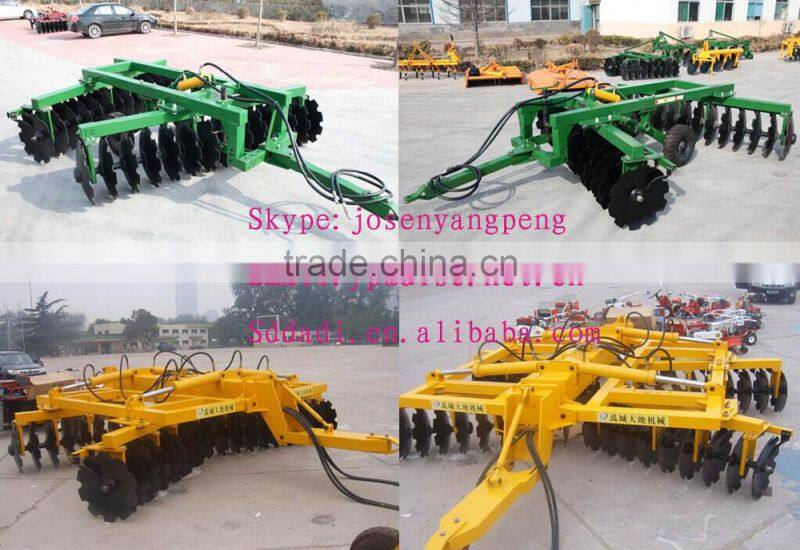

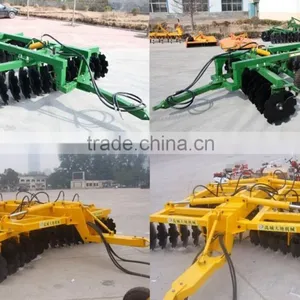

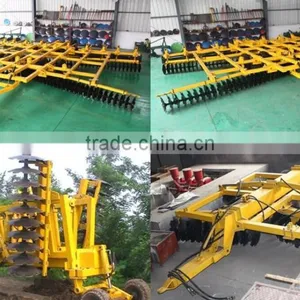

| Disc Harrow | ||||||||||
| 1 | 12Light Mounted Disc Harrow | 1BQX-1.1 | 1590*1230*830 | 12--25 | 200 | 1.1 | 80-140 | 12 | 460 | 3 |
| 2 | 14Light Mounted Disc Harrow | 1BQX-1.3 | 1590*1440*830 | 15-30 | 220 | 1.3 | 80-140 | 14 | 460 | 3 |
| 3 | 16Light Mounted Disc Harrow | 1BQX-1.5 | 1900*1600*1120 | 25-35 | 240 | 1.5 | 80-140 | 16 | 460 | 3 |
| 4 | 18Light Mounted Disc Harrow | 1BQX-1.7 | 1900*1820*1120 | 30-40 | 260 | 1.7 | 80-140 | 18 | 460 | 3 |
| 5 | 20Light Mounted Disc Harrow | 1BQX-1.9 | 2300*2000*1120 | 35-50 | 300 | 1.9 | 80-140 | 20 | 460 | 3 |
| 6 | 24Light Mounted Disc Harrow | 1BQX-2.3 | 2650*2450*1280 | 50-65 | 420 | 2.3 | 80-140 | 24 | 460 | 3 |
| 7 | 28Light Mounted Disc Harrow | 1BQX-2.7 | 2650*2750*1280 | 55-70 | 500 | 2.7 | 80-140 | 28 | 460 | 3 |
| 10 | 36Light hydraulic disc harrow | 1BQ-2.9 | 60-80 | 1053 | 2.9 | 80-140 | 36 | 460 | 3 | |
| 11 | 42Light hydraulic disc harrow | 1BQ-3.4 | 5360*5360*1050 | 65-100 | 1108 | 3.4 | 80-140 | 42 | 460 | 3 |
| 12 | 36Light hydraulic disc harrow | 1BQ-3.4A | 70-90 | 1075 | 3.4 | 80-140 | 36 | 460 | 3 | |
| 13 | 42Light hydraulic disc harrow | 1BQ-4.0A | 5360*5360*1050 | 80-100 | 1142 | 3.4 | 80-140 | 42 | 460 | 3 |
| 14 | 54Light hydraulic disc harrow | 1BQ-4.6 | 5820*4600*1050 | 80-120 | 1460 | 4.4 | 80-140 | 54 | 460 | 3 |
| 15 | 60Light hydraulic disc harrow | 1BQ-5.0 | 5820*5820*1050 | 90-120 | 1580 | 5.0 | 80-140 | 60 | 460 | 3 |
| 16 | 12Medium Mounted Disc Harrow | 1BJX-1.3 | 1590*1230*830 | 25-35 | 336 | 1.3 | 140-180 | 12 | 560 | 4 |
| 17 | 14Medium Mounted Disc Harrow | 1BJX-1.5 | 1590*1440*830 | 30-40 | 365 | 1.5 | 140-180 | 14 | 560 | 4 |
| 18 | 16Medium Mounted Disc Harrow | 1BJX-1.7 | 1960*1880*1317 | 45-55 | 400 | 1.7 | 140-180 | 16 | 560 | 4 |
| 19 | 18Medium Mounted Disc Harrow | 1BJX-2.0 | 1980*2240*1317 | 50-70 | 434 | 2.0 | 140-180 | 18 | 560 | 4 |
| 20 | 20Medium Mounted Disc Harrow | 1BJX-2.2 | 1980*2470*1317 | 55-70 | 470 | 2.2 | 140-180 | 20 | 560 | 4 |
| 21 | 22Medium Mounted Disc Harrow | 1BJX-2.4 | 2780*2570*1340 | 65-80 | 540 | 2.4 | 140-180 | 22 | 560 | 4 |
| 22 | 24Medium Mounted Disc Harrow | 1BJX-2.5 | 2970*2680*1460 | 72-90 | 650 | 2.5 | 140-180 | 24 | 560 | 4 |
| 23 | 28Medium Mounted Disc Harrow | 1BJX-3.0 | 2970*3100*1460 | 80-100 | 750 | 3.0 | 140-180 | 28 | 560 | 4 |
| 24 | 36Medium Hydraulic Disc Harrow | 1BJ-4.0A(1BQ | 80-100 | 1420 | 4.0 | 140-180 | 36 | 560 | 4 | |
| 25 | 36Medium Hydraulic wing Disc Harrow | 1BJ-4.0 | 80-100 | 1560 | 4.0 | 140-180 | 36 | 560 | 4 | |
| 26 | 40Medium Hydraulic wing Disc Harrow | 1BJ-4.4 | 5320*4800*1130 | 80-120 | 1750 | 4.4 | 140 | 40 | 560 | 4 |
| 27 | 48Medium Hydraulic wing Disc Harrow | 1BJ-5.3 | 5720*5720*1130 | 100-150 | 2150 | 5.3 | 140 | 48 | 560 | 4 |

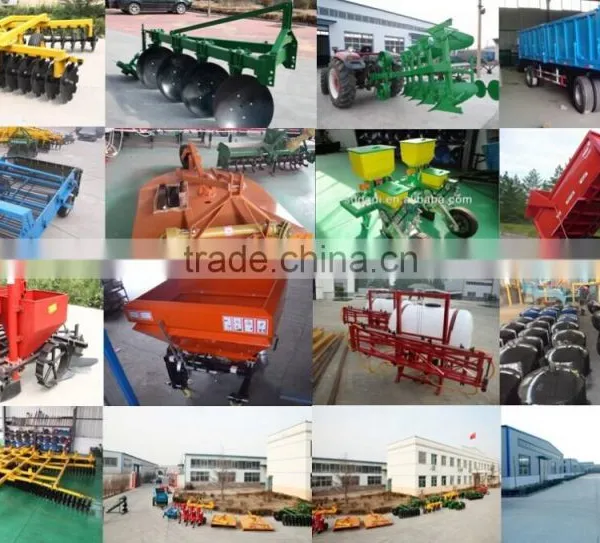

Product Show
Packaging & Shipping
Company Information
Our Services
1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
4.More information, please contact us
