Agricultural Tractors Trailers

Specifications

agricultural tractors trailers
Fixed load:3000-15000kg
Height of loading :1030-1300 mm
Matched Tractor power:20-120 hp

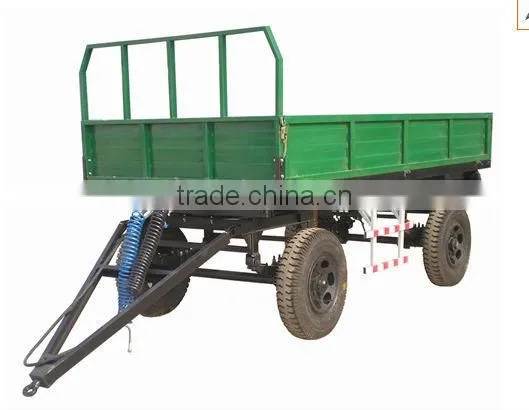

agricultural tractors trailers

7C(7CB) series trailer is suitable to be used for plain area,mountain area,swamp and hills,farmland and highway transportation etc,different area environment,trailers of different forms match the tractors of different types.



On basis of fundamental type,we have developed the hydraulic pressure self-discharging trailer,improved efficiency.The trailer that our company produced are composed of steel entirely,the appearance is exquisitely,artistic and unaffected,the structure is rational and compacted,sturdy and durable,be able to adjust the height,the machines are advantageous and reliable,they are good assistant of mountain area friends.



Main Specifications:

Type	7C-3.0	7C-4.0	7C-5.0	7C-6.0	7C-7.0	7C-9.0	7C-15
Fixed load (kg)	3000	4000	5000	6000	7000	9000	15000
Matched power  (kw)	four-wheel 18.3-36.7	four-wheel 22-36.7	four-wheel 36.7-53	four-wheel 36.7-59	four-wheel 36.7-59	four-wheel 36.7-66	four-wheel 47.7-88
Overall Dimension       L×W×H (cm)	418×168×208	500×200×210	560×210×228	580×210×228	600×210×228	650×220×238	800×230×252
Weight (kg)	1150	1350	1700	1950	2150	2300	3500
Volume (L)	2580	3330	4000	4500	5300	6800	10500
Height of loading (mm)	1030	1200	1300	1200	1200	1200	1300
Height of  traction (mm)	660	750	750	750	820	820	820
NO. of tyre	4	4	4	4	4	4	8
Distance between wheel (mm)	1380	1750	1880	1880	1880	1980	1980
Distance between axis (mm)	1640	1640	1640	1830	1830	1830	1830
Specification of  tyre	6.50-16-12	7.50-16-12	8.25-16-14	9.00-16-14	9.00-20-16	9.00-20-16	9.00-20-16
Form of braking	air or hydraulic braking		air braking or air cutting braking
